Use the following steps to mount the license

plate.

Before mounting the license plate, confirm that

the following parts are enclosed in the plastic

bag.

Only use the recommended mounting position,

otherwise Intelligent Cruise Control (ICC) sensor

obstruction (if so equipped) may result.

● License plate bracket

● J-nut × 2

● Screw × 2

● Screw grommet × 2

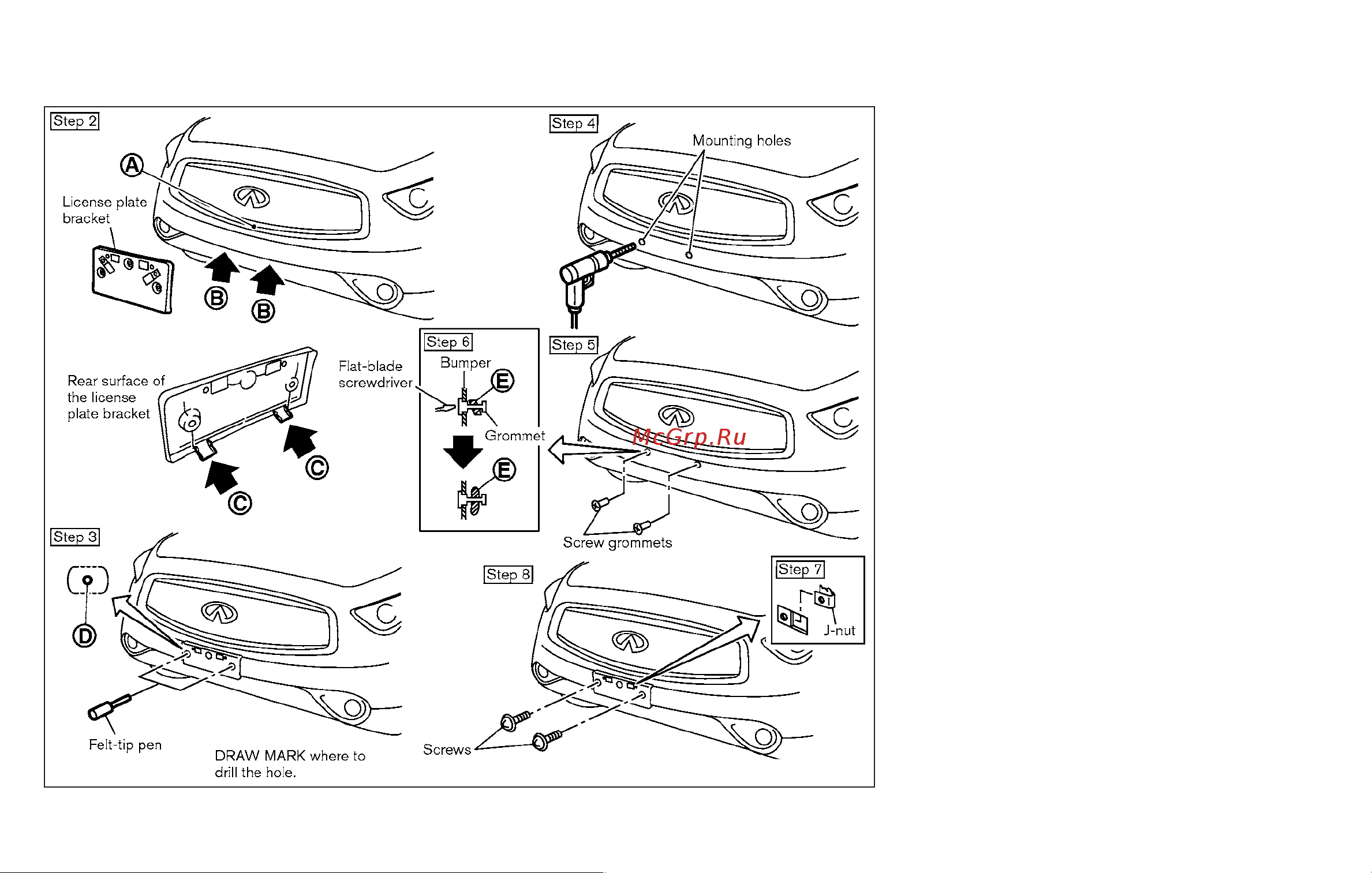

1. Park the vehicle on flat, level ground.

2. Locate the center position indicator

䊊

the lower part of the grille. Line up the

marks under the top of the front bumper

䊊

with the tabs

䊊

on the license plate

bracket. Hold the license plate bracket in

place.

3. Mark the center of the hole

䊊

with a

felt-tip pen.

4. Carefully drill two pilot holes using a 0.39

in (10 mm) drill bit at the marked loca-

tions. (Be sure that the drill only goes

through the bumper fascia.)

5. Insert grommets into the hole on the

fascia.

STI0585

INSTALLING FRONT LICENSE PLATE
