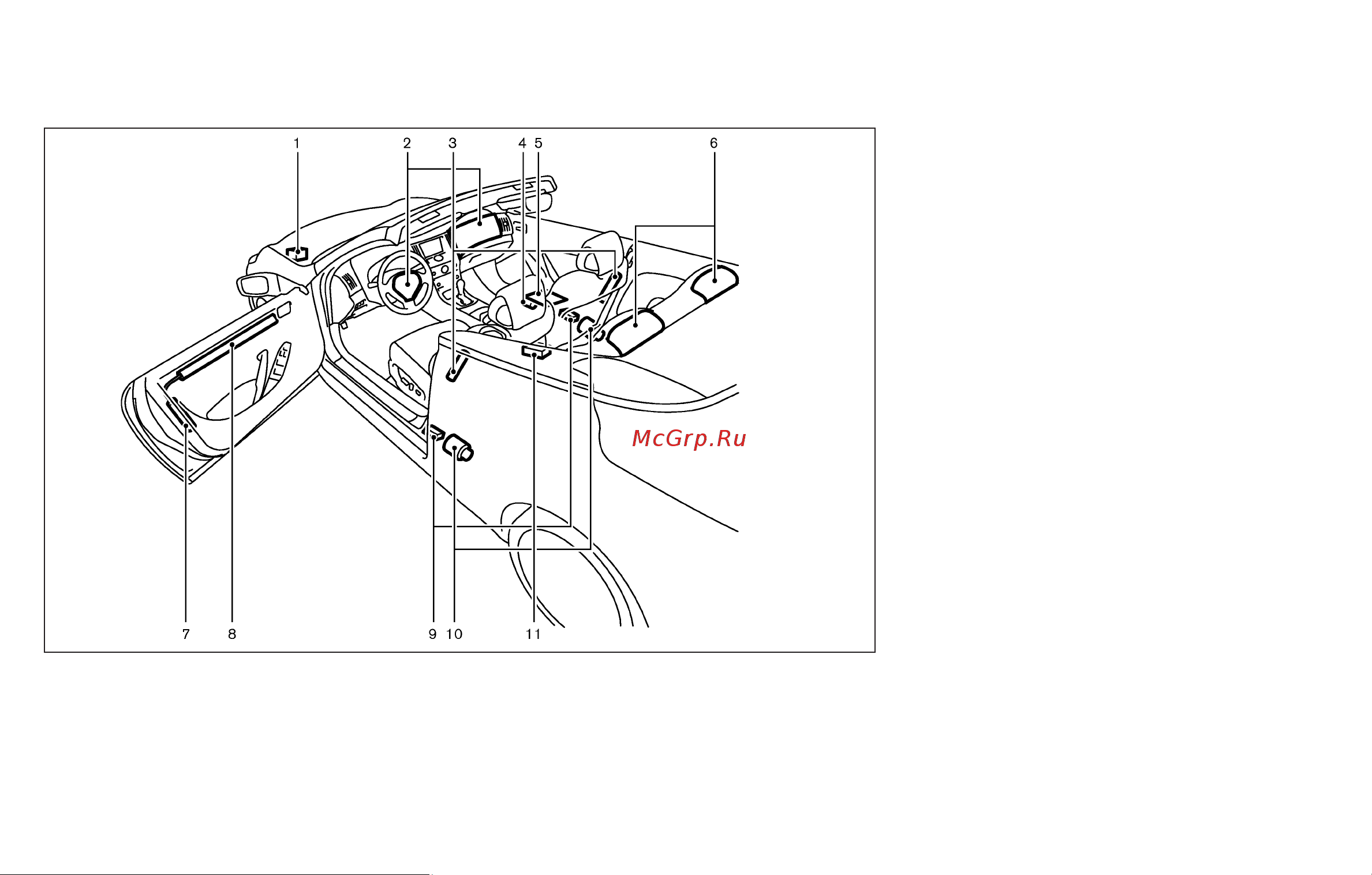

Infiniti G37 Convertible (2009) [57/427] Infiniti advanced air bag system front seats

1. Crash zone sensor

2. Supplemental front air bag modules

(INFINITI Advanced Air Bags)

3. Front seat-mounted side-impact

supplemental air bags

4. Occupant classification system control

unit

5. Occupant classification sensor

(pattern sensor)

6. Pop-up roll bars

7. Door-mounted curtain side-impact

supplemental air bag inflators

8. Door-mounted curtain side-impact

supplemental air bags

9. Satellite sensors

10. Seat belt with pretensioner

11. Air bag Control Unit (ACU)

INFINITI ADVANCED AIR BAG SYSTEM

(front seats)

This vehicle is equipped with the INFINITI Ad-

vanced Air Bag System for the driver and front

passenger seats. This system is designed to

meet certification requirements under U.S. regu-

lations. It is also permitted in Canada. However,

all of the information, cautions and warnings in

this manual still apply and must be followed.

The driver supplemental front-impact air bag is

located in the center of the steering wheel. The

front passenger supplemental front-impact air

bag is mounted in the instrument panel above

the glove box. The front air bags are designed

to inflate in higher severity frontal collisions,

although they may inflate if the forces in an-

other type of collision are similar to those of a

higher severity frontal impact. They may not

inflate in certain frontal collisions. Vehicle dam-

age (or lack of it) is not always an indication of

proper front air bag operation.

SSS0934
