• Optimised C/V ratio, radial performance
The capacitor winding is encased in aluminium can, sealed with polymer rubber/phenol paper deck
supplied with pin tag termination. Safety vent on the aluminium case. The capacitor is supplied with
plastic sleeve insulation.
Copper plated aluminum can for shielding or aluminum can with colored and insulating oxide layer for
avoiding plastic insulation for better sound quality, are optional
.
The capacitors are designed to be mounted by their termination alone. Fixing accessories are not
necessary. The capacitors can be delivered with an asymmetrical and a symmetrical pin configuration.

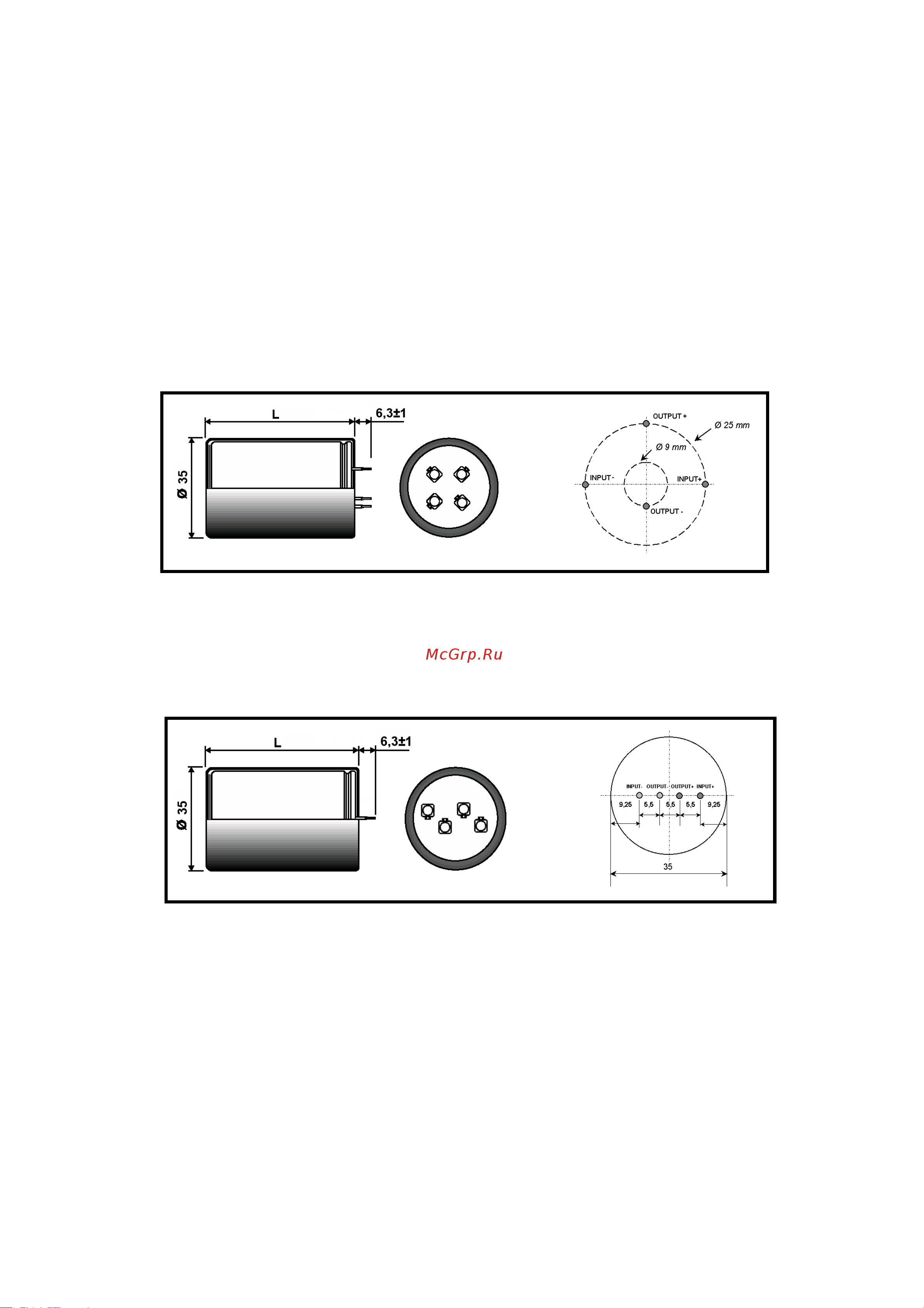

Capacitor outline for asymmetrical pin configuration version:
For printed circuit the 4 pinholes must be of Ø1.3±0.1 mm on circles of Ø 25 and 9 mm.
The negative terminals are marked on the rivets.
Capacitor outline for symmetrical pin configuration version:
For printed circuits the 4 pin holes are Ø1.3±0.1 mm. For capacitors with length of 70 mm this pin
configuration is not available. The negative terminals are marked on the rivets.
The dimensions and the main electrical features are listed in the below data-table.
