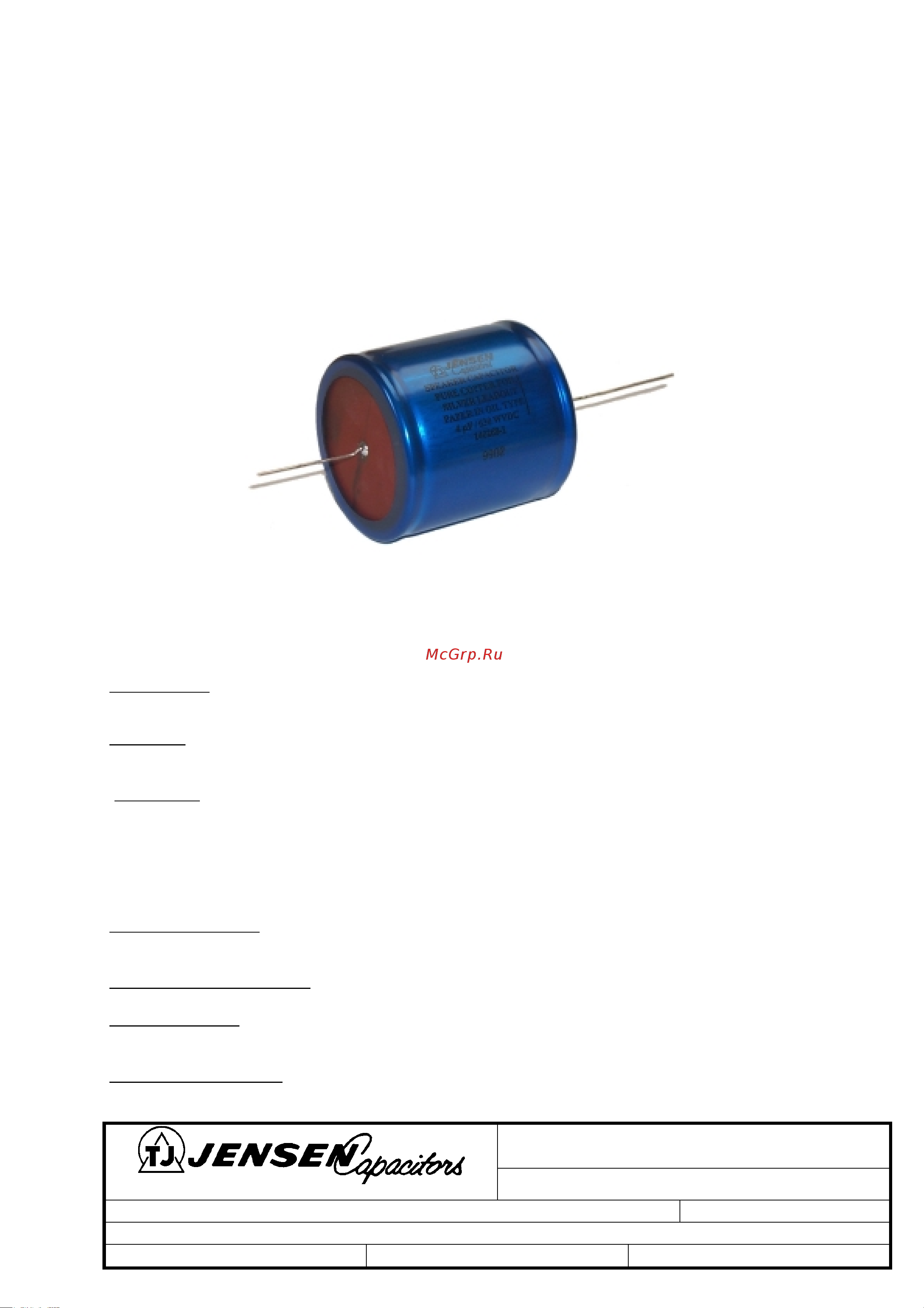

SPEAKER CAPACITORS FOR LOUDSPEAKER CROSSOVER
FILTERS
We offer two different constructions in this product group.
Metal foil, paper-in-oil capacitors for top performance and ultimative sound quality with aluminium, tin
or copper foil.
Cost effective oil impregnated metallized paper capacitors for higher capacitances in less space.
Metal foil, mineral oil impregnated, kraft paper axial performance speaker
capacitor
Rated voltage:
Max. 200 VDC
Electrodes: Aluminium (as standard) tin, copper or silver foil,
extended foil construction.
Construction
: Axial performance, hermetically sealed in aluminium tube. The terminal
leads – available in tinned copper or pure silver – are solder-sealed to
eyelets in the end-discs.
The capacitor element is insulated from the tube.
The capacitors are supplied with an insulation sleeve, but in applications
where the sleeve distorts the sound we can deliver without sleeve.
Capacitance tolerance
: -10/+20%
10% tolerance, special tolerances and matching are available on request.
Operating temperature range
: -40/+85°C
Max. ripple voltage
: The sum of the peak ripple voltage and the applied DC voltage
should not exceed the DC rating of the capacitor.
Power factor (loss factor)
: tg δ < 0.008 at 1 kHz
Industrivej 4. DK-2605 Broendby Denmark
Phone: +45 43271685 Fax: +45 43271699
www.jensencapacitors.com audio@jensencapacitors.com
Drawing no.: 101-12222
Page 1 of 3
Description: Speaker capacitors
Rev.: 1 Date: 29.05.00
Approved: JJ
