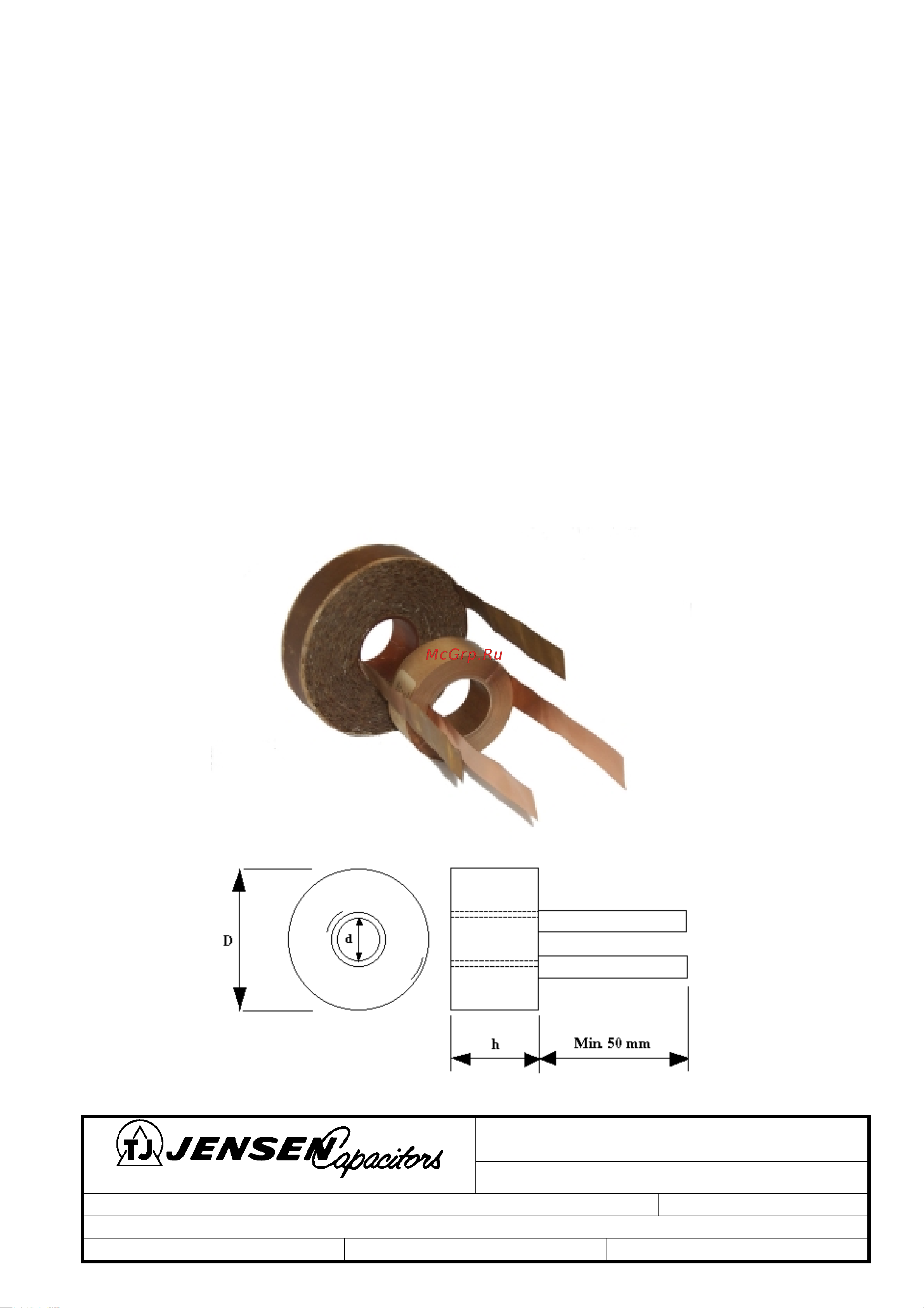

HIGH PURITY COPPER FOIL AND PAPER WOUND, WAX
IMPREGNATED AIR-CORE INDUCTOR FOR LOUDSPEAKER
CROSSOVER NETWORKS
Unlike other brands, Jensen foil wound inductors don’t contain plastic, only natural materials, providing
particular sonic benefits.
The high purity, oxygen free and very thick copper foil is wound onto a phenolic paper tube.
The dielectric is very thin (20 µm) high-density special paper impregnated with pure mineral wax.
The manufacturing process, during which the inductors have been wound with a high and fully controlled
winding tension, dried and impregnated under high vacuum, ensures a uniform and unique sonic quality.
Due to the thickness of the copper foil the inductors have an extremely low resistance resulting in
reduced power loss and high current capability. Two cross-section inductors are available; 12 AWG for no
compromising low resistances and 14 AWG for low resistance for affordable price.
Negligible skin effect and flat inductive reactance from 20 Hz to 300 kHz.
The lead-outs of the inductors are folded of the copper foil in the winding itself, eliminating the need of
welding or soldering, which are usually sources of undesired harmonic and phase distortions.
The most transparent inductor made up to now, rapidly becoming the inductor of choice in high end
speaker systems.
Industrivej 4. DK-2605 Broendby Denmark
Phone: +45 43271685 Fax: +45 43271699
www.jensencapacitors.com audio@jensencapacitors.com
Drawing no.: 103-11289 Page 1 of 2
Description: Air-core inductor
Rev.: 4 Date: 18.05.2000. Approved: JJ
