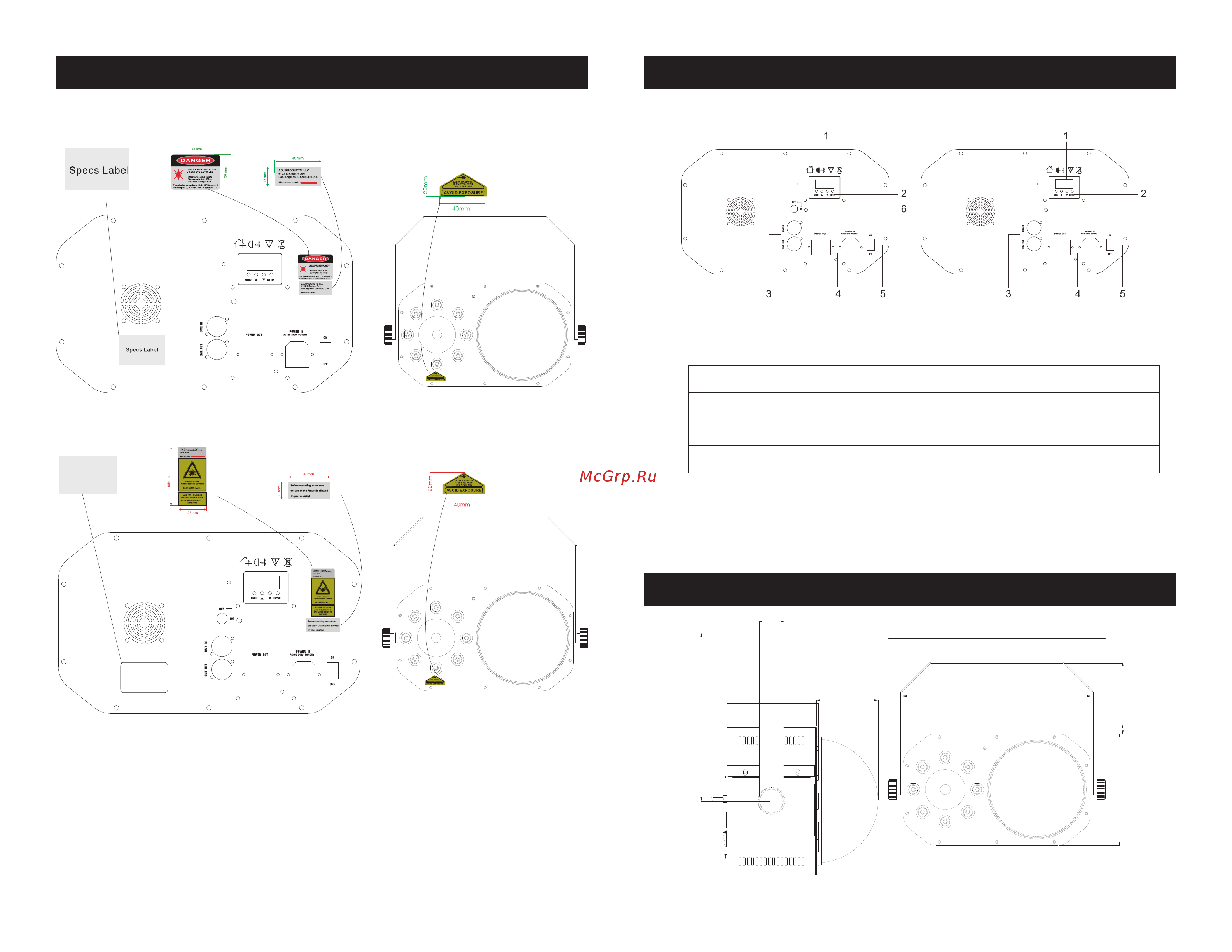

ADJ Products, LLC - www.adj.com - Stinger Star Instruction Manual Page 10
ADJ Products, LLC - www.adj.com - Stinger Star Instruction Manual Page 11
Stinger Star Laser Warning Labels
Specs Label
Specs Label
US Version
Europe Version
Stinger Star Rear Layout
European Version: American Version:
1. Function Display: Used to show the various menus and the selected functions.
2. Button:
MENU
To select the programming functions
UP
To go forward in the selected functions
DOWN
To go backward in the selected functions
ENTER
To conrm the selected functions
3. DMX IN/OUT: For DMX512 links, use 3-pin XLR plug cable to link the unit together;
4. POWER IN/OUT: Used to connect to supply power;
5. Power Switch: On/ O power;
6. Key for Laser: To turn on/o the laser Led. (Only for EU version)
Stinger Star CAD Drawing
35.01mm/1.37”
88.25mm/3.47”
131.2mm/5.16”
240mm/9.44”
350mm/13.77”
132.5mm/5.21”
210mm/8.26”
409mm/16.10”
