Studiophile BX8a Deluxe

English

‣ 5

Connecting to Preamp or Computer

Outputs

Before connecting, make sure the output device’s power has been turned off. Plug the XLR balanced,

TRS balanced or TS unbalanced cable to the corresponding output connectors of a pre-ampliﬁer,

computer or game console.

Placing the BX8a Deluxe

Placing the speakers is one of the most important procedures in order to monitor sound accurately. To

monitor with the BX8a’s performing to their maximum capability, an appropriate listening environment

and correct placement are required. Please refer to the following for correct BX8a placement.

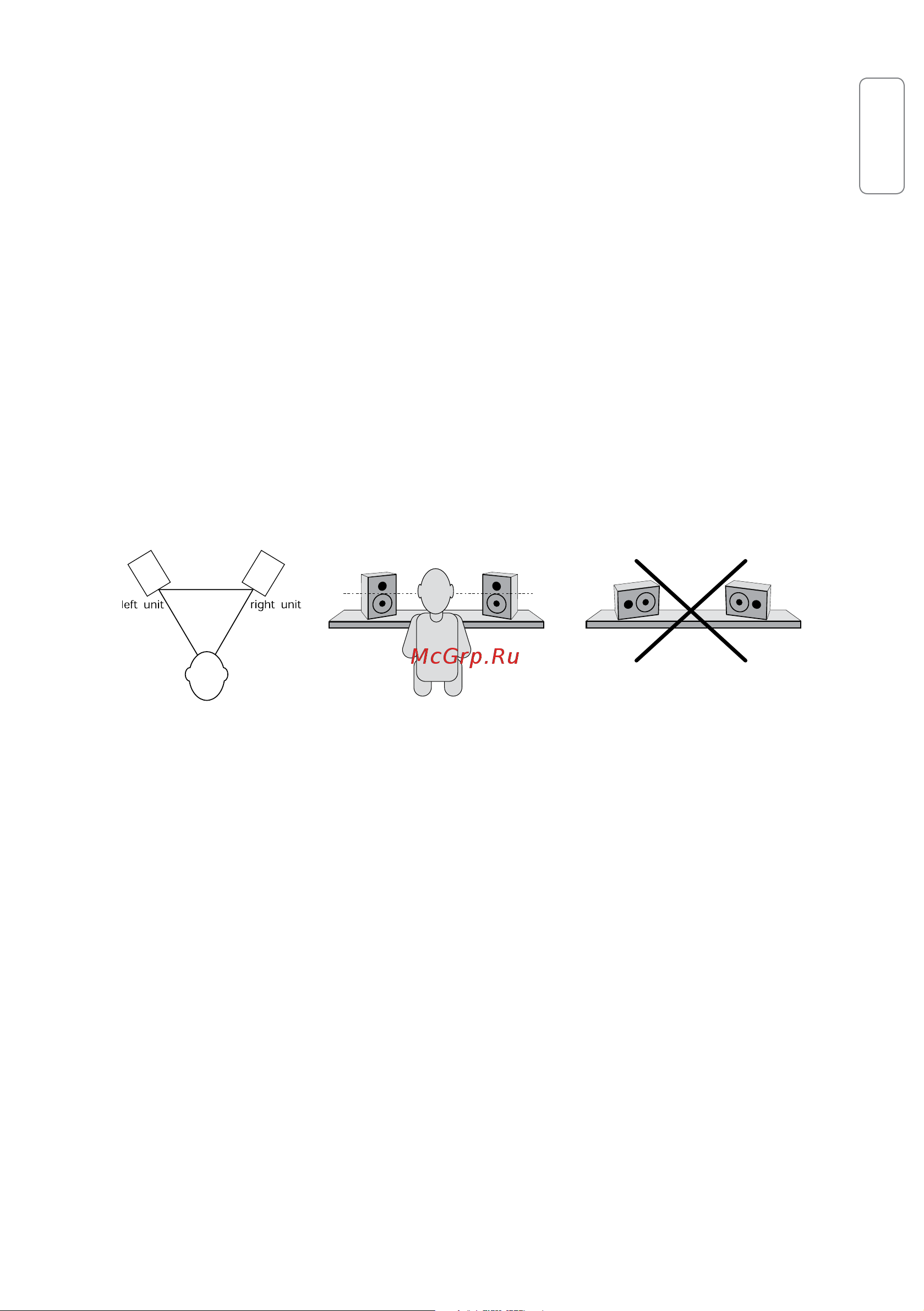

1. The two units and the listener should basically align to form a regular triangle. Refer to the

following diagram.

2. Position the monitors so that the top of the woofers are level with your ears in a normal listening

environment. Refer to the following diagram.

3. Place the BX8a’s vertically with the woofer on the bottom. Placing the BX8a’s horizontally is

not recommended.

Remarks: DO NOT place any obstacles that may block the ﬂow of air in front or between the

monitors. Also remove reﬂective materials such as glass, mirrors or metal from the monitoring

environment. PLACE THOSE MATERIALS AWAY FROM THE PATH OF THE SOUND FROM

THE BX8a’s.

Warranty

Warranty Terms

M-Audio warrants products to be free from defects in materials and workmanship, under normal use

and provided that the product is owned by the original, registered user.

Visit www.m-audio.com/warranty for terms and limitations applying to your speciﬁc product.

Warranty Registration

Immediately registering your new M-Audio product entitles you to full warranty coverage and helps

M-Audio develop and manufacture the ﬁnest quality products available. Register online at

www.m-audio.com/register to receive FREE product updates and for the chance to win M-Audio

giveaways.
