5
English
8. When the machine is not use, the power source should
be disconnected.
9. Be sure to switch OFF and disconnect the attachment
plug from the receptacle to avoid a serious accident
before the depressed center wheel is assembling and
disassembling.
10. RCD
The use of a residual current device with a rated residual
current of 30 mA or less at all times is recommended.

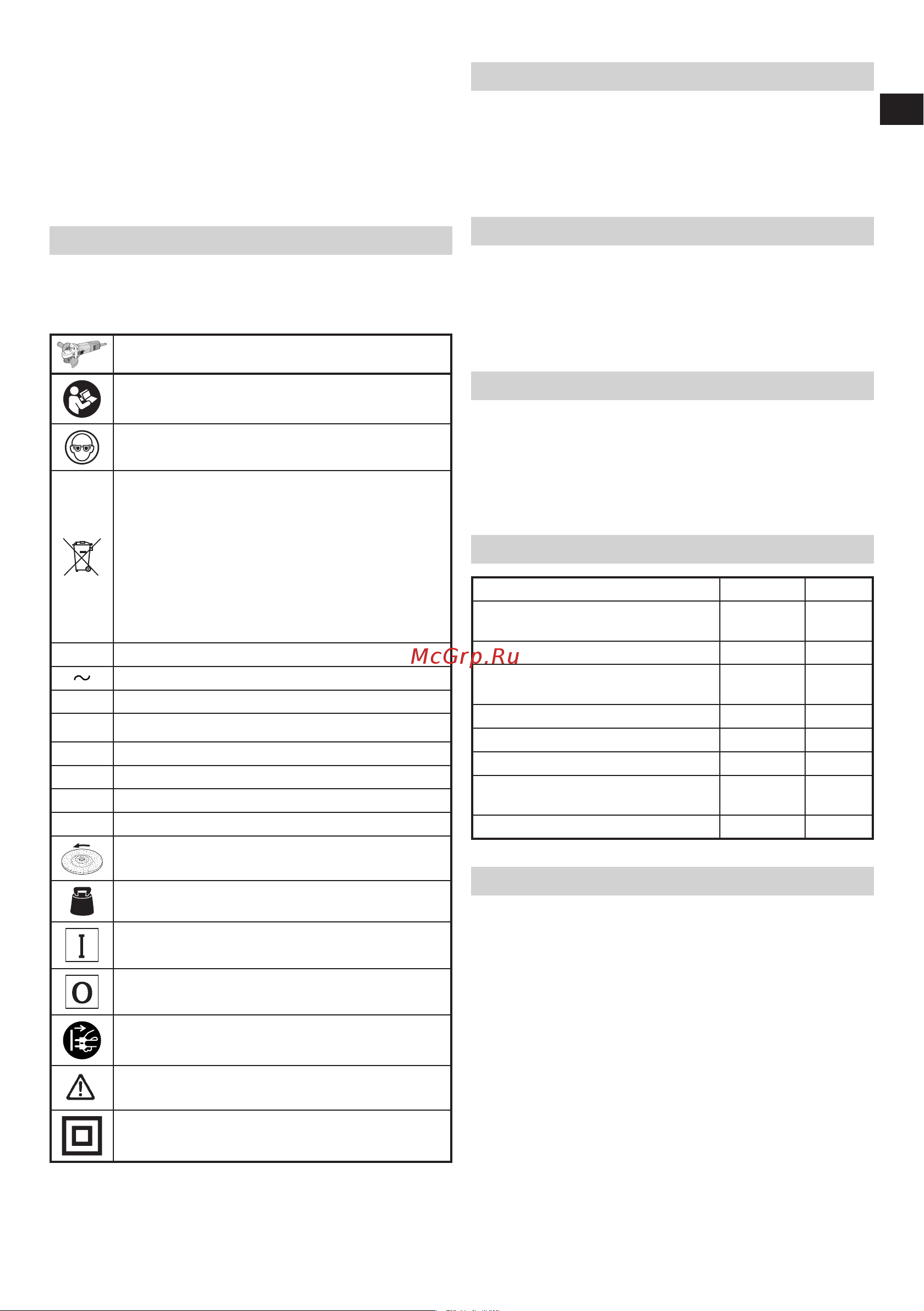

SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
G10SR4 / G12SR4 / G13SR4: Disc Grinder
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2012/19/
EU on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
V Rated voltage
Alternating current
P
Power input
n
Rated speed
min
-1
Revolution or reciprocations per minute
D Wheel outer diameter
d Wheel hole diameter
t Wheel thickness
Peripheral speed
kg
Weight
(According to EPTA-Procedure 01/2003)
Switching ON
Switching OFF
Disconnect mains plug from electrical outlet
Warning
Class II tool
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package
contains the accessories listed in the below.
(1) Wrench .........................................................................1
(2) Side handle ...................................................................1
Standard accessories are subject to change without notice.
APPLICATIONS
○ Removal of casting fi n and fi nishing of various types of
steel, bronze and aluminum materials and castings.
○ Grinding of welded sections or sections cut by means of
a cutting torch.
○ Cutting of synthetic concrete, stone, brick, marble, and
similar materials.
SPECIFICATIONS
The specifi cations of this machine are listed in the Table on
page 20.
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.
MOUNTING AND OPERATION
Action Figure Page
Fitting and adjusting the wheel
guard
121
Fixing the side handle 2 21
Assembling depressed center
wheel
322
Assembling cutting wheel 4 22
Assembling diamond wheel 5 22
Switch operation 6 22
Grinding angle and grinding
method
723
Selecting accessories ― 24
MAINTENANCE AND INSPECTION
1. Inspecting the depressed center wheel
Ensure that the depressed center wheel is free of cracks
and surface defects.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that
they are properly tightened. Should any of the screws be
loose, retighten them immediately. Failure to do so could
result in serious hazard.
3. Inspecting the carbon brushes
For your continued safety and electrical shock protection,
carbon brush inspection and replacement on this tool
should ONLY be performed by a HiKOKI AUTHORIZED
SERVICE CENTER.
4. Replacing supply cord
If the replacement of the supply cord is necessary, it
has to be done by HiKOKI Authorized Service Center to
avoid a safety hazard.
0000BookG10SR4UkrRus.indb50000BookG10SR4UkrRus.indb5 2019/07/0111:00:212019/07/0111:00:21
