REMOVING THE DOOR FROM OVEN (OPTIONAL)

Removable door allows full access

to entire interior of the oven for easier

and quicker maintenance.

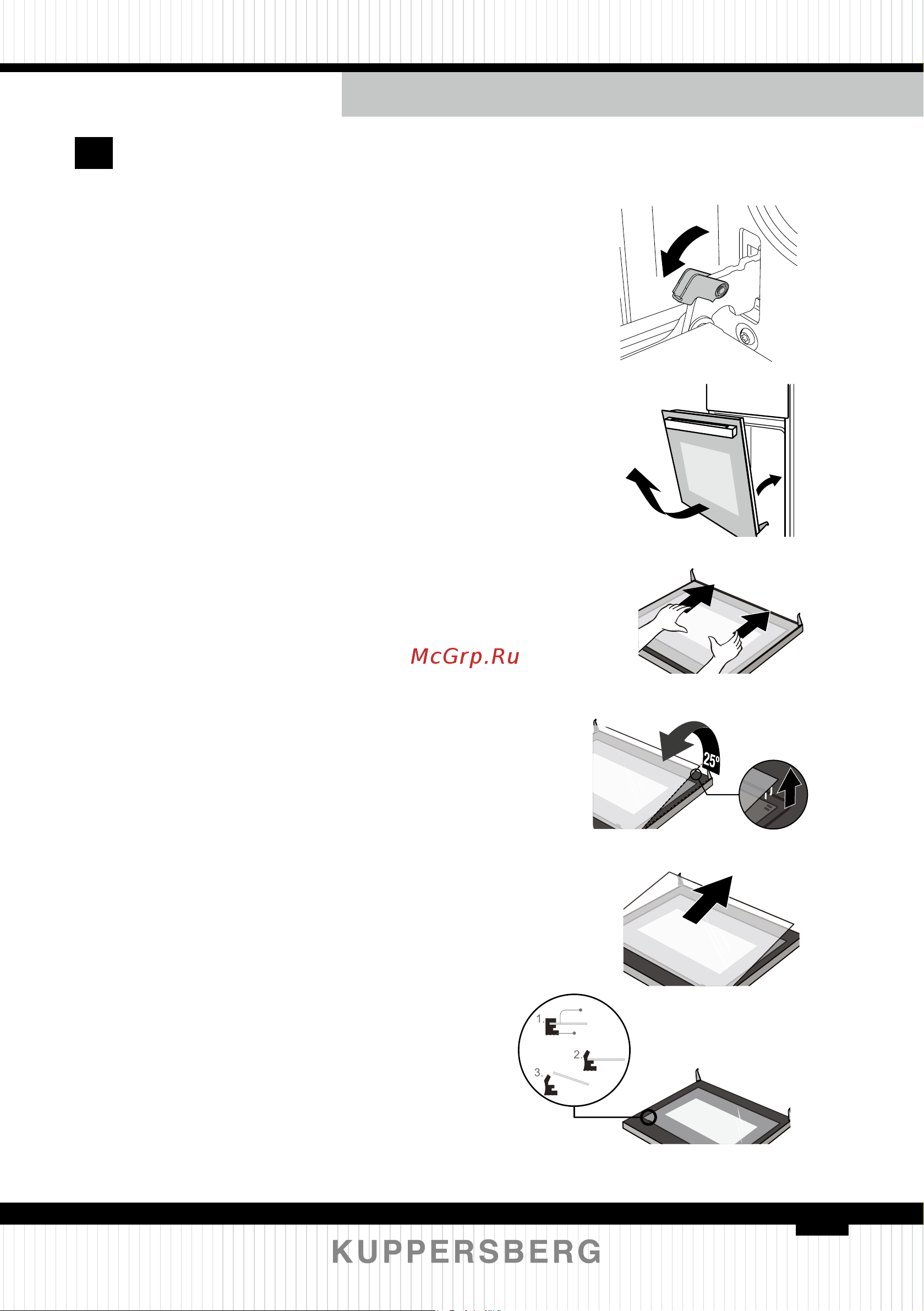

1. To remove the door, open the

door to the maximum angle.

Then pull the buckle at the door

hinge backward. (Figure 1)

2. Close the door to an angle ap-

proximately 15°. Lift up and slowly pull

the door out from the oven. (Figure 2)

3. Place the door atwise with door

top cover towards yourself, put your

hands on the glass and pull it towards

the oven. (Figure 3)

4. Separate the glass carefully by

lifting it approximately 25°. (Figure 4)

5. Push the glass into the position

indicated by the arrow in Figure 5. Gen-

tly pull the glass out of the socket.

6. After pulling out the inner glass,

please take out the middle layer glass

as shown in Figure 6.

7. When cleaning is completed, re-

verse the above procedures to return

the door to its original position.

15˚

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Glass

Rubber
