REMOVING THE DOOR FROM OVEN (OPTIONAL) TYPE-2

Disassembly of oven door compo-

nents

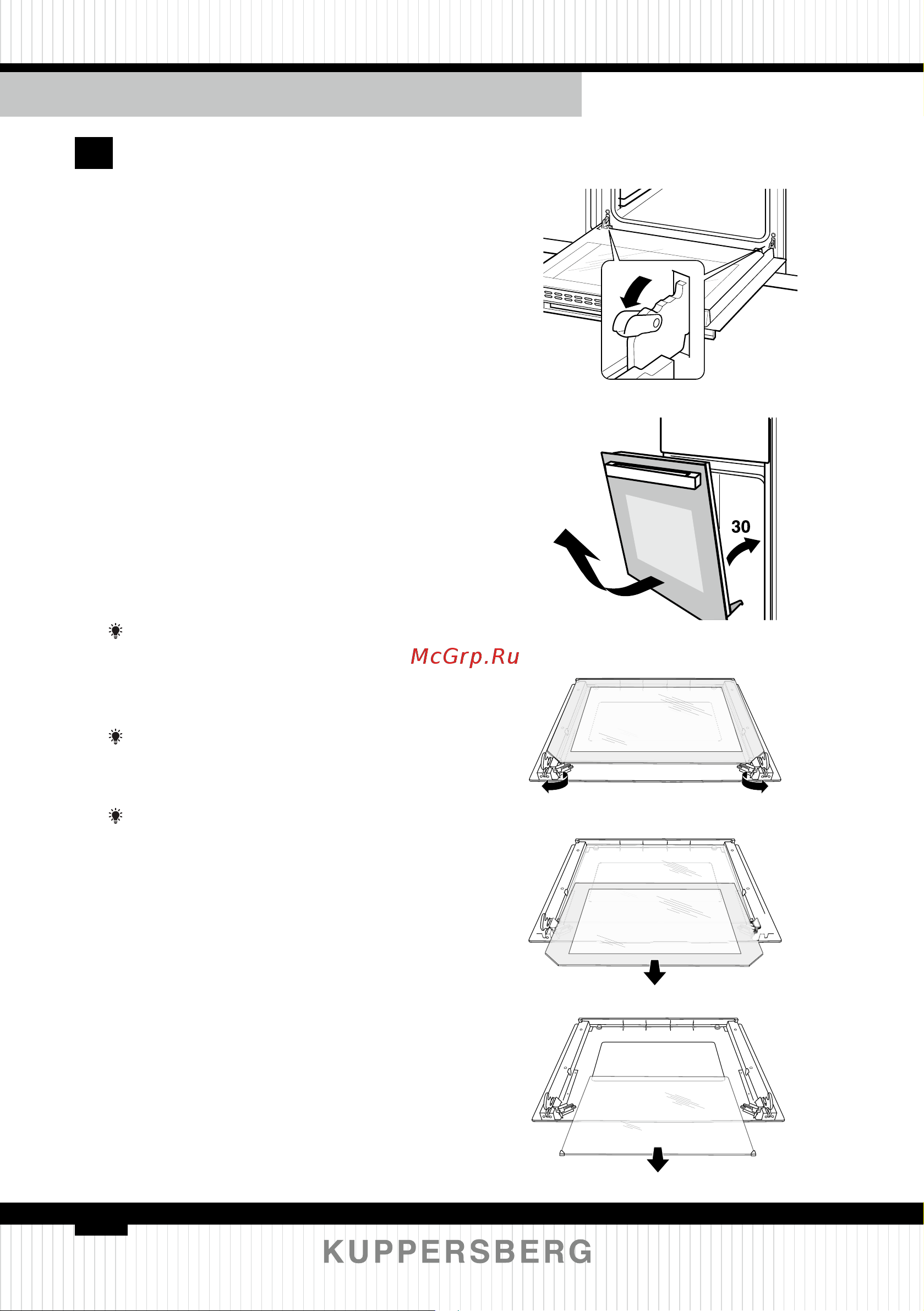

1. To remove the door, open the

door to the maximum angle.Then pull

the buckle at the door hinge backward.

2. Close the door to an angle ap-

proximately 30°. Hold the door with one

hand on each side.

Lift up and slowly pull the door out

from the oven.

3. Open the door rotation bracket

assembly, refer the action in the follow-

ing picture.

4. Lift up the door outer glass and

pull it out, then take the door middle

glass out in the same way.

WARNING:

Don’t pull the door forcibly and pre-

vent the glass breakage during the dis-

mantling process.

WARNING:

Note that the hinge springs could

loose and cause personal injury.

WARNING:

Do not lift or carry the oven door by

the door handle.
