8 BM series

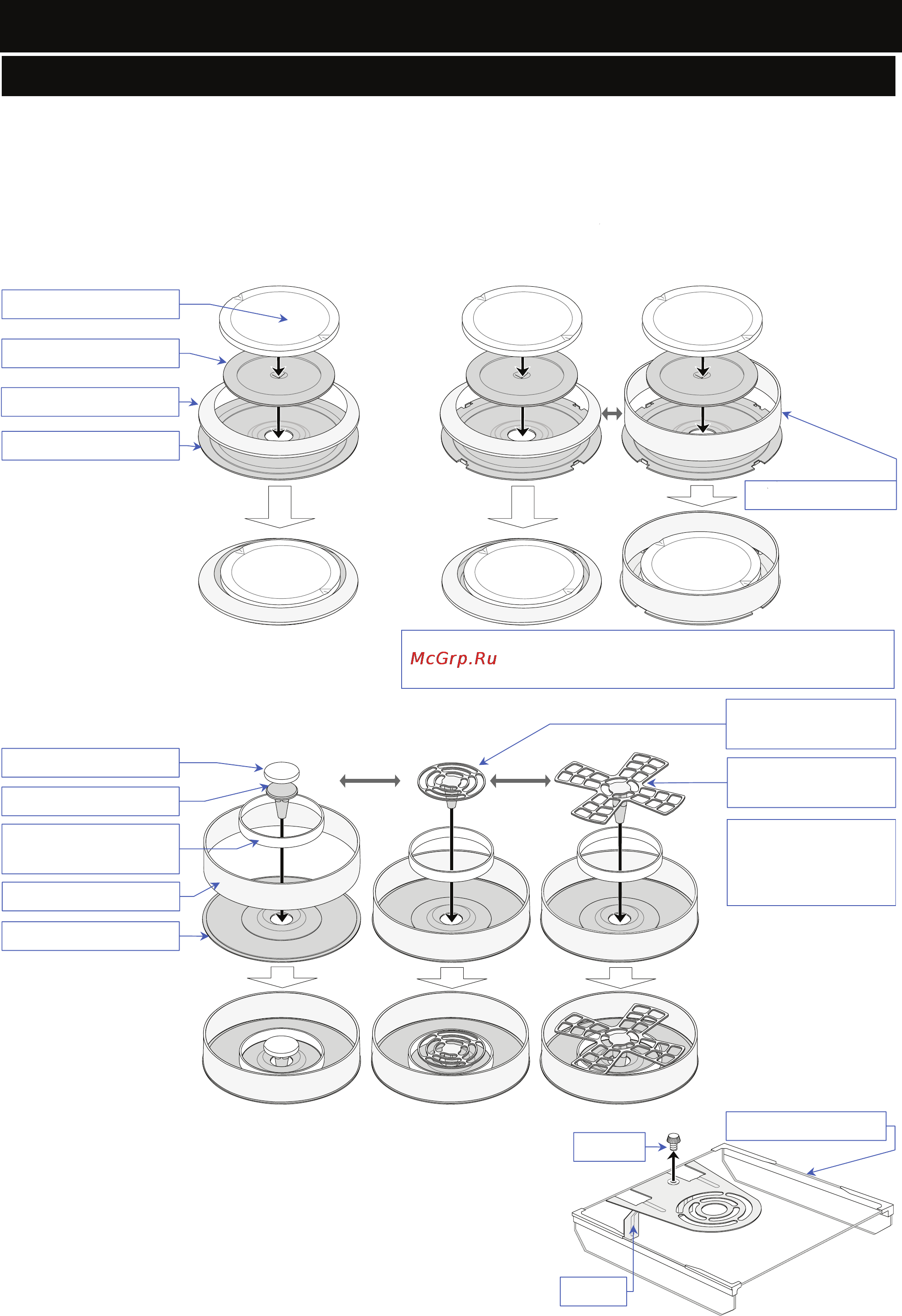

3. Installing The Balance And Precautions
3.1. Installing The Balance
Step
1 Refer to "3.2. Cautions Before Use (Environmental Condition And Preparations)"
concerning the place to install the balance. Place the balance on a firm weighing table.
Step
2 Assemble the weighing pan and other parts in the weighing chamber, in accordance with the
product type and use.
BM-500, BM-300, BM-200 BM-252
BM-22, BM-20
Step
3 If the separation plate is not necessary, remove
the screw and take it off. Refer to next page
"The Separation Plate".
Step
4 Adjust the level of the balance using the leveling feet.
Step
5 Confirm that the AC adaptor type is correct for your
local voltage and power receptacle type.
Fine range ring
Weighing pan
Breeze break ring
Dust plate
Use the fine range ring to avoid errors caused by drafts
when weighing with a minimum display of 0.01 mg.
Pan support
Pan support
Weighing pan
Small fine
range ring
Dust plate
Fine range ring
Large weighing
pan for filter
Small weighing
pan for filter
Choose the
weighing pan to
adapt to the filter
Screw
Hoo
k
Separation plate
