Инструкция по эксплуатации Страница: 39

And ВМ-500 [39/88] Setting example

BM series 37

Weighing mode

Start

Class

Finish

Weighing mode

Item

"Data memory"

Paramete

"Stores weighing data"

Paramete

"1 minute"

Item

"Interval time"

Step 1

Press and hold

Step 2

Press several times

Step 3

Step 4

Press several times

Step 4

Step

Press 2 time

Step 6

Step 7

Step

Press 5 time

Setting Example

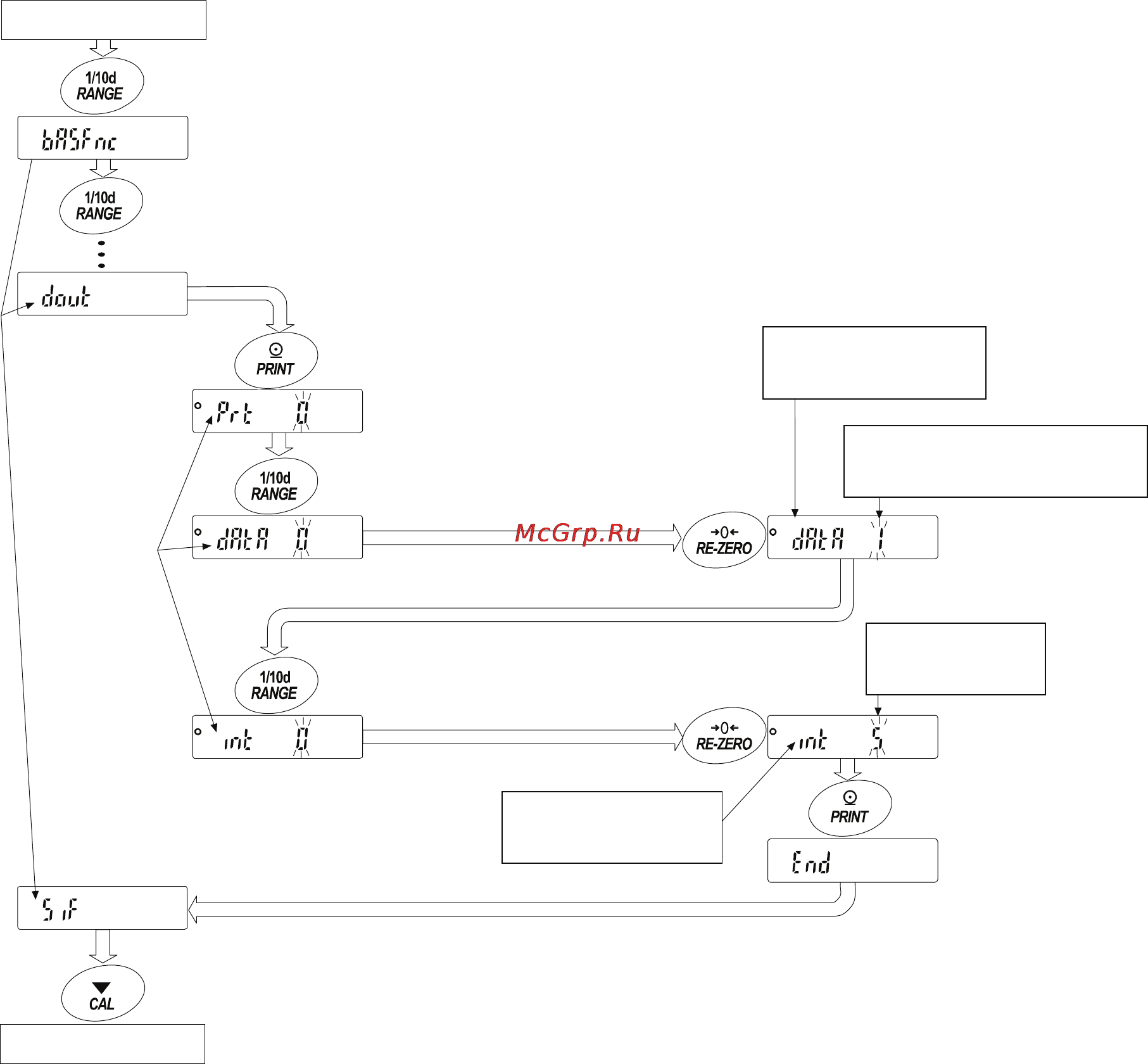

This example sets "Stores weighing data" for "Data memory" and "1 minute" for "Interval time".
