42 BM series
Stream mode
The balance outputs the weighing data continuously regardless of the display condition. When the
display refresh rate is set to 5 times / second (5pd 0), the data output rate is also set to the same
5 times / second. The display does not blink in this mode. The interval memory mode is used
when the "Data memory (data)" parameter is set to "1" (to store the weighing data).
Example For monitoring data on a computer.
Required setting dout prt 3 Stream mode
dout data 0 Data memory function is not used
ba5fnc 5pd Display refresh rate
5if bp5 Baud rate
Caution The balance may not transmit the data completely at the specified refresh rate,
depending on the baud rate or data added to the weighing data such as time, date
and ID number.
Interval mode
The weighing data is periodically stored in memory.
Example For periodical weighing without a personal computer command and to
output all of the data, to a computer, at one time.
Required setting dout prt 3 Interval mode
dout data 2 Data memory function is used
dout int Interval time
10.5. Description Of The Item "Data Format"
A&D standard format 5if type 0
This format is used when the peripheral equipment can receive the A&D format.
If an AD-8121B is used, set the printer to MODE 1 or 2.
This format consists of fifteen or sixteen characters excluding the terminator.
When numerical characters without a decimal point exceed eight characters for the BM-20, BM-22
and BM-252, the format becomes sixteen characters.
A header of two characters indicates the balance condition.
The polarity sign is placed before the data with the leading zeros. If the data is zero, the plus sign
is applied.
The unit, consisting of three characters, follows the data.

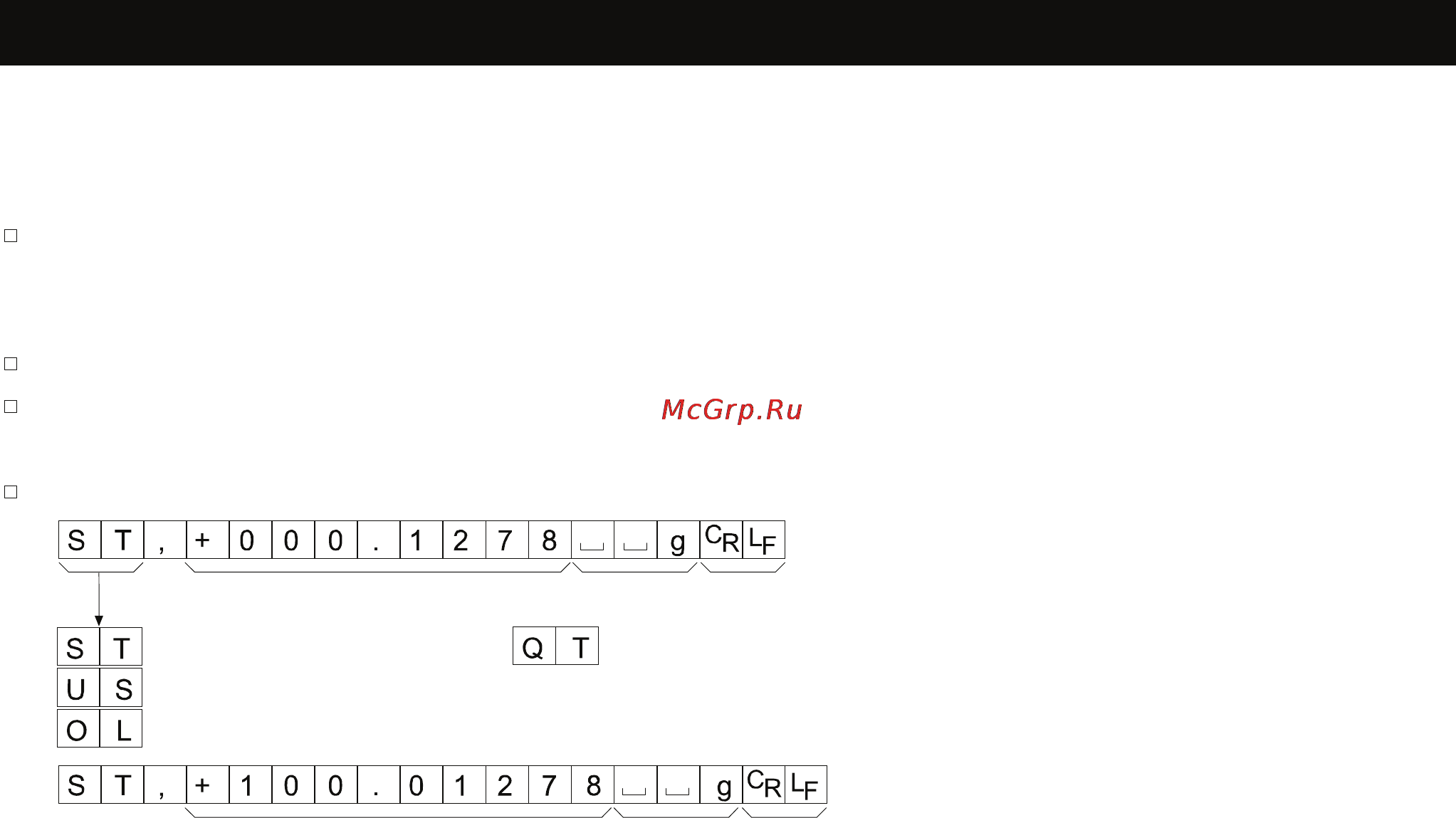

Header Data Unit Terminator
Stable header Stable header of counting mode
Unstable header
Overload header
Header Data Unit Terminator
