And ВМ-500 [73/88] Setting a negative target value and filling with a sample until the display becomes zero

BM series 71

Setting a negative target value and filling with a sample until the display

becomes zero

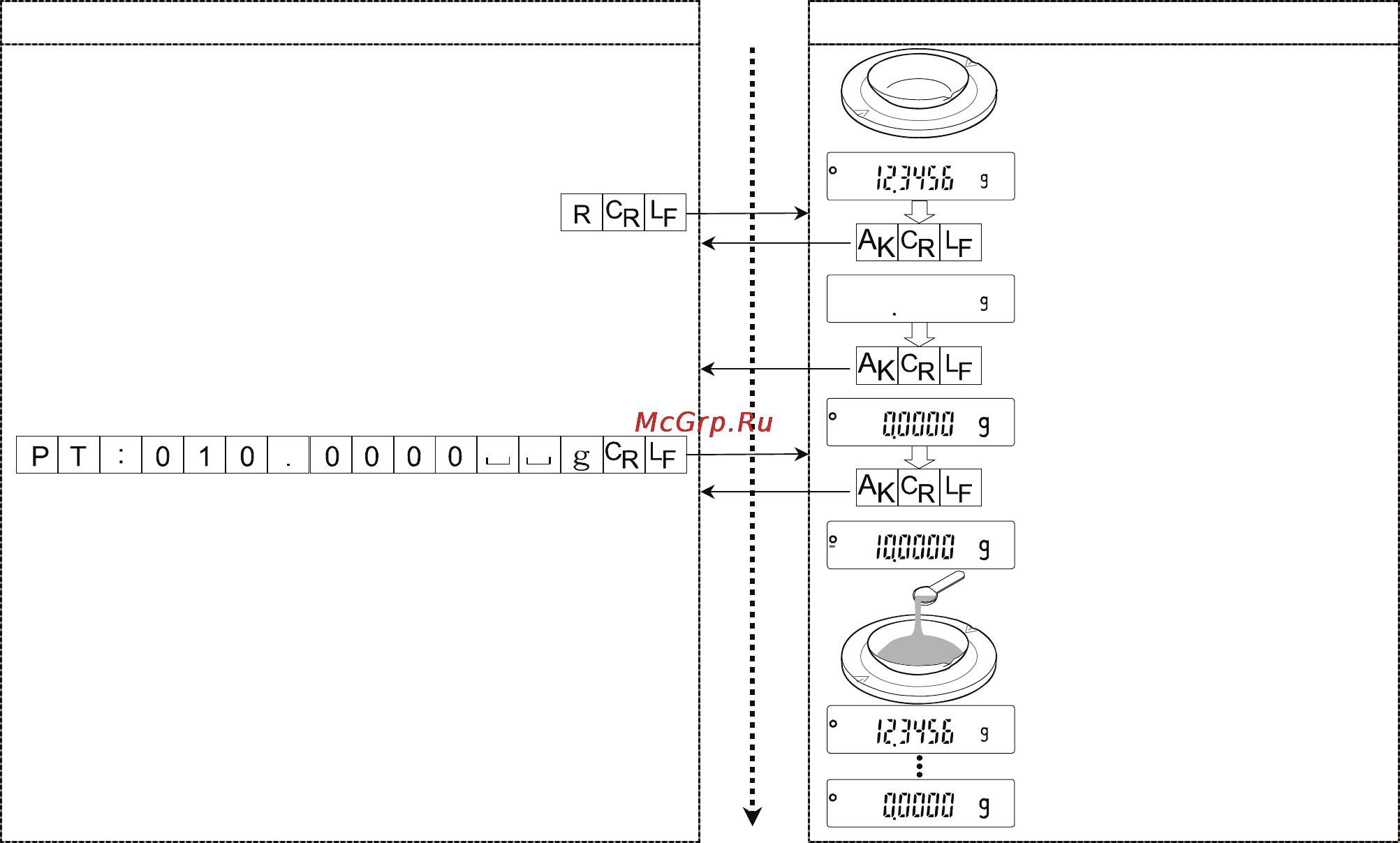

This example uses "erCd on" of "5if" so that the <AK> (06h) code is output.

Computer Time Balance

R command

PT: command to set a target weight of 10 g

Place a container

Before command

execution

Command received

In process

Command completed

Zero display

Command received

Target weight display

Fill with sample until the

display becomes zero
