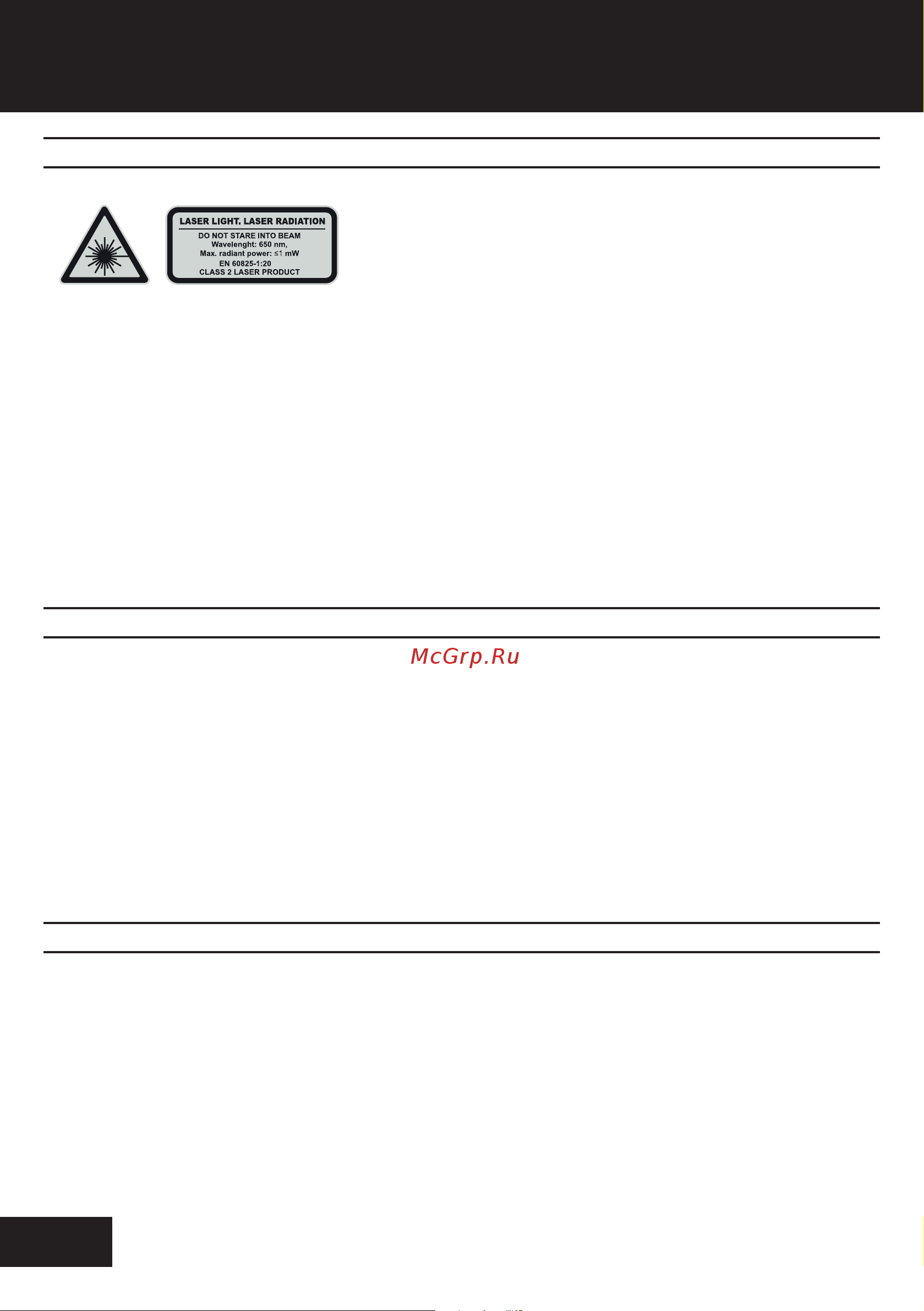

These lasers do not normally present an optical hazard,

although staring at the beam may cause ash blindness.

WARNING: Do not stare directly at the laser beam. A

hazard may exist if you deliberately stare into the beam.

• The laser shall be used and maintained in accordance with the manufacturer’s

instructions.

• Never aim the beam at any person or an object other than the work piece.

• The laser beam shall not be deliberately aimed at personnel and shall be prevented

from being directed towards the eye of a person.

• Always ensure the laser beam is aimed at a sturdy work piece without reective

surfaces i.e. wood or rough coated surfaces are acceptable. Bright shiny reective sheet

steel or the like is not suitable for laser use as the reective surface could direct the

beam back at the operator.

• Do not change the laser light assembly with a dierent type. Repairs must only be

carried out by the laser manufacturer or an authorized agent.

SAFETY RULES FOR LASER LIGHTS

TOOLS PARTS OVERVIEW & OPERATION

TOOL PARTS OVERVIEW

OPERATION

SAFETY RULES FOR LASER LIGHTS

1. Lock-on button

2. Laser light and working area

illumination on/o switch

3. Laser aperture

4. Jigsaw on/o switch

5. Soft grip handle

6. Shoe plate

7. Shoe bracket

8. Blade guard

9. Blade guide

10. Cutting angle scale

11. Parallel guide

12. Pendulum lever

14. Variable speed control

15. Tool-free blade change control

16. Dust extraction adaptor

17. Parallel guide xing screw

SWITCHING ON - SWITCHING OFF

Brief activation

• Switching on: press and hold switch 4.

• Switching o: release switch 4.

Continuous use

• Switching on: press ON/OFF switch 4 and lock it by button 1.

• Switching o: press and release ON/OFF switch 4.
