ENGLISH
ahammer, stepped on). Electric shock or electrocution
may result. Damaged battery packs should be returned to
service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the
battery pack so that metal objects can contact
exposed battery terminals. For example, do not place
the battery pack in aprons, pockets, tool boxes, product kit
boxes, drawers, etc., with loose nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on
astable surface where it will not cause atripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can
possibly cause fire if the battery terminals inadvertently
come in contact with conductive materials. When
transporting batteries, make sure that the battery
terminals are protected and well insulated from materials
that could contact them and cause ashortcircuit.
NOTE: Lithium-ion batteries should not be put in
checkedbaggage.
D
EWALT batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards which
include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous
Goods Regulations, International Maritime Dangerous Goods
(IMDG) Regulations, and the European Agreement Concerning
The International Carriage of Dangerous Goods by Road (ADR).
Lithium-ion cells and batteries have been tested to section 38.3
of the UN Recommendations on the Transport of Dangerous
Goods Manual of Tests andCriteria.
In most instances, shipping aD
EWALT battery pack will be
excepted from being classified as afully regulated Class 9
Hazardous Material. In general, only shipments containing
alithium-ion battery with an energy rating greater than
100 Watt Hours (Wh) will require being shipped as fully
regulated Class 9. All lithium-ion batteries have the Watt Hour
rating marked on the pack. Furthermore, due to regulation
complexities, D
EWALT does not recommend air shipping
lithium-ion battery packs alone regardless of Watt Hour rating.
Shipments of tools with batteries (combo kits) can be air
shipped as excepted if the Watt Hour rating of the battery pack
is no greater than 100Whr.
Regardless of whether ashipment is considered excepted
or fully regulated, it is the shipper'sresponsibility to consult
the latest regulations for packaging, labeling/marking and
documentationrequirements.
The information provided in this section of the manual is
provided in good faith and believed to be accurate at the time
the document was created. However, no warranty, expressed or
implied, is given. It is the buyer’sresponsibility to ensure that its
activities comply with the applicableregulations.
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store afully charged
battery pack in acool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely depleted
of charge. The battery pack will need to be recharged beforeuse.

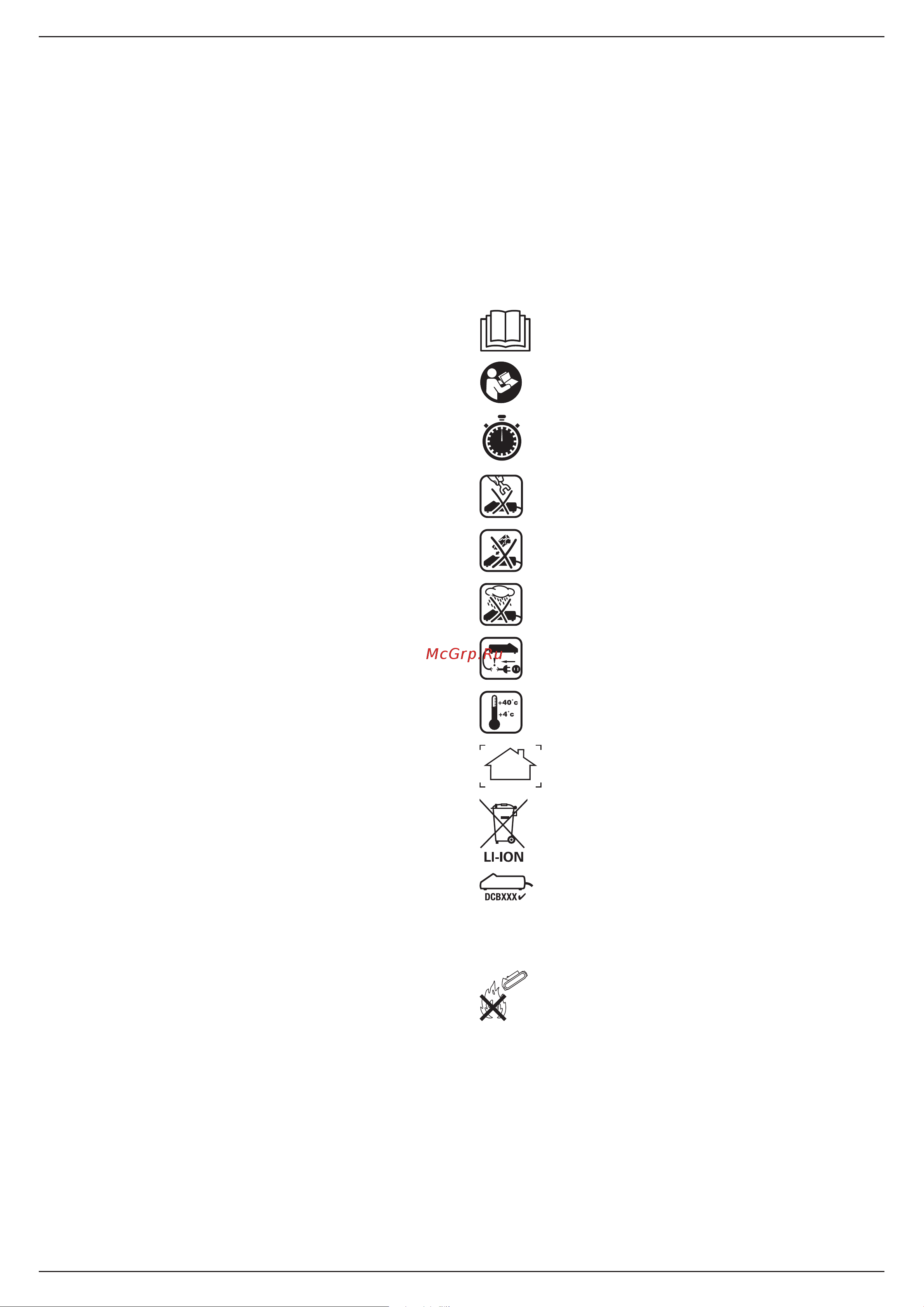

Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge DEWALT battery packs only with designated
D
EWALT chargers. Charging battery packs other
than the designated D
EWALT batteries with
aD
EWALT charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
Battery Type
The DCD701 operates on a12 volt batterypack.
These battery packs may be used: DCB122, DCB124, DCB125,
DCB127 . Refer to Technical Data for moreinformation.
Package Contents
The package contains:
1 Drill/driver
1 Charger
1 Belt hook (included with some models)
