ENDA ETS1410 is intended for installation in control panels. Make sure that the device is used only for intended
purpose. The electrical connections must be carried out by a qualified staff and must be according to the relevant
locally applicable regulations. During an installation, all of the cables that are connected to the device must be free of
electrical power. The device must be protected against inadmissible humidity, vibrations, severe soiling and make
sure that the operation temperature is not exceeded. The cables should not be close to the power cables or
components.
ELECTRICAL CHARACTERISTICS
90-250V AC 50/60Hz ;10-30V DC / 8-24V AC SMPS
Max. 5VA
2.5mm² screw-terminal connections
EN 61326-1: 2013 (Performance criteria B has been satisfied for EN 61000-4-3 standard).
%0,01
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II ).
Max.2000m
80% Relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C.
0 ... +50°C/-25 ... +70°C (with no icing)
According to EN 60529 ; Front Panel : IP65, Rear Panel : IP20
Supply
Power Consumption
Wiring
Accuracy
EMC
Safety Requirements
ENVIRONMENTAL CONDITIONS
Height
Ambient / Storage Temperature
Relative Humidity
Protection Class
Scale
OUTPUT
CONNECTION DIAGRAM
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
Barbaros Cad. No:18
TECHNICAL SPECIFICATIONS
KEEP AWAY device from exposed to corrosive, volatile and flammable gases
or liquids and DO NOT USE the device in similar hazardous locations.
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
2
1
35x77 Sized.
Easy to use.
Decimal place can be set.
Divider value assignment between 1 and 999.
Automatic sampling time according to input frequency.
(Sampling time will performed between 1 to 16 automatically).
CE Marked according to European Norms.
* MODBUS CONNECTION DIAGRAM
120 Ohm
120 Ohm
Master
Slave - 1
Slave - 2
Slave - 127
-
+
A
B
-
+
A
B
-
+
A
B
-
+
A
B
* Applies to devices with Modbus function.
Up to 127 slave
devices can be
controlled.
Termination should be accomplished by
attaching 120 Ohm resistors to the start
and at the end of the communication line.
Note :
1)
2)
Mains supply cords shall meet the requirements of IEC 60227
or IEC 60245.
In accordance with the safety regulations, the power supply switch
shall bring the identification of the relevant instrurment and it should
be easily accessible by the operator.
SUPPLY :
NOTE :
90-250V AC
or
10-30V DC/
8-24V AC
50/60Hz 5VA
Line
Neutral
Supply
UV / LV
Switch
Fuse
F 100 mA
250V AC
Cable size: 1,5mm²
Fuse should be
connected.
Equipment is protected throughout
by DOUBLE INSULATION.
Holding screw 0.4-0.5Nm
ETS1410 should not be used when measurement
categories II, III or IV are required.
4 Digits, 9.1mm, 7 Segment Red Display LED.
INPUTS
Sensor Input
Measurement Frequency
Sampling Time
Automatically adjusted according to input frequency. Minimum: 1s, Maximum: 16s
Measures frequencies between 0.07Hz and 10000Hz.
5 to 30V pulses
Sensor Supply Output
12V DC, Max. 30mA (unregulated)
71,5mm
28,5mm
Panel
1
1
2

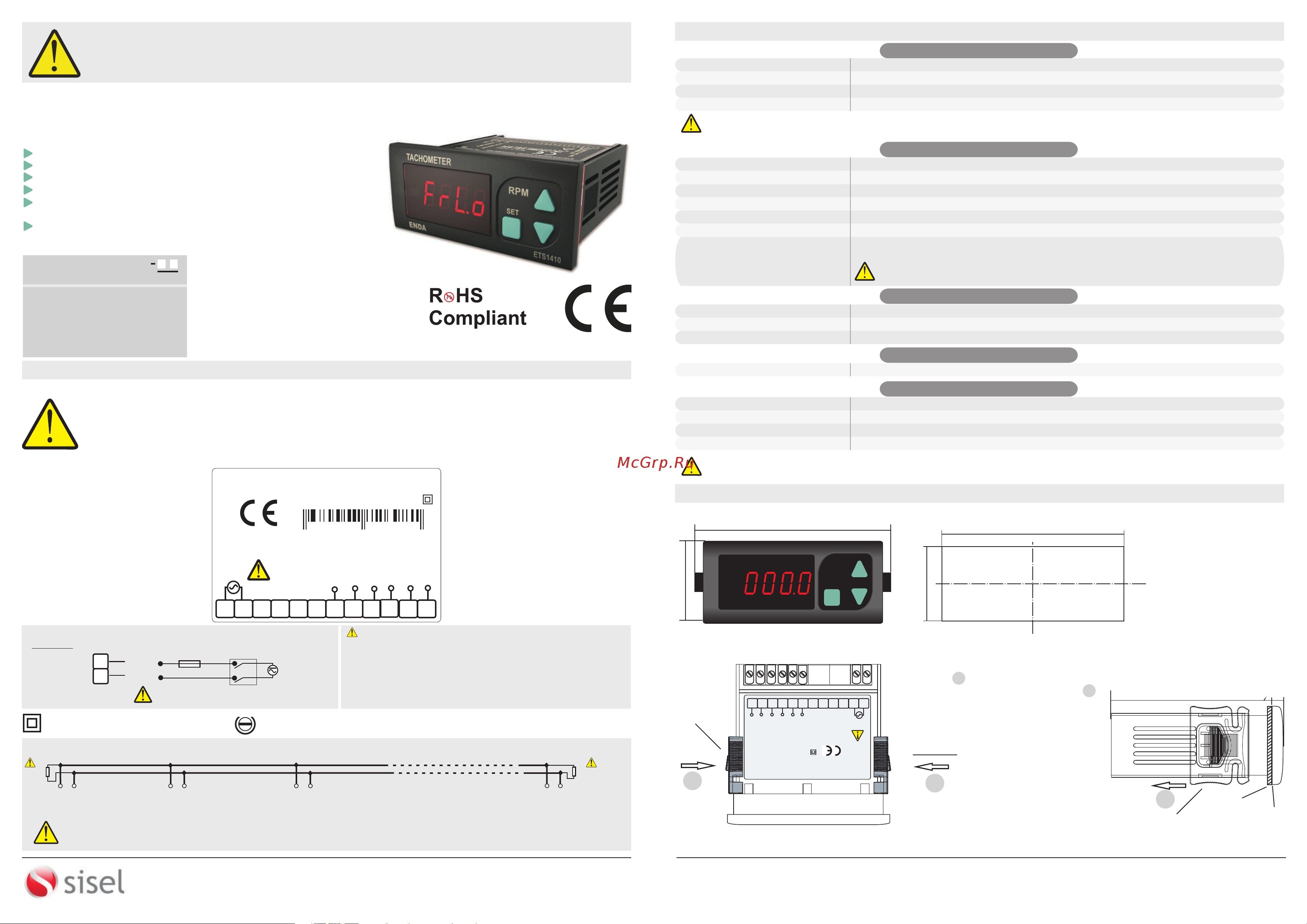

ENDA ETS1410 PULSE INPUT TACHOMETER
Read this document carefully before using this device. The guarantee will be expired by damaging of
the device if you don't attend to the directions in the user manual. Also we don't accept any
compensations for personal injury, material damage or capital disadvantages.
Thank you for choosing ENDA ETS1410 Tachometer devices.
1
2
HOUSING
Housing Type
Dimensions
Weight
Enclosure Material
Suitable for flush-panel mounting.
W77xH35xD61mm
Approx. 190g (after packing the device )
Self extinguishing plastics
DIMENSIONS
Note :
Flush
mounting
clamp
Flush
mounting
clamp
Panel Cut-out
To removing mounting clamps :
- Push the flush-mounting clamps in
direction as shown in the figure.
- And, pull out the clamp in direction
Depth
Rubber
packing
Flush
mounting
clamp
1) While panel mounting,
additional distance required
for connection cables should
be considered.
2) Panel thickness should be
7mm maximum.
3) If there is no free space at
back side of the device, it
would be difficult to remove it
from the pan el. 60mm
clearance should be left
behind the device.
ETS1410-EN-05-220103
ENDA
TM
SN: XXXXXXXXX
6
7 8 9
10
11 12
ETS1410-UV DIGITAL TACHOMETER
ENDA INDUSTRIAL ELECTRONICS
8 68 040 7 726981
Made in Turkey
12
COM
MOD_A
MOD_B
GND
SENSOR_INP
+ 12V
90-250V AC
50/60Hz 5VA
1 2 3 4 5
MOD_A
MOD_B
90-250V AC
50/60Hz 5VA
SN: XXXXXXXXX
1 2 3 4 5 6
7 8 9
10
11 12
ETS1410-UV DIGITAL TACHOMETER
ENDA INDUSTRIAL ELECTRONICS
GND
SENSOR_INP
+ 12V
COM
