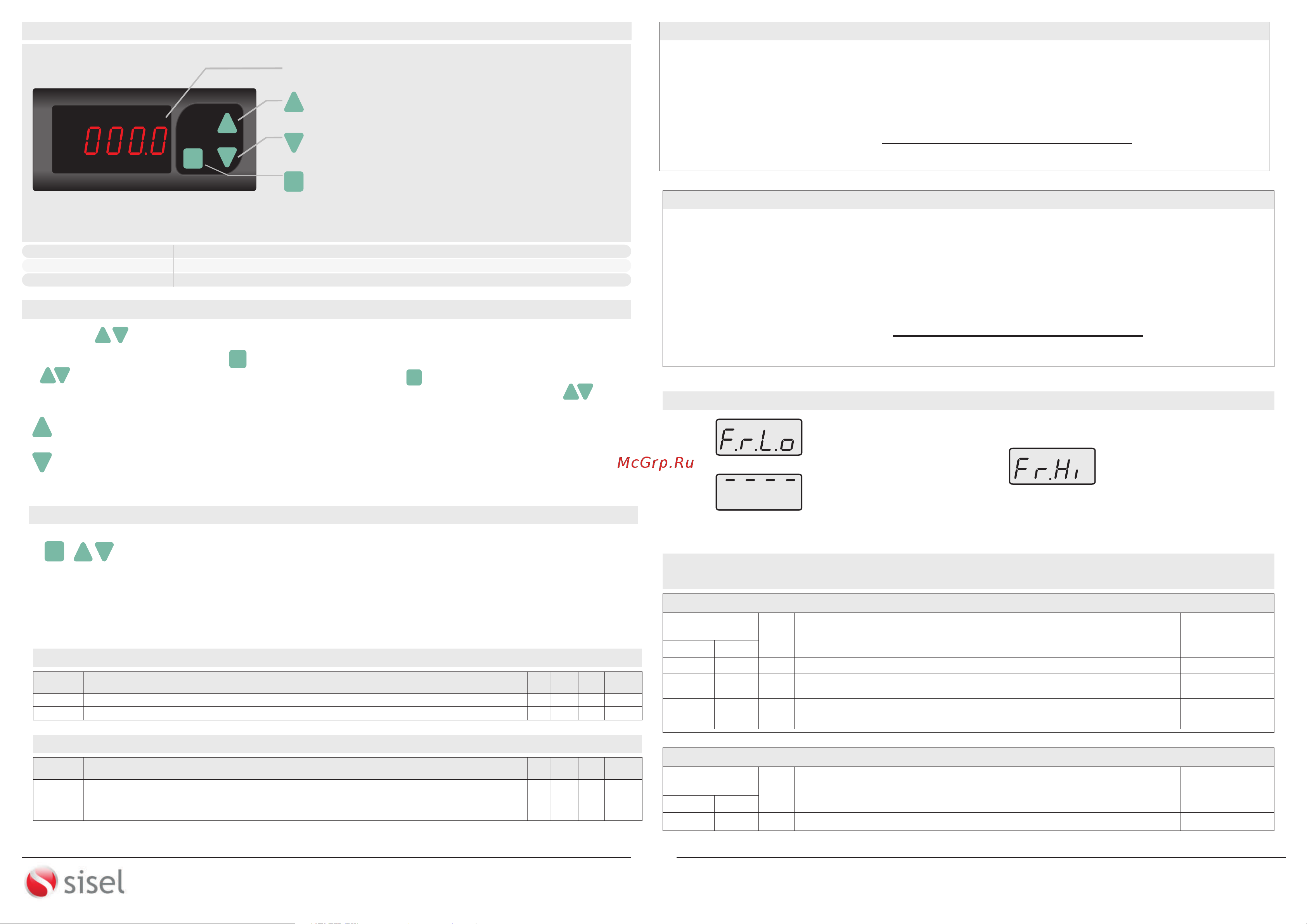

TERMS
ETS1410
ENDA
TACHOMETER
RPM
( 4 ) Parameter set key in “Programming Mode”
( 1 ) Indicates measured value and set values in “Running Mode”.
Indicates the parameters and names in “Programming Mode”.
( 2 ) Increment key in “Running Mode” and “Programming Mode”.
Parameter selection key in “Programming Mode”.
By pressing continuously, parameter value increases rapidly.
SET
SET
Character Heights
( 2 ),( 3 ),( 4 ) Keypad
( 1 ) PV Göstergesi
12,5 mm
7 Segment, 4 Digits Red LED display
Micro switch
SETTING UP THE PARAMETERS
By pressing keys together for 2 seconds, “Programming Mode” is enterd.
During a selected parameter, by pressing key, parameter value can be displayed. Parameter value can be changed with
keys. If no operation performed for 3 seconds or during this time, if key is pressed while the parameter value
displayed, parameter name will be displayed again. While parameter name displayed, if by pressing together keys,
"Running Mode" is entered.
SET
SET
Provides to access to the previous parameter in "Programming Mode". Decreases the selected parameter value. By
pressing continuously, parameter valuıe decreases rapidly.
Provides to access to the next parameter in "Programming Mode". Increases the selected parameter value. By
pressing continuously, parameter valuıe increases rapidly.
EXAMPLES FOR USING DIVISOR PARAMETER
ENDA ETS1410 Pulse Input Tachometer divides the pulses from the input to the display by dividing it with the calibration value.
The divisor value can be selected between 1 and 999. This feature allows the device to be used in precise speed
measurements, instantaneous flow measurements and speed measurement applications. According to this, 1 as the divisor
value must be entered for the one-to-one flow rate measurement. Calculation of dividing information can be formulated as
follows :
CAL(divider value) =
Desired value on the display
Number of pulses per minute
( 3 ) Decrement key in “Running Mode” and “Programming Mode”.
Parameter selection key in “Programming Mode”.
By pressing continuously, parameter value decreases rapidly.
dp
c
0
Min.
Max.
Unit
Default
Value
Dividing parameter value
Decimal place parameter
0
Modbus Baudrate.
0 : oFF, 1 :1200 , 2 : 2400, 3 : 4800 , 4 : 9600, 5 :19.200)
baud
Adr5
Modbus, slave device address.
1
999
1
3
Parameter
Name
DEVICE PARAMETERS
Description
1
247
1
off
19.20
Bps
9600
Parametre
Adi
MODBUS PARAMETERS
Description
Min.
Max.
Unit
Default
Value
DIVISOR VALUE FOR LINE SPEED MEASUREMENT
25cm circumference of cylinder has 3 rpm turn. Speed of the belt passing over this cylinder will be measured in meter/min.
To measure the rotation of the cylinder, 50 pulse/cycle encoder will be used.
The dividing value is calculated as follows ;
ERROR MESSAGES
Input frequency too
low or no signal
High input frequency
Measured value is
higher than 9999
ENDA ETS1410 TACHOMETER
MODBUS PROTOCOL ADDRESS MAP
Holding Register
Addresses
Decimal
Hex
Data
Type
Parameter Description
0000d
0001d
0002d
0003d
0x0000
0x0001
0x0002
0x0003
word
word
word
word
Modbus communication speed (Baudrate) (0 = Modbus cancel,
1 = 2400 bps, 2 = 4800 bps, 3 = 9600 bps, 4 =19200 bps, 5 = 38400 bps)
Decimal place parameter
Divider parameter
1. HOLDING REGISTERS
ModBus device address (Can be adjusted between 1 and 247)
Parameter
Name
Read / Write
Permission
R / W
R / W
R / W
R / W
c
dp
baud
adrs
1. INPUT REGISTERS
Input Register
Addresses
Decimal
Hex
0000d
0x0000
word
Measured frequency
--
R
Display value : 3cycles/min X 25cm/rpm = 75cm/min
Number of pulses per minute : 3cycles/minute X 50pulses/rpm = 150 pulses/minute
Then ;
CAL(divider value) =
75 cm/minute
150 pulse/minute
= 2
Data
Type
Parameter
Name
Read / Write
Permission
Parameter Description
2 / 2
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
Barbaros Cad. No:18
ETS1410-E-03-190909
ENDA
TM
ETS1410-EN-05-220103
ENDA
TM
VIEWING THE REVISION DATE
the revision date is displayed consecutively in days, months and years.
If any of the pressed buttons are released while the revision date is displayed,
the measurement value is displayed again.
SET
If keys are pressed together,
