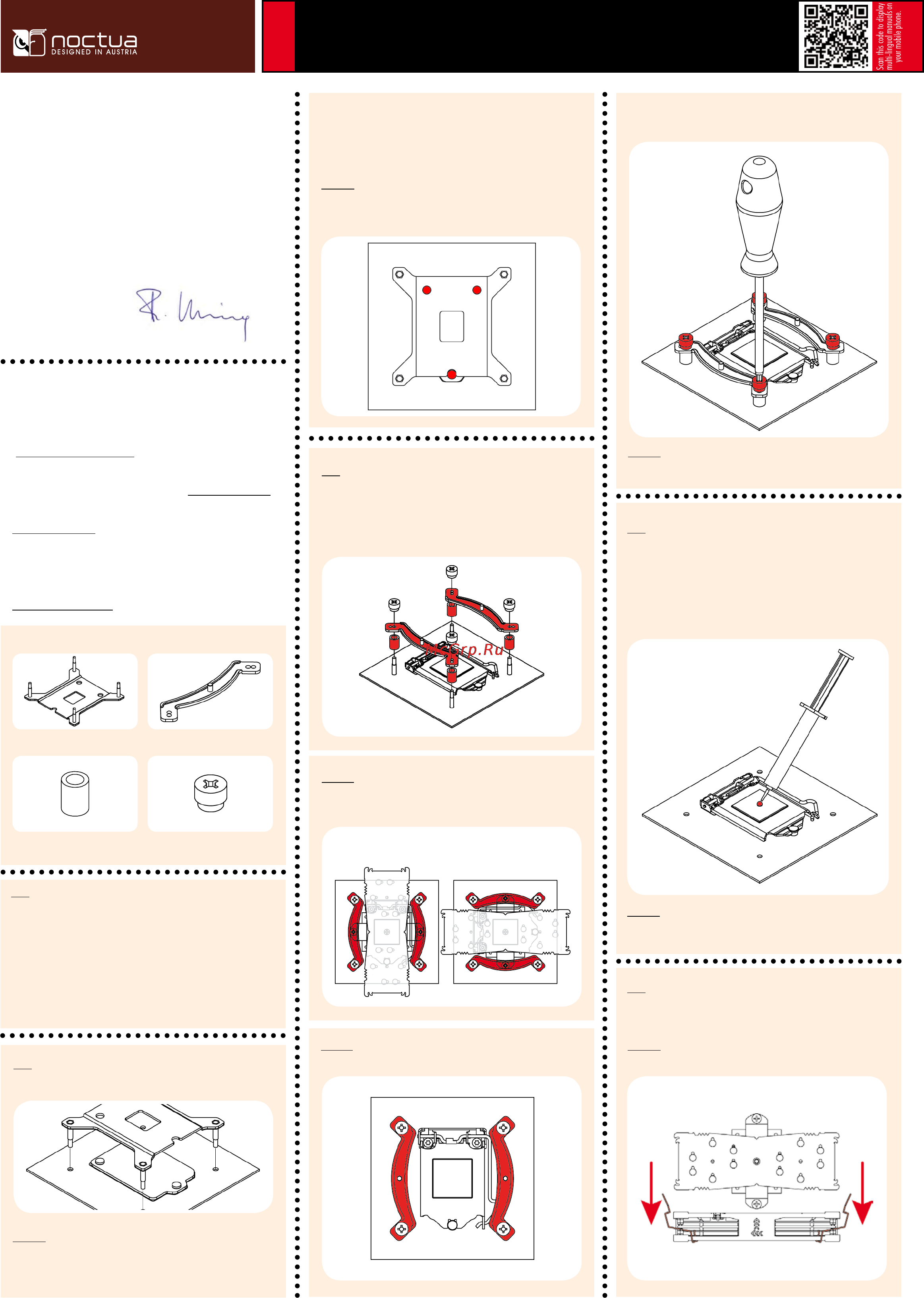

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-U14S.

The NH-U14S is the first 140mm model in Noctua’s award-winning

NH-U series. First introduced in 2005, the NH-U series has be-

come a standard choice for premium quality quiet CPU coolers and

won more than 400 awards and recommendations from leading

international hardware websites and magazines.

Enjoy your NH-U14S!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step. Prior to installing

the cooler, please consult the compatibility list on our website

(www.noctua.at/compatibility) and verify that the cooler is fully

compatible with your motherboard. Should you encounter any diffi-

culties, pleas e check the FAQs on our website (www.noctua.at/faqs)

and don’t hesitate to contact our support team at

support@noctua.at. Noctua cannot be held responsible for any

damage or losses caused by compatibility issues.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

Removing the mainboard

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the mainboard

tray, you first have to remove the mainboard from the case in

order to be able to install the supplied backplate.

Step 1

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

2x NM-IMB3 Mounting Bars1x NM-IBP2 Backplate

4x NM-ITS1 Thumbscrews4x NM-IPS1 Spacers

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Step 4

Place the backplate on the rear side of the mainboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the mainboard’s stock

backplate.

Installing the mounting bars

Caution:

Choose the alignment of the mounting bars according to the desired

final orientation of the cooler:

Step 3

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force.

Attaching the backplate

Caution: The supplied backplate will install over the mainboard’s

stock backplate, so the mainboard’s stock backplate must not be

taken off.

Step 2

Orientation A Orientation B

Fastening the heatsink to the CPU

Caution: Please first take off the fan as well as the protection cover

at the bottom side of the heatsink.

Step 5

Noctua NH-U14S |

Installation Manual | LGA115x

LGA115x
