OPERATING THE MITRE GAUGE

NOTE:

1. The mitre gauge can be used on either side of the

saw blade.

2. Because the mitre gauge groove is a T-type slot, to

install the mitre gauge, insert the gauge bar from the

end of the groove.

3. To set the mitre cut angle, loosen the clamp handle,

turn the mitre gauge to the desired angle, retighten

the clamp handle.

RIPPING (FIG. S)

NOTE:

1. Generally ripping is cutting with the grain.

2. Do not perform ripping “free hand”. Use the rip fence

for ripping and remove the mitre gauge from the table.

1. Before ripping, conﬁrm the following items:

a. Rip fence is securely ﬁxed and parallel to the

saw blade.

b. Riving knife is properly aligned with the saw

blade.

c. The workpiece must have a straight edge

against the rip fence and must not be warped,

twisted or bowed.

2. Keep both hands away from the saw blade and

away from the path of the saw blade.

1. Adjust the saw blade height so it is about 3.2 mm

above the top of the workpiece.

2. Hold the workpiece ﬂat on the table and against the

rip fence. Keep the workpiece about 25 mm away

from the saw blade.

3. Turn on the switch and allow the saw blade to come

up to speed.

4. Keep the workpiece against the table and rip fence,

slowly feed the workpiece rearward all the way

through the saw blade. Continuously push the

workpiece until it passes the blade guard and clears

the rear of the table.

5. When ripping long boards or large panels, always

use an adequate support.

6. When the width of rip is more than 150 mm, feed the

workpiece with one or both hands continuously until

it is beyond the saw blade and riving knife

OPERATION

WARNING

SWITCHES OF THE TABLE SAW (FIG. R)

The main switch (3-Fig. R), No Volt Release (NVR)

switch, is on the front of saw base. Press “ I “ to turn on

the power; press “O” to turn off the power.

Never connect the plug to the power source outlet

until all installations and adjustments are completed

and you have read and understood the safety and

operational instructions.

RAISING AND LOWERING THE SAW BLADE (FIG. R)

Never operate while saw blade rotating.

1. To raise the saw blade, rotate the handwheel (1)

anticlockwise.

2. To lower the saw blade, rotate the handwheel (1)

clockwise.

NOTE: The saw blade height is recommended about 3.2

mm above the top of the workpiece.

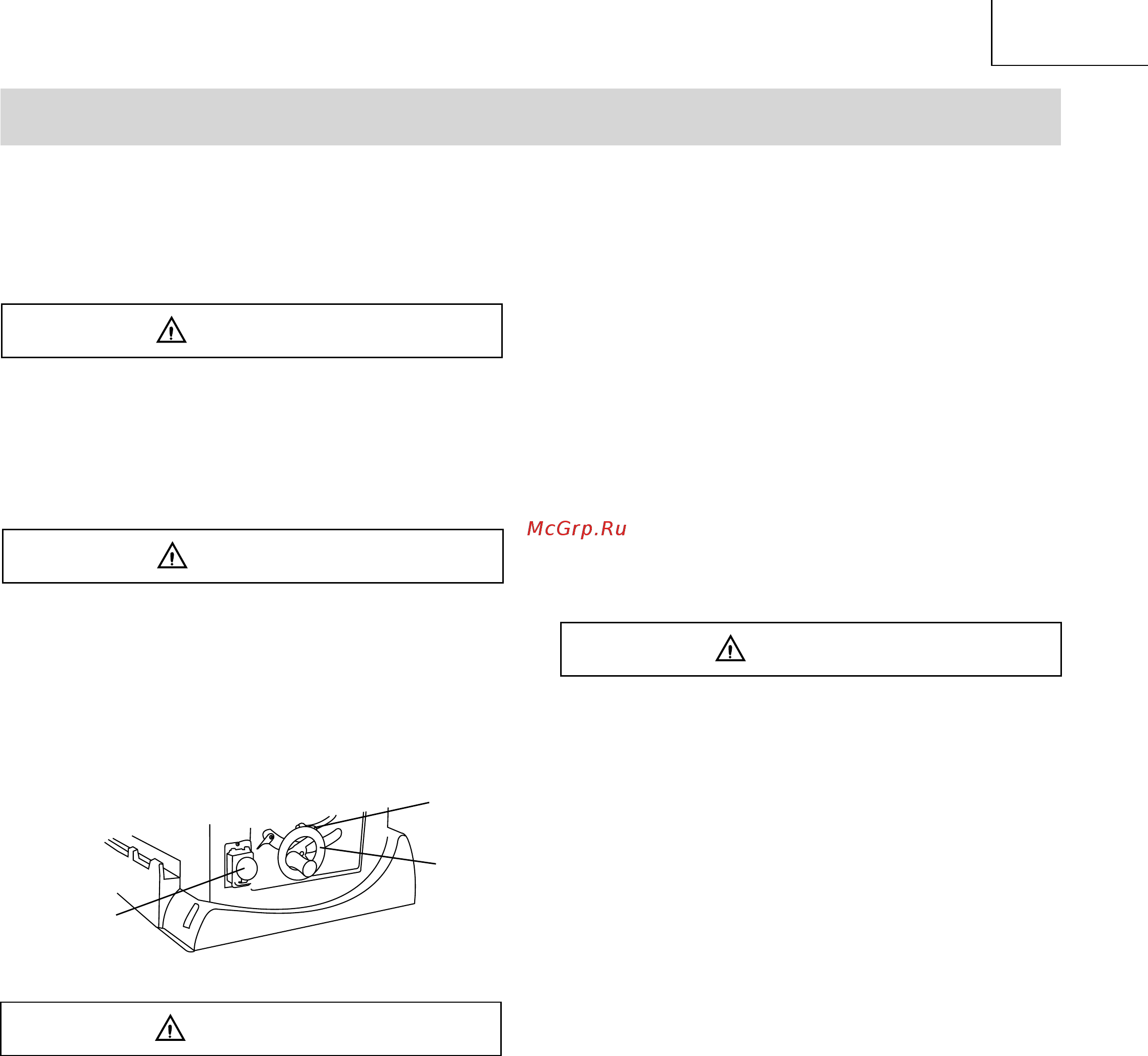

Fig. R

TILTING THE SAW BLADE (FIG. R)

Always lock the saw blade tilt lock handle during

operations.

Loosen the saw blade tilt lock handle (2), move the hand

wheel until the saw blade is at the desired angle and

tighten the saw blade tilt lock handle.

MOVING THE RIP FENCE

NOTE:

1. The rip fence can be used on either side of the saw

blade.

2. The pointer on the rip fence indicates the distance

between the saw blade and rip fence.

3. To move the rip fence, loosen the clamp handle while

pressing the fence bracket against the table surface

and set the desired distance from the saw blade,

retighten the clamp handle.

WARNING
