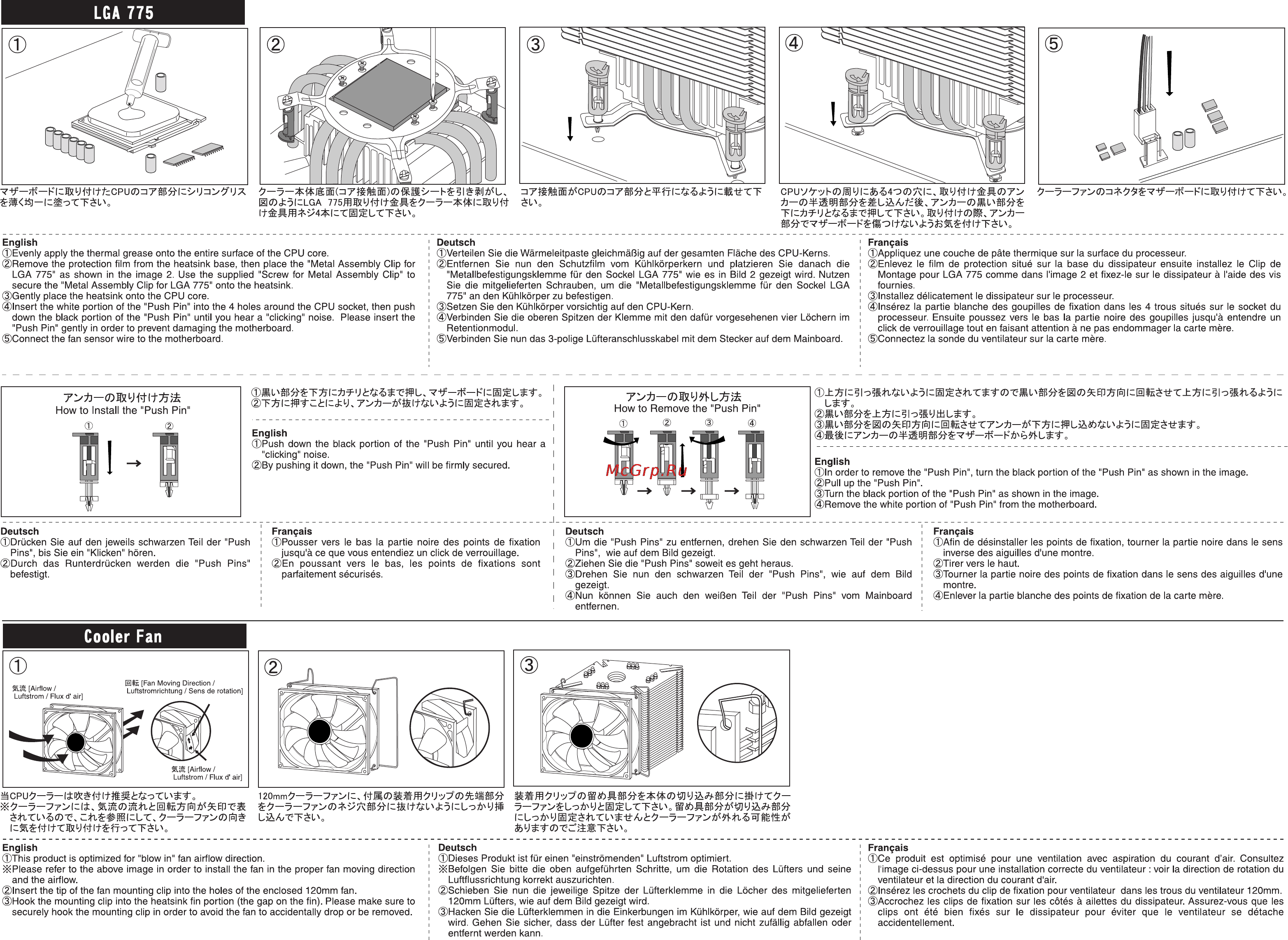

LGA 775 v F Kcæufti fccpuroziTaia io j x jT ÎS l 8otTÎV 0 J 5ICLGA 775 J1WéÂÎ7 7 WI ytt l Âffl y4 lz C SL CTè o 7m4ffiAsCPU 37g i ÎT c4i àJ ôl tE tirT l o cpuv r h jf y cfe54o 7 ic yWO 7 iSifiSB SSLÜA 7 iâ 7 St 5S è Tlc Wyi S effL CT L o æy W g 7 sca cv r Ksigoi iîL i fo as i TÿLx English Deutsch Français Evenly apply the thermal grease onto the entire surface of the CPU core Remove the protection film from the heatsink base then place the Metal Assembly Clip for LGA 775 as shown in the image 2 Use the supplied Screw for Metal Assembly Clip to secure the Metal Assembly Clip for LGA 775 onto the heatsink Gently place the heatsink onto the CPU core Insert the white portion of the Push Pin into the 4 holes around the CPU socket then push down the black portion of the Push Pin until you hear a clicking noise Please insert the Push Pin gently in order to prevent damaging the motherboard Connect the fan sensor wire to the motherboard Verteilen Sie die Wärmeleitpaste gleichmäßig auf der gesamten Fläche des CPU Kerns Entfernen Sie nun den Schutzfilm vom Kühlkörperkern und platzieren Sie danach die Metallbefestigungsklemme für den Sockel LGA 775 wie es in Bild 2 gezeigt wird Nutzen Sie die mitgelieferten Schrauben um die Metallbefestigungsklemme für den Sockel LGA 775 an den Kühlkörper zu befestigen Setzen Sie den Kühlkörper vorsichtig auf den CPU Kern Verbinden Sie die oberen Spitzen der Klemme mit den dafür vorgesehenen vier Löchern im Retentionmodul Verbinden Sie nun das 3 polige Lüfteranschlusskabel mit dem Stecker auf dem Mainboard Appliquez une couche de pâte thermique sur la surface du processeur Enlevez le film de protection situé sur la base du dissipateur ensuite installez le Clip Montage pour LGA 775 comme dans l image 2 et fixez le sur le dissipateur à l aide des fournies Installez délicatement le dissipateur sur le processeur Insérez la partie blanche des goupilles de fixation dans les 4 trous situés sur le Socket processeur Ensuite poussez vers le bas la partie noire des goupilles jusqu à entendre click de verrouillage tout en faisant attention à ne pas endommager la carte mère Connectez la sonde du ventilateur sur la carte mère de vis du un English Push down the black portion of the Push Pin until you hear a clicking noise By pushing it down the Push Pin will be firmly secured English In order to remove the Push Pin turn the black portion of the Push Pin as shown in the image Pull up the Push Pin Turn the black portion of the Push Pin as shown in the image Remove the white portion of Push Pin from the motherboard Deutsch Français Deutsch Français Drücken Sie auf den jeweils schwarzen Teil der Push Pins bis Sie ein Klicken hören Durch das Runterdrücken werden die Push Pins befestigt Pousser vers le bas la partie noire des points de fixation jusqu à ce que vous entendiez un click de verrouillage En poussant vers le bas les points de fixations sont parfaitement sécurisés Um die Push Pins zu entfernen drehen Sie den schwarzen Teil der Push Pins wie auf dem Bild gezeigt Ziehen Sie die Push Pins soweit es geht heraus Drehen Sie nun den schwarzen Teil der Push Pins wie auf dem Bild gezeigt Nun können Sie auch den weißen Teil der Push Pins vom Mainboard entfernen Afin de désinstaller les points de fixation tourner la partie noire dans le sens inverse des aiguilles d une montre Tirer vers le haut Tourner la partie noire des points de fixation dans le sens des aiguilles d une montre Enlever la partie blanche des points de fixation de la carte mère Cooler Fan SCPU 7 l20mÎ7 7 77 E 5 7 77 vftSi Kffil iil J 7 XoÄ yS LiiA r Tèl o yj r rzj STèt English Deutsch Français This product is optimized for blow in fan airflow direction Please refer to the above image in order to install the fan in the proper fan moving direction and the airflow Insert the tip of the fan mounting clip into the holes of the enclosed 120mm fan Hook the mounting clip into the heatsink fin portion the gap on the fin Please make sure to securely hook the mounting clip in order to avoid the fan to accidentally drop or be removed Dieses Produkt ist für einen einströmenden Luftstrom optimiert Befolgen Sie bitte die oben aufgeführten Schritte um die Rotation des Lüfters und seine Luftflussrichtung korrekt auszurichten Schieben Sie nun die jeweilige Spitze der Lüfterklemme in die Löcher des mitgelieferten 120mm Lüfters wie auf dem Bild gezeigt wird Hacken Sie die Lüfterklemmen in die Einkerbungen im Kühlkörper wie auf dem Bild gezeigt wird Gehen Sie sicher dass der Lüfter fest angebracht ist und nicht zufällig abfallen oder entfernt werden kann Ce produit est optimisé pour une ventilation avec aspiration du courant d air Consultez l image ci dessus pour une installation correcte du ventilateur voir la direction de rotation du ventilateur et la direction du courant d air Insérez les crochets du clip de fixation pour ventilateur dans les trous du ventilateur 120mm Accrochez les clips de fixation sur les côtés à ailettes du dissipateur Assurez vous que les clips ont été bien fixés sur le dissipateur pour éviter que le ventilateur se détache accidentellement
