HD135

The specifications of any product may change without prior notice to improve performance.

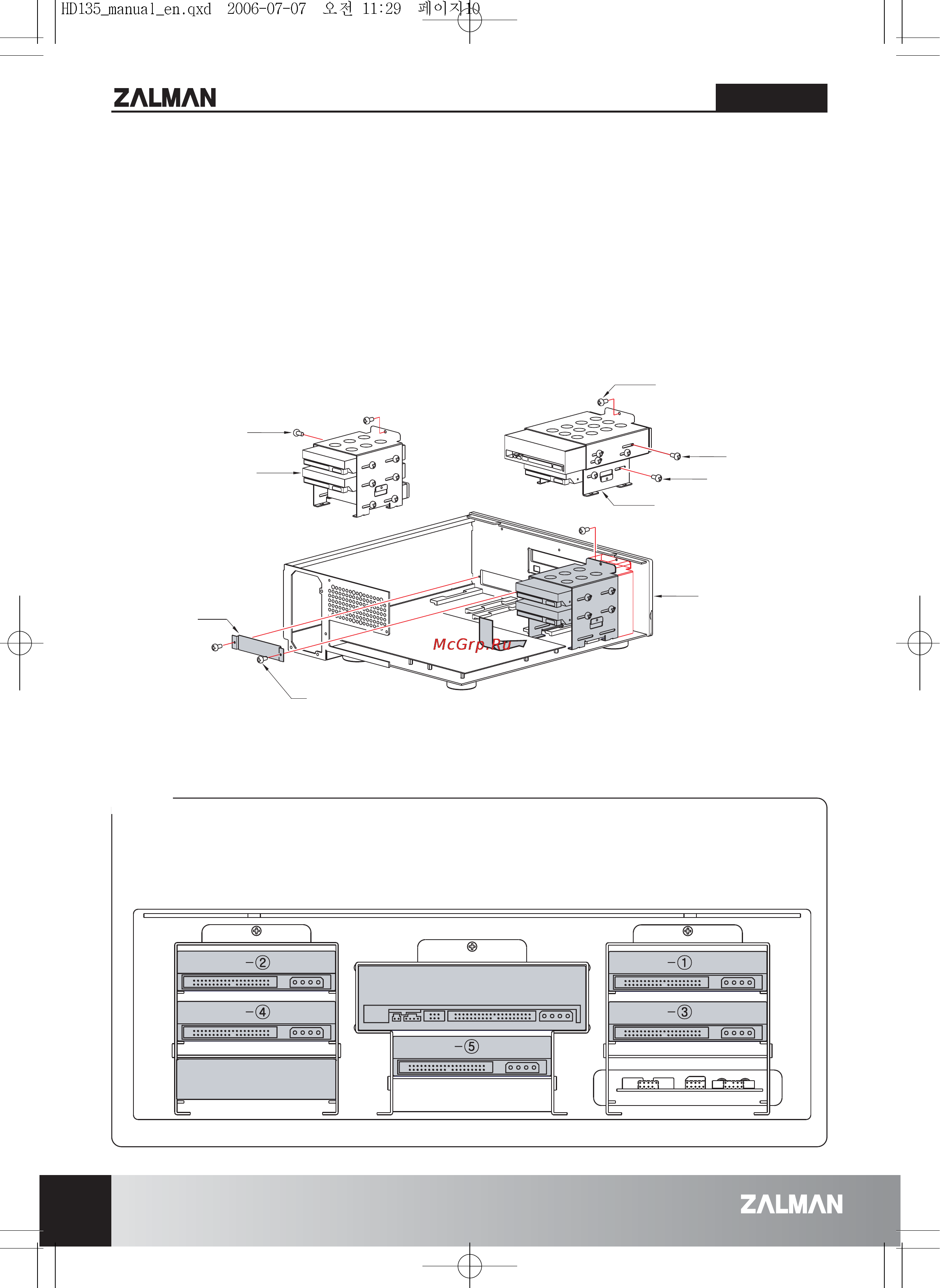

4) Installing 5.25" and 3.5" Drives

(1) To install the FDD and Card Reader onto HDD Bracket, the External Drive

Cover assembled on the Front Plate must first be removed.

(2) Attach the 5.25" drive (ODD) and 3.5" drive (HDD, FDD, Card Reader) onto

the ODD and HDD Brackets with the use of appropriate Bolts.

(3) Push the ODD and HDD Brackets into the enclosure, and install them onto

the Front Plate with the use of Fixing Bolts (Bolt, M4x5).

Bolt

(PH #6-32 x 6)

HDD

Bracket

External Drive

Cover

Bolt

(PH M3X5)

Front

Plate

ODD

Bracket

Bolt

(PH #6-32 x 6)

Bolt

(PWH M3x5)

Bolt

(PH M4x5)

This product is provided with one 5.25' bay and six 3.5' bays.

For optimal HDD cooling, install in the order mentioned in the diagram below.

HDD (3.5” )

External Drive (3.5” )

ODD (5.25” )

HDD (3.5” )

Note)
