HD135
8
The specifications of any product may change without prior notice to improve performance.

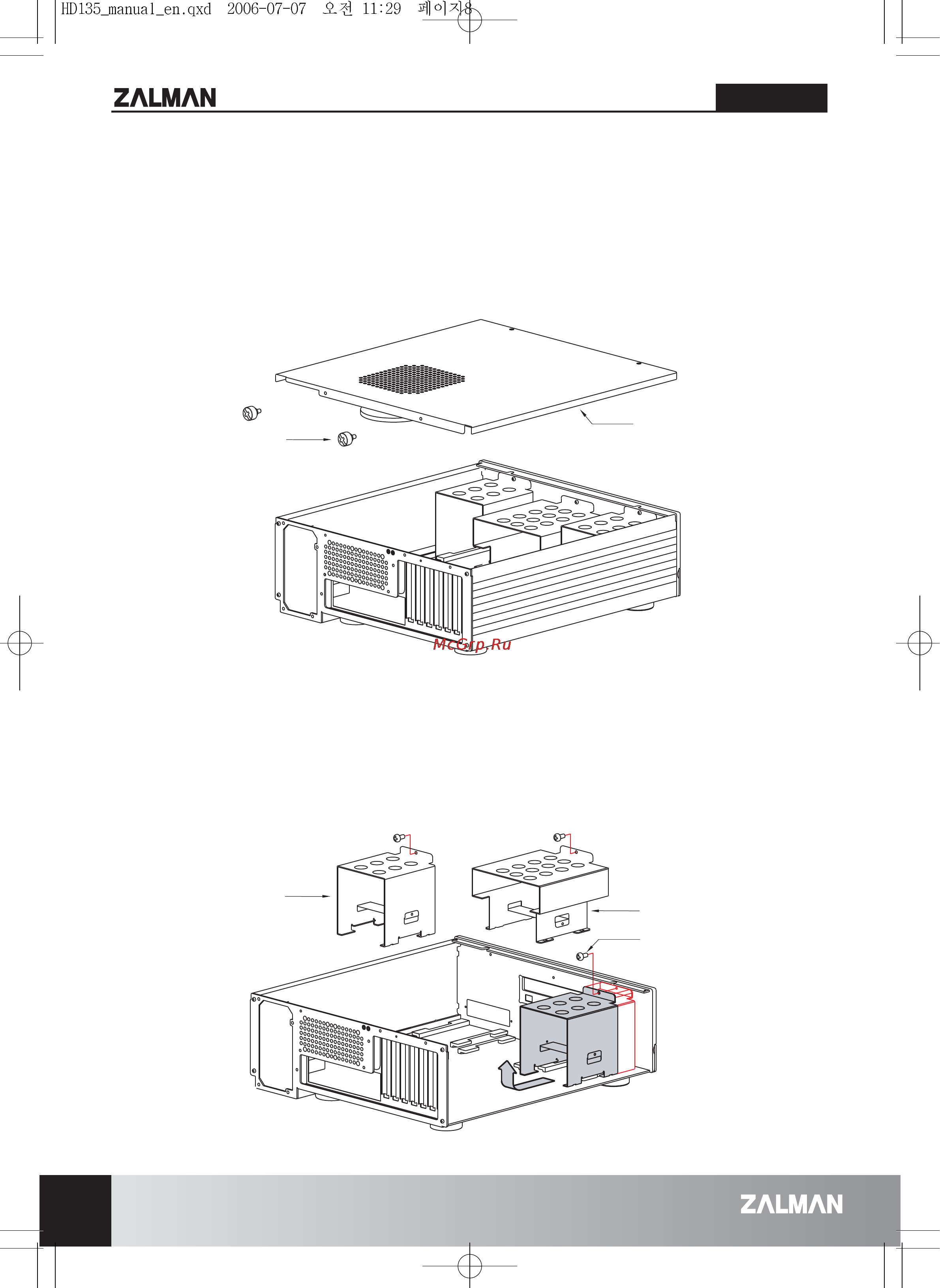

6. Installation Guide
1) Opening the Enclosure
To remove the lid of the enclosure, unscrew the two Bolts (Finger Bolt, #6-32)
and slide backwards and lift the Top Plate as shown in the figure below.
2) Removing the ODD and HDD Brackets
Remove the Fixing Bolts (Bolt, PH M4x5), and push the ODD and HDD Brackets
towards the back of the enclosure by approximately 15mm(0.6inch). Now lift the
Brackets.
Finger Bolt
(#6-32)
TOP Plate
okkGi
vkkGi
i
OwoGt[\P
