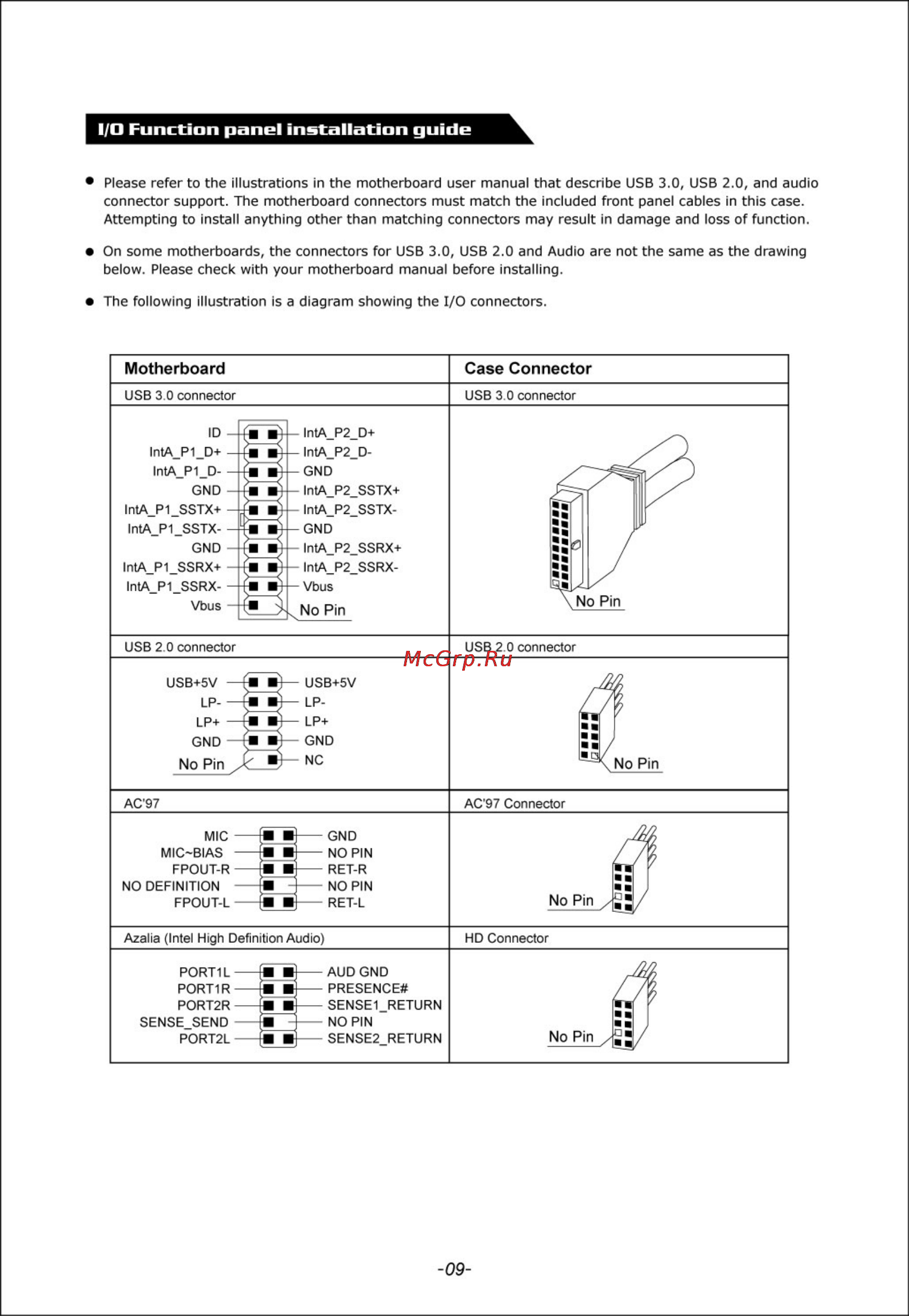

I O Function panel installation guide Please refer to the illustrations in the motherboard user manual that describe USB 3 0 USB 2 0 and audio connector support The motherboard connectors must match the included front panel cables in this case Attempting to install anything other than matching connectors may result in damage and loss of function On some motherboards the connectors for USB 3 0 USB 2 0 and Audio are not the same as the drawing below Please check with your motherboard manual before installing The following illustration is a diagram showing the I O connectors Motherboard Case Connector USB 3 0 connector USB 3 0 connector ID lntA_P1_D lntA_P1_D GND lntA_P2_D lntA_P2_D GND lntA_P2_SSTX lntA_P1_SSTX lntA_P2_SSTX lntA_P1_SSTX GND GND lntA_P2_SSRX lntA_P1_SSRX lntA_P2_SSRX lntA_P1_SSRX Vbus Vbus N 0 Pin No Pin USB 2 0 connector USB 5V ïî USB 2 0 connector USB 5V LP LP LP LP GND GND 1 7 No Pin NC U3 AC 97 No Pin AC 97 Connector GND MIC MIC BIAS NO PIN FPOUT R RET R NO DEFINITION NO PIN FPOUT L RET L Azalia Intel High Definition Audio No Pin HD Connector PORT1L AUD GND PORT1R PRESENCE PORT2R SENSE1_RETURN SENSE_SEND NO PIN PORT2L SENSE2_RETURN No Pin 09
