3 Follow the steps on the screen to connect the TeraStation’s Ethernet and power cables and turn it on.

Note: Use LAN port 1 for initial setup. After setup, you may connect a second cable to LAN port 2. If you use LAN

port 2, configure the IP address at Network - IP Address in Settings.

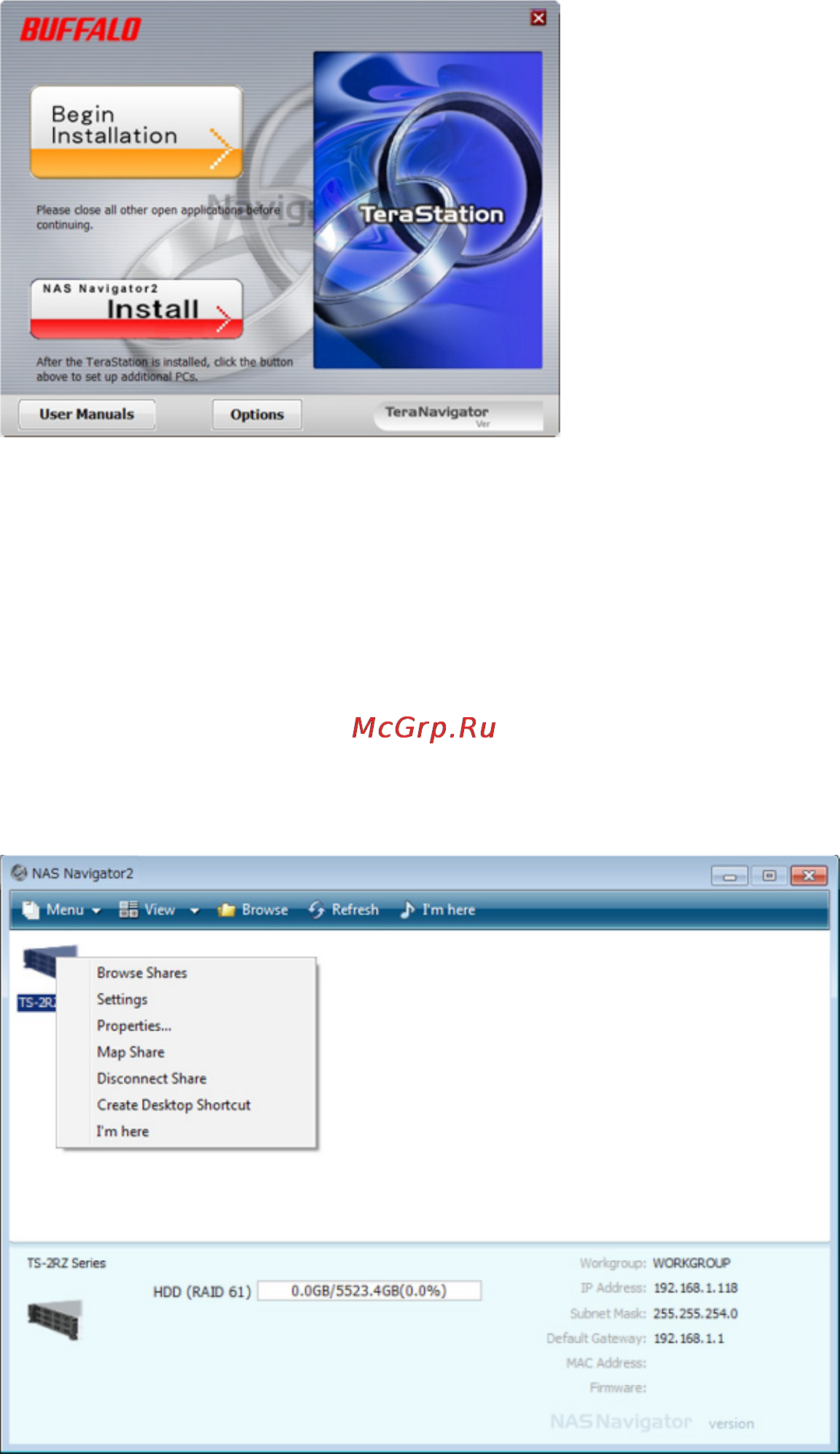

4 Follow the steps on the screen to install NAS Navigator2.

5 Click Finish. NAS Navigator2 will open.

6 Right-click on your TeraStation’s icon and choose Properties.

Note: For Mac OS, select the TeraStation’s icon while holding down the control key, then click Configure.

7 Click the IP Address tab, enter the desired settings, and click OK.
