Notes:

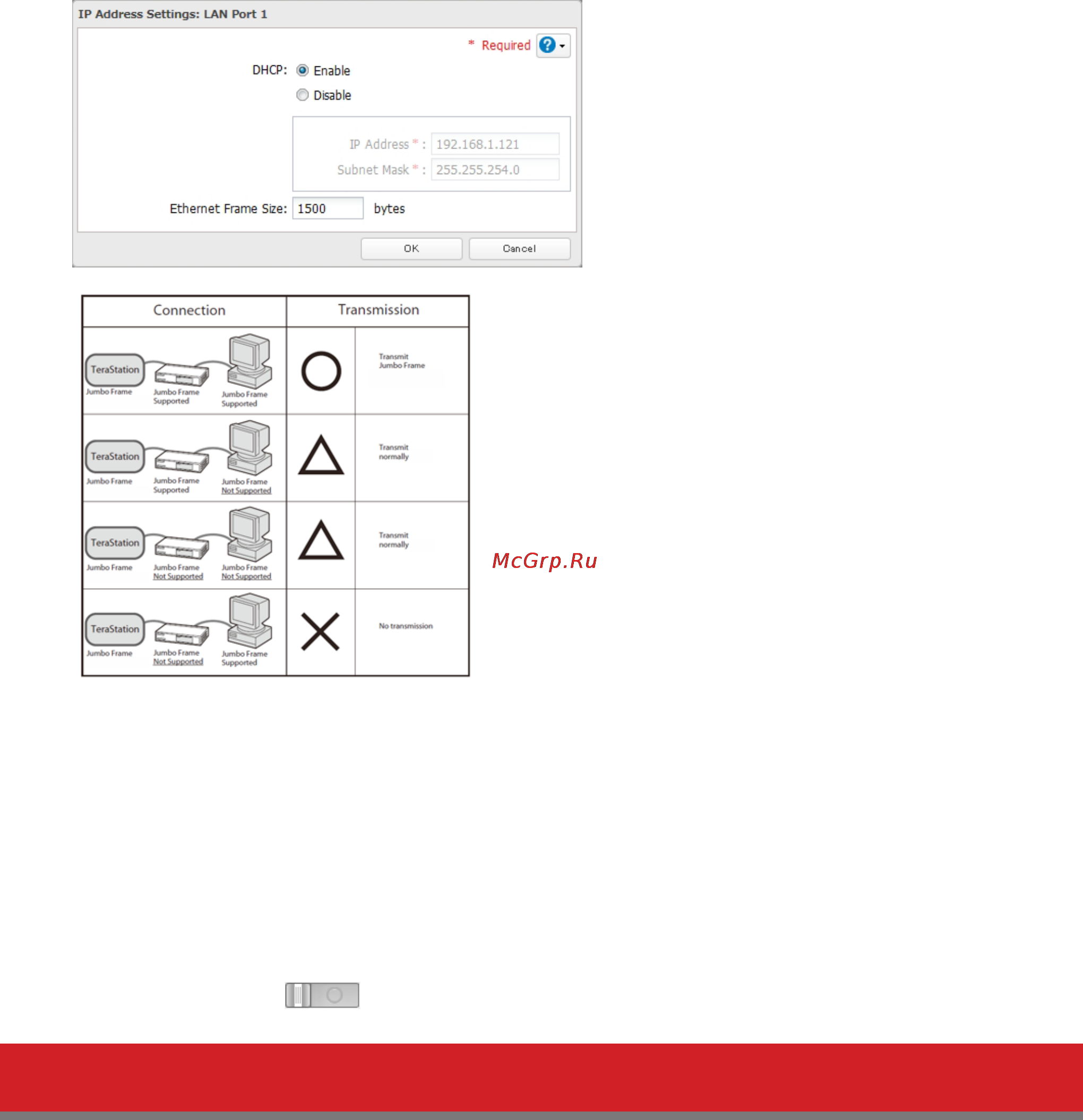

• To use jumbo frames, your computer’s NICs and all switches, hubs, and routers on the network need to support

jumbo frames. If any device on the network does not support jumbo frames, use standard frames (1500 bytes)

instead.

• Frame sizes smaller than 1500 bytes are not supported.

• The maximum frame size depends on the LAN port: LAN ports 1–4 (10/100 ports) have a maximum frame size of

9216 bytes while LAN ports 5 and 6 (10 Gb expansion ports) have a maximum frame size of 9000 bytes.

• Frame sizes are used as shown. Some systems subtract 18 bytes from the entered value, but the TS7000 does not.

• If the TeraStation is being used as an iSCSI hard drive, to change the settings, navigate to Drives - iSCSI and move

the iSCSI switch to the position temporarily before changing network settings.

DHCP and IP Address

Normally, the TeraStation’s IP address is set automatically from a DHCP server on your network. If you prefer, you can

configure the IP address settings manually.

1 Navigate to Network - IP Address in Settings.

2 Click on the LAN port whose IP address you want to configure (normally LAN port 1). Click Edit.

3 Change the settings as desired and click OK.
