Chapter 1 Installation

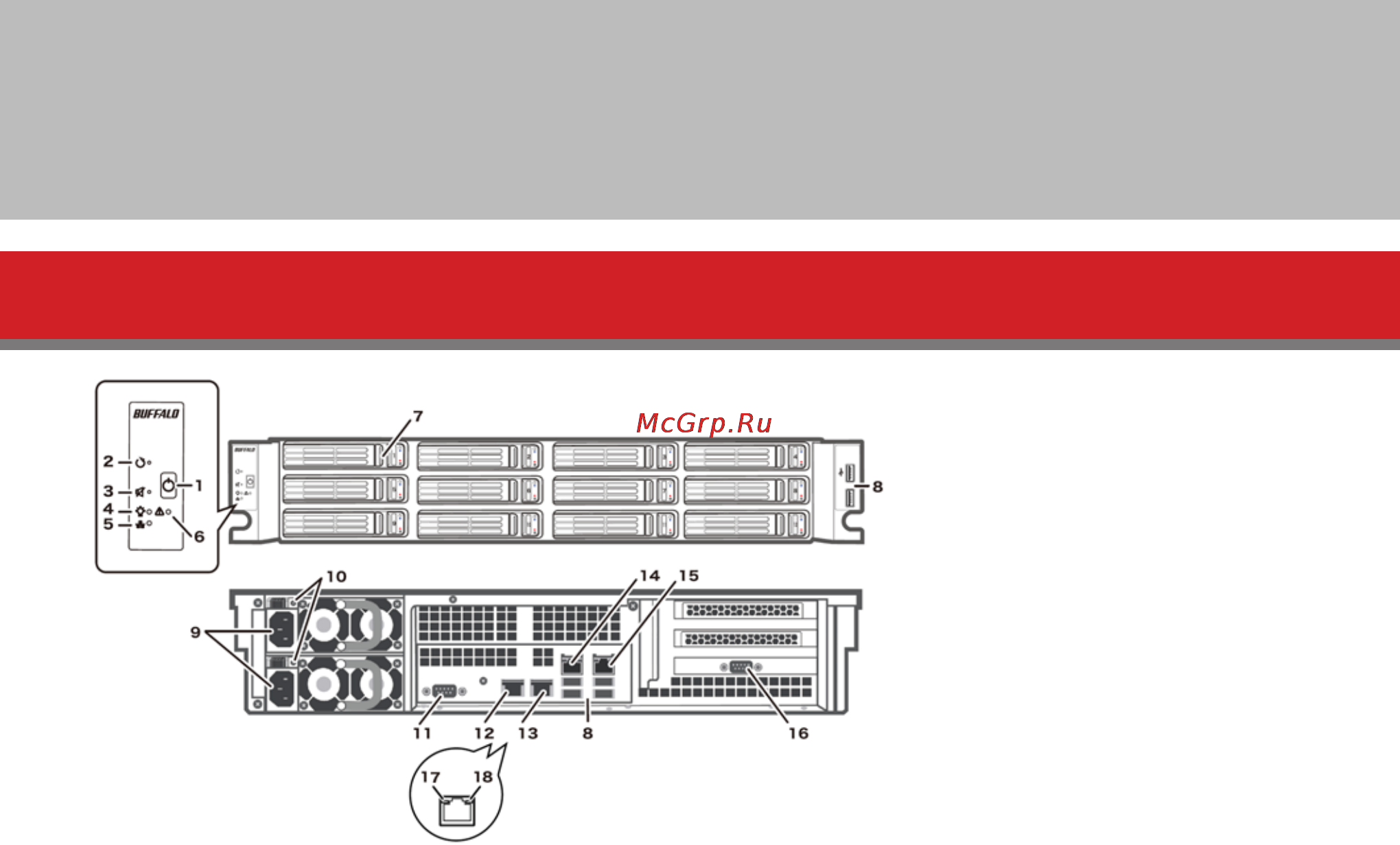

Diagrams

1 Power Button

On: Press the power button to turn on the TeraStation.

Off: Press the power button twice within 3 seconds to turn off the TeraStation.

2 Reset Button

This resets the TeraStation. Use a toothpick or similar object to hold down this switch for a second, then release it.

3 Mute Button

This turns off audible alarms, such as the one you get when a power supply fails. Use a toothpick or similar object

to hold down this switch for a second, then release it.

4 Power LED

This LED is on during normal operation. It blinks during boot and shutdown.

5 LAN LED

When any of the 4 LAN ports is connected to a network, this LED is illuminated green. The light to the right of the

LAN port will be illuminated as well.

6 Error LED

If there is an error, the red error LED will light up. If there is an information, the red error LED will blink.

7 Drive Lock

Push the drive release to the left and swing out the lock to release the drive.

8 USB 2.0 Port

Compatible Buffalo USB hard drives, USB flash drives, digital cameras, and USB UPS connection can be connected.
