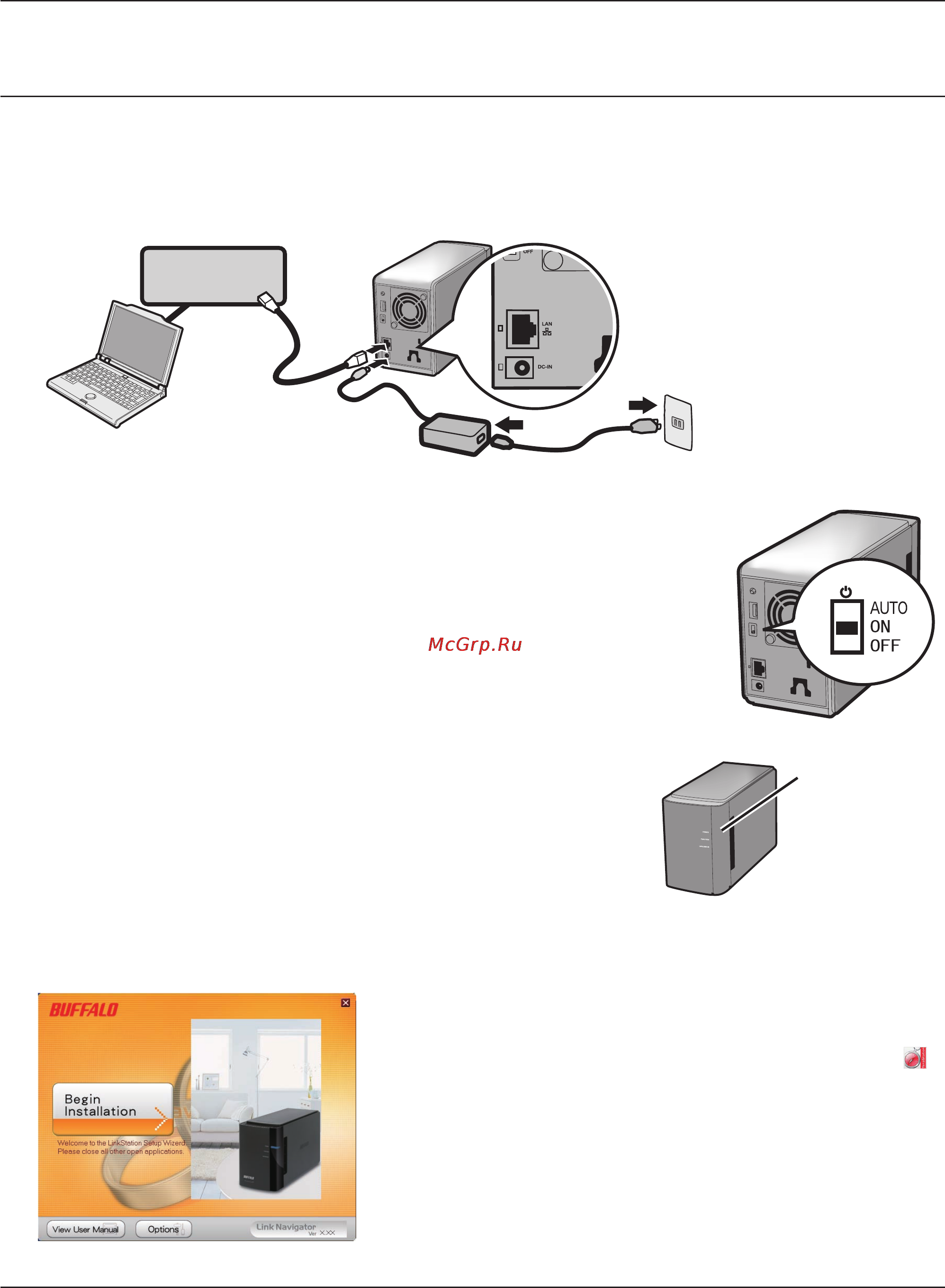

Chapter1 Setup
LinkStation Setup Manual
5
1
Connect an Ethernet cable and AC adaptor to the LinkStation.
The Ethernet cable will “click” and lock in place when inserted properly.
ÈõâïòÒïõôåò
2
Move the power mode switch on the back of the LinkStation to ‘on’.
Note: – Do not set the power mode switch to ‘auto’ at this time. After
the initial installation is complete, then the auto power mode
may be used.
3
Wait until the power LED stops blinking and becomes a steady blue.
4
Insert the Utility CD in your computer’s CD drive. LinkNavigator will launch.
Click ‘Begin Installation’.
LinkNavigator Setup (LS-WXL)
ໃʳʽʡ
If LinkNavigator doesn’t open,
open the Utility CD and double-click ‘LSNavi.exe’ icon .
The screen is an example of execution with Windows.
Power LED
