Appendix

LinkStation Setup Manual

8585

Knob

Tab

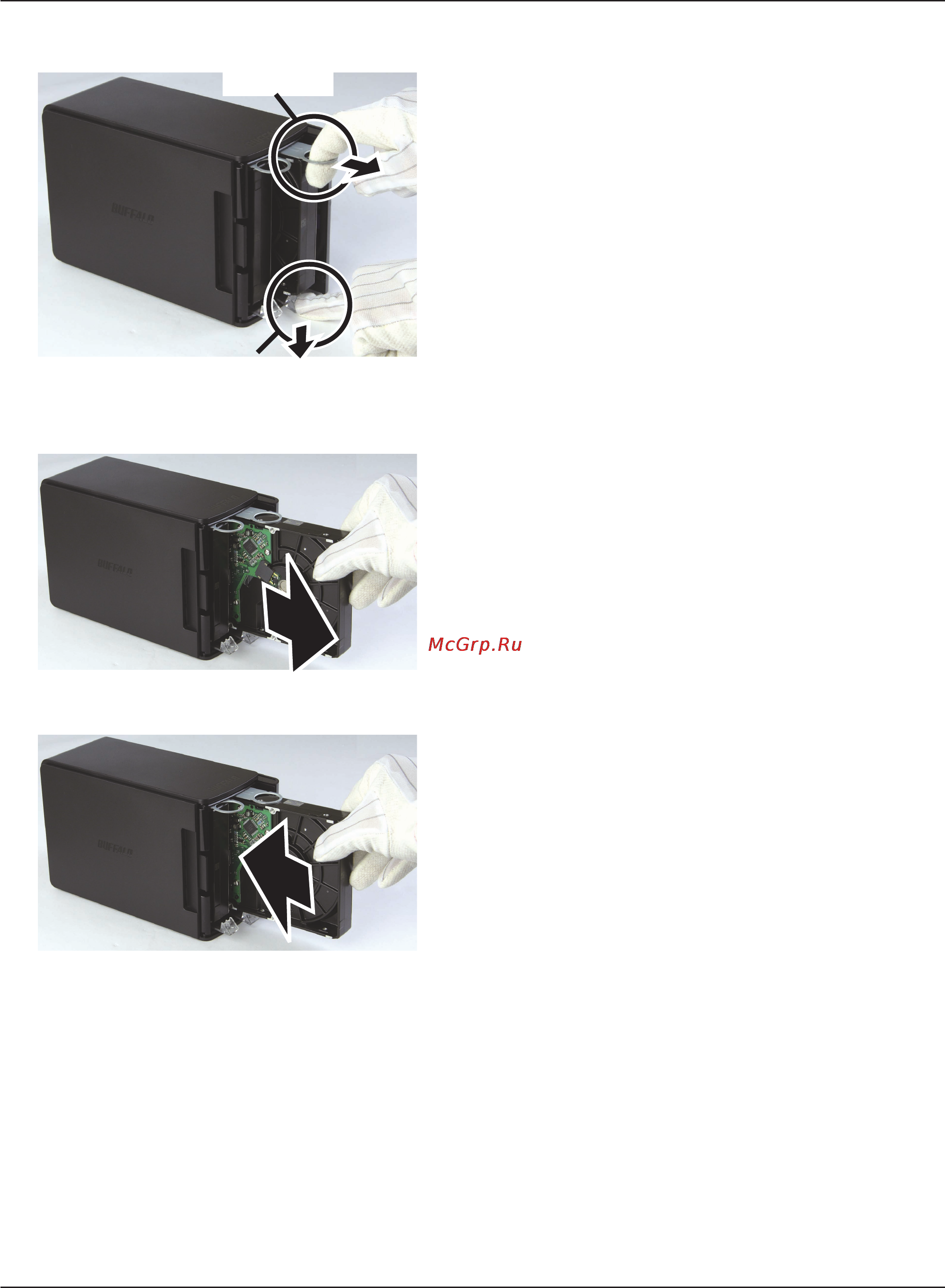

Pull out the tab above the failed drive while press-

ing the release below the drive. The tab will slide

out approximately 2cm ( 1 inch) .

Note: – Be careful so that the finger will not be

caught in knob, tab and hard disks.

Remove the failed drive.

Insert the new drive until it clicks.
