PROBLEM SOLVING

Basic problem solving is within the scope of any user if a few basic rules are followed.

• Get to know the Block Diagram of your console (see page 14).

• Get to know what all controls and/or connections in the system are supposed to do.

• Learn where to look for common trouble spots.

The Block Diagram is a representative sketch of all the components of the console, showing how they

connect together and how the signal flows through the system. Once you have become familiar with the

various component blocks you will find the Block Diagram is quite easy to follow and you will have

gained a valuable understanding of the internal structure of the console.

Each component has a specific function and only by getting to know what each part is supposed to do

will you be able to tell if there is a genuine fault! Many “faults” are the result of incorrect connection or

control settings which may have been overlooked.

Basic Troubleshooting is a process of applying logical thought to the signal path through the console

and tracking down the problem by elimination.

• Swap input connections to check that the source is really present. Check both Mic and Line

inputs.

• Eliminate sections of the channel by using the insert point to re-route the signal to other inputs

that are known to be working.

• Route channels to different outputs or to auxiliary sends to identify problems on the Master

section.

• Compare a suspect channel with an adjacent channel which has been set up identically. Use

PFL to monitor the signal in each section.

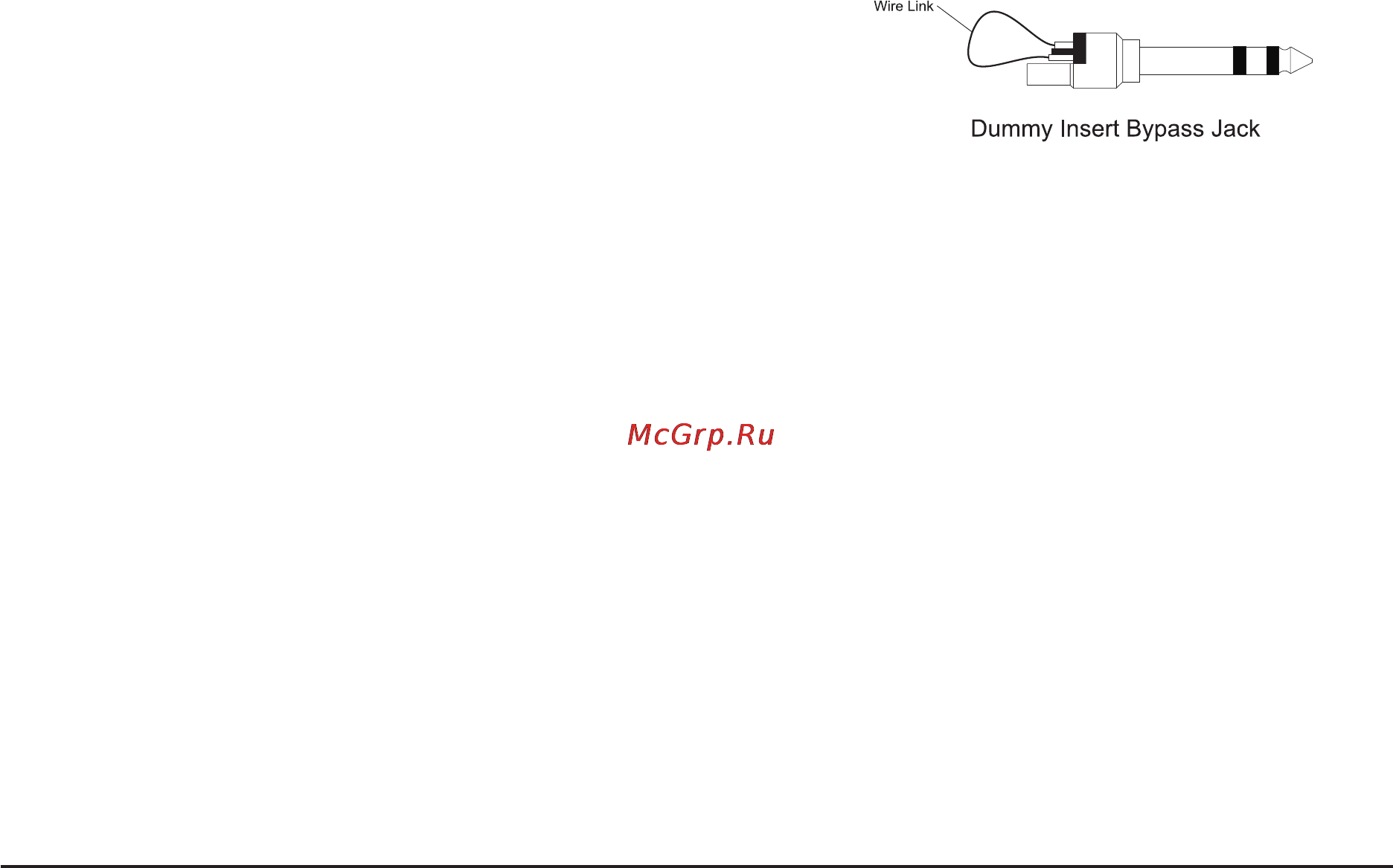

• Insert-point contact problems may be checked by using an insert bypass jack with tip and ring

shorted together as shown below. If the signal appears when the jack is inserted it shows that

there is a problem with the normalling contacts on the jack socket, caused by wear or damage,

or often just dirt or dust. Keep a few in your gig tool box.

If in doubt please contact Soundcraft customer support.

PRODUCTS UNDER WARRANTY

UK customers should contact their local dealer.

Customers outside the UK are requested to contact their territorial distributor who is able to offer support

in the local time zone and language. Please see the distributor listings on our website

(www.soundcraft.com) to locate your local distributor.

OUT-OF-WARRANTY PRODUCTS

For out-of-warranty consoles purchased in the United Kingdom, please contact the Customer Services

Department (e-mail: csd@soundcraft.com) at the factory in Potters Bar, Hertfordshire: Telephone +44

(0)1707 665000.

For all other out-of-warranty consoles, please contact the appropriate territorial distributor.

When mailing or faxing please remember to give as much information as possible. This should include

your name, address and a daytime telephone number. Should you experience any difficulty please

contact Customer Services Department (e-mail: csd@soundcraft.com)
