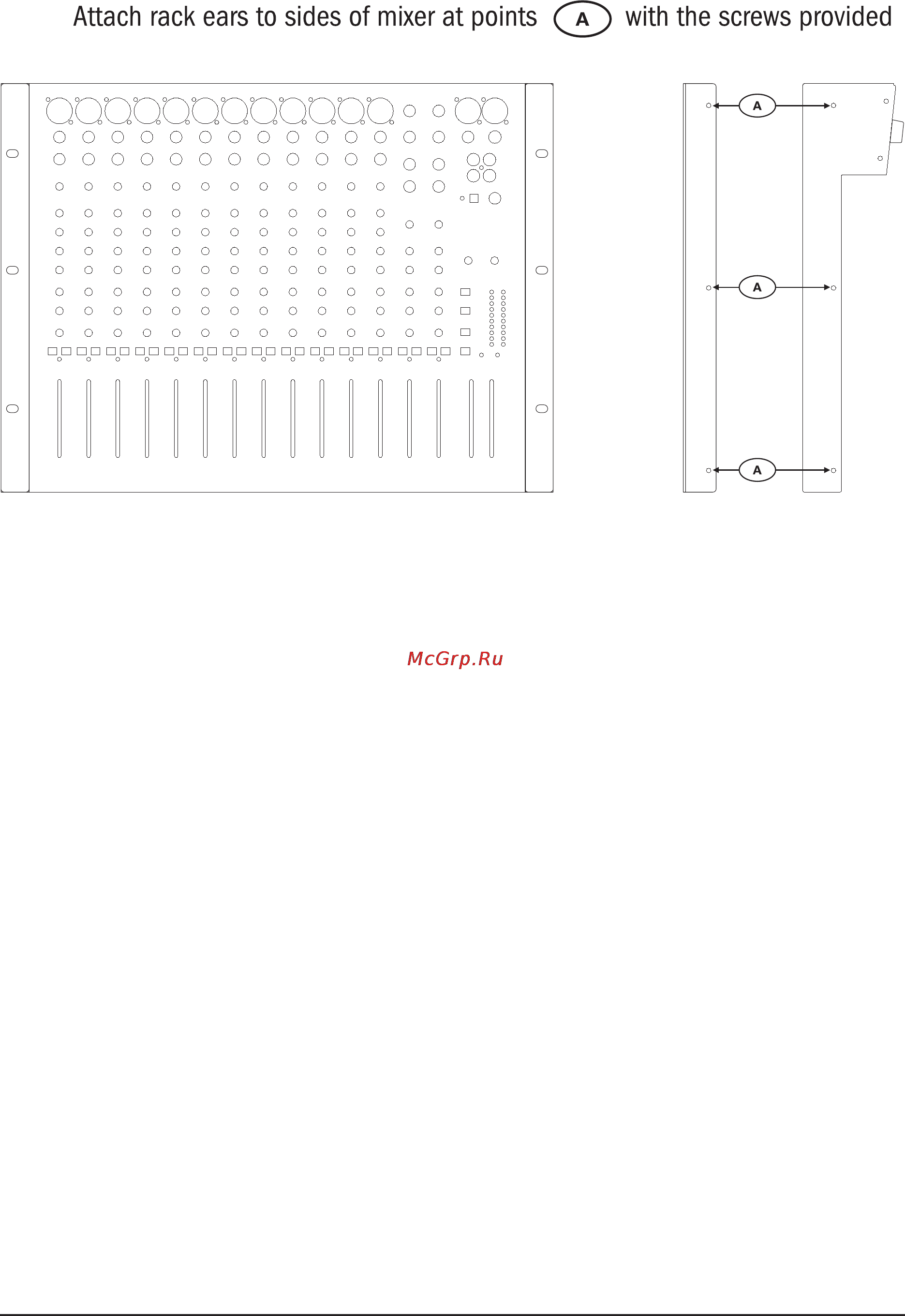

FITTING OPTIONAL RACKMOUNT EARS
Note: a rack extender is included in the EPM6 and EPM8 rack mounting
kits to make the console fit into a 19” frame.
The part numbers for the kits are:
RW5744 RACK MOUNTING KIT - EPM6
RW5745 RACK MOUNTING KIT - EPM8
RW5746 RACK MOUNTING KIT- EPM12
