B. S/PDIF Out

The S/PDIF Out jacks can transmit audio signals to an external decoder for decoding to get the best audio

quality.

1. Connecting a S/PDIF Out Cable:

Connect a S/PDIF optical cable to an external decoder for transmitting the S/PDIF digital audio signals.

S/PDIF Optical Cable

2. Conguring S/PDIF Out:

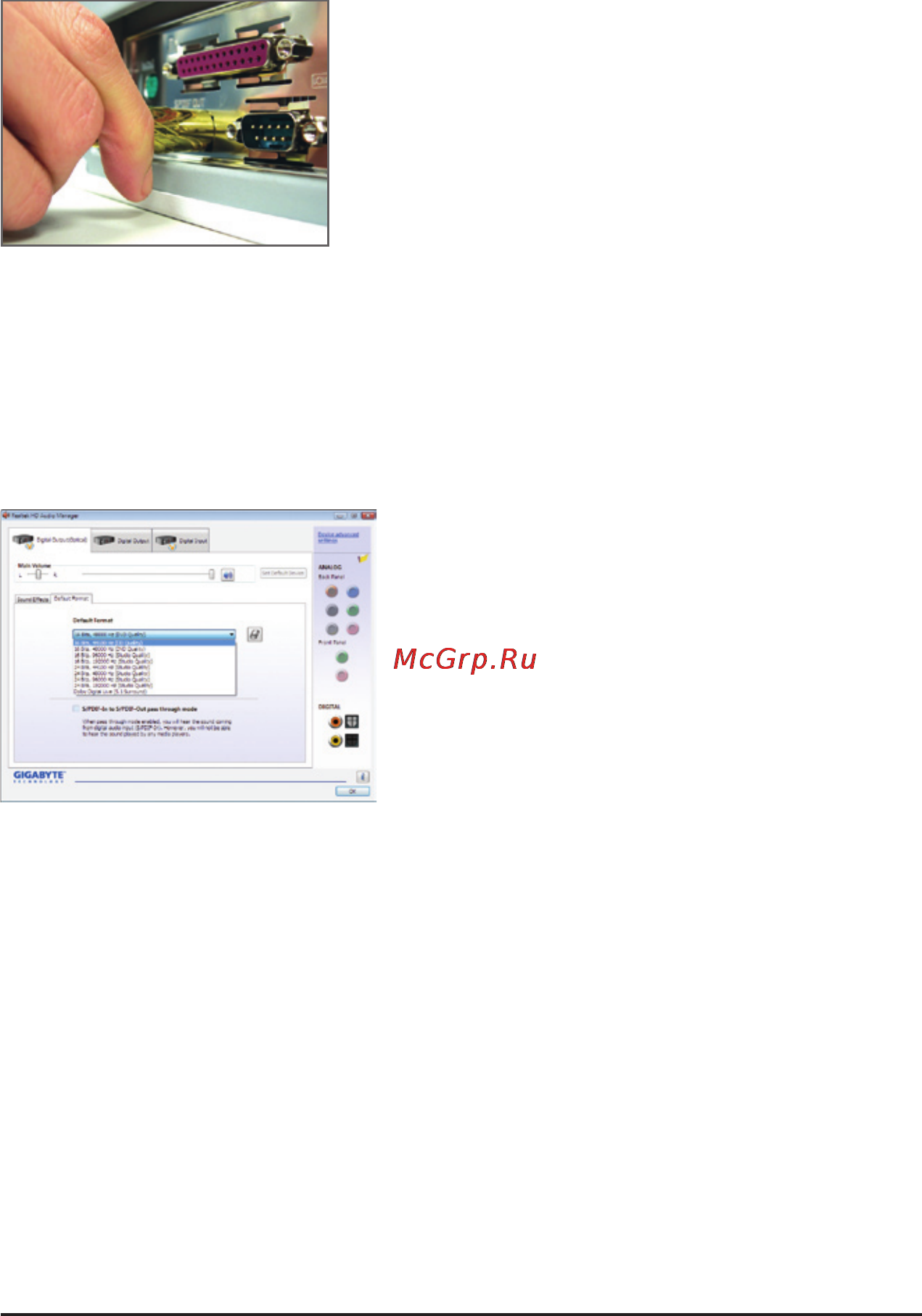

On the Digital Output(Optical) screen

(Note)

, click the Default Format tab and then select the sample rate and

bit depth. Click OK to complete.

(Note) Enter the Digital Output(Optical) screen to congure further settings if you use the S/PDIF Out

connector(s) on the back panel for digital audio output or enter the Digital Output screen if you use

the internal S/PDIF Out connector (SPDIF_O) for digital audio output.
