User's Guide

- 151 -

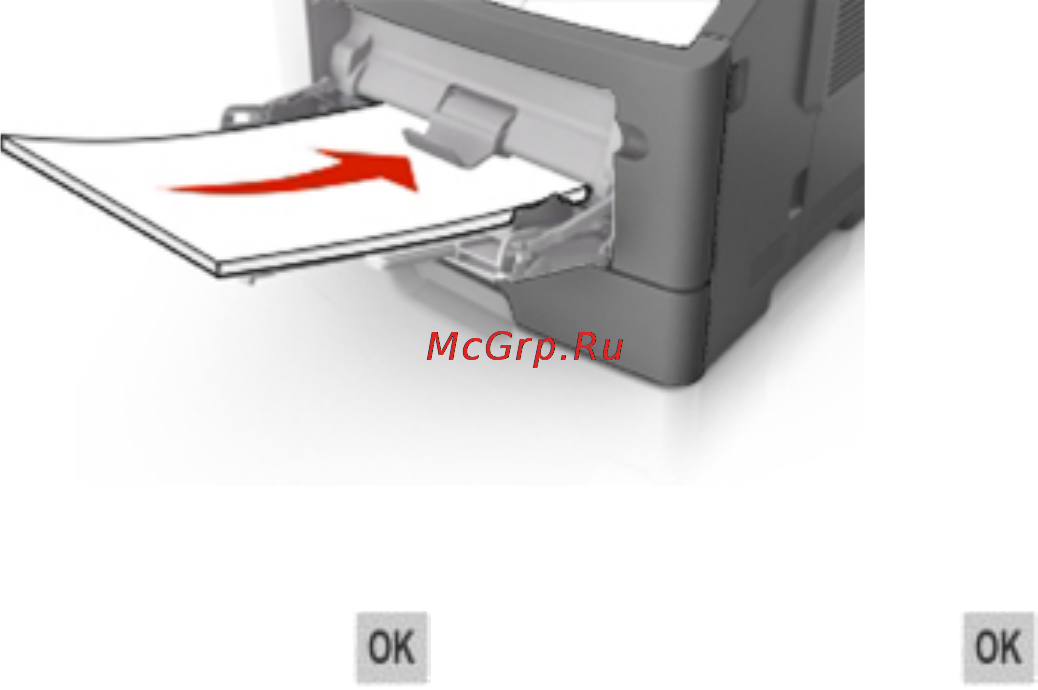

3. Reload paper into the multipurpose feeder.

Note: Make sure the paper guide lightly rests against the edge of the paper.

4. From the printer control panel, select Next >

>Clear the jam, press OK > .
