User's Guide

- 21 -

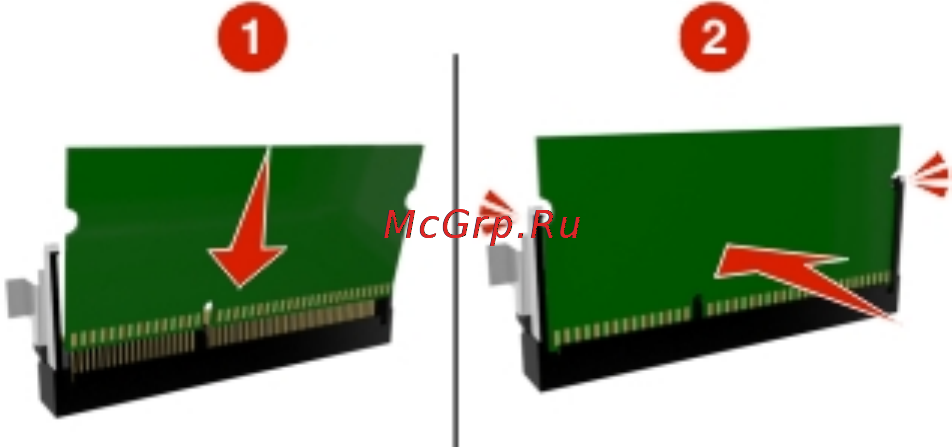

4. Push the memory card straight into the connector and forward into the controller board wall until it

clicks into place.

5. Close the controller board access door.

Note: When the printer software and any hardware options are installed, you may need to manually add

the options in the printer driver to make them available for print jobs.
