User's Guide

- 46 -

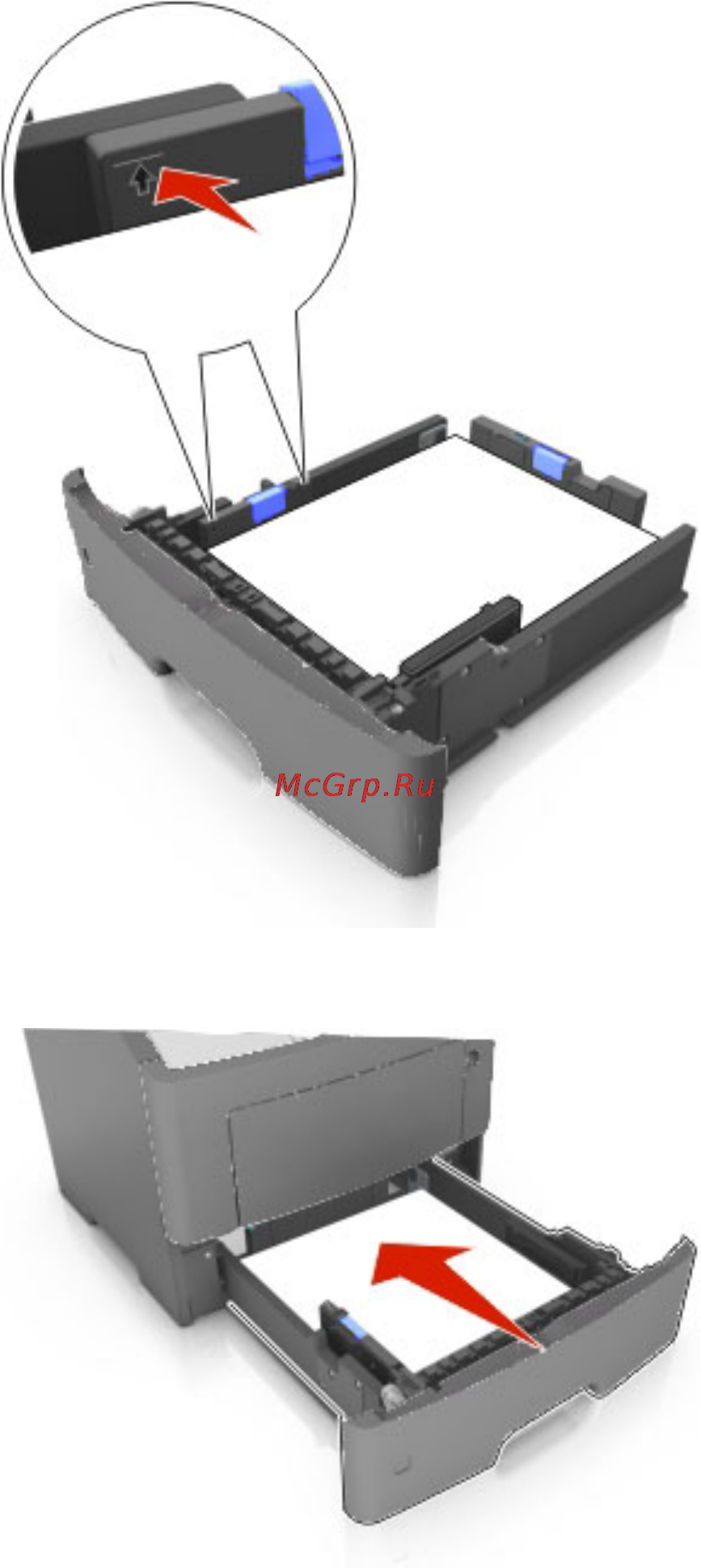

6. Insert the tray.

7. From the printer control panel, set the paper size and type in the Paper menu to match the paper

loaded in the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.
