User's Guide
- 54 -

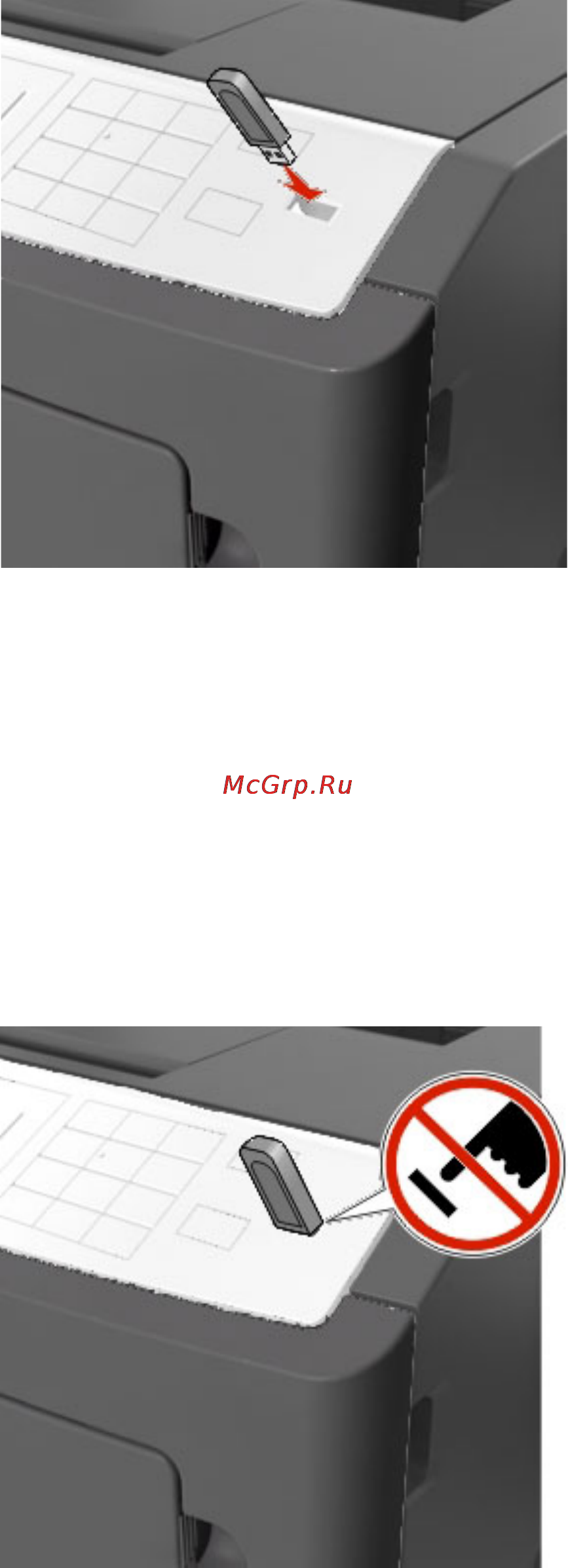

1. Insert a flash drive into the USB port.
Notes:
- A flash drive icon appears on the printer control panel and in the held jobs icon when a flash drive
is installed.
- If you insert the flash drive when the printer requires attention, such as when a jam has occurred,
then the printer ignores the flash drive.
- If you insert the flash drive while the printer is processing other print jobs, then Busy appears.
After these print jobs are processed, you may need to view the held jobs list to print documents
from the flash drive.
Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while
actively printing, reading, or writing from the memory device. Loss of data can occur.
2. From the printer control panel, select the document you want to print.
