SPOKE MAGNET

1. Unscrew the two halves of the magnet and mount

to a spoke on the front wheel of your bicycle. (Fig 3.4)

2. Tighten the screw using a flat head screwdriver to ensure

the magnet cannot move up and down the spoke.

TRANSMITTER UNIT

The wireless transmitter unit is designed to allow easy, fast

fitment and removal to the front wheel forks.

1. Chose a suitable location on your forks that will enable

a good line of sight between the transmitter up to the

main unit with minimal physical obstructions. (Fig 3.5)

2. Ensure the SENSOR text is located on the wheel side

of the fork to ensure a close proximity to the spoke

magnet.

3. Ensure the arrow on the silicon housing is pointing

upward towards the main unit.

4. Pull the silicon strap around the fork and fit it over the

hook. Chose the most suitable one of the two hooks on

the strap, depending on your fork diameter.

5. Once mounted, move the transmitter unit around to

ensure the closest mounting position relative to the

spoke magnet. Optimum sensing distance between the

magnet and the transmitter housing is <5mm. (Fig 3.6)

The silicon strap on the transmitter unit is has two

loops and is designed to accommodate fork diameters

from 20mm up to around 45mm.

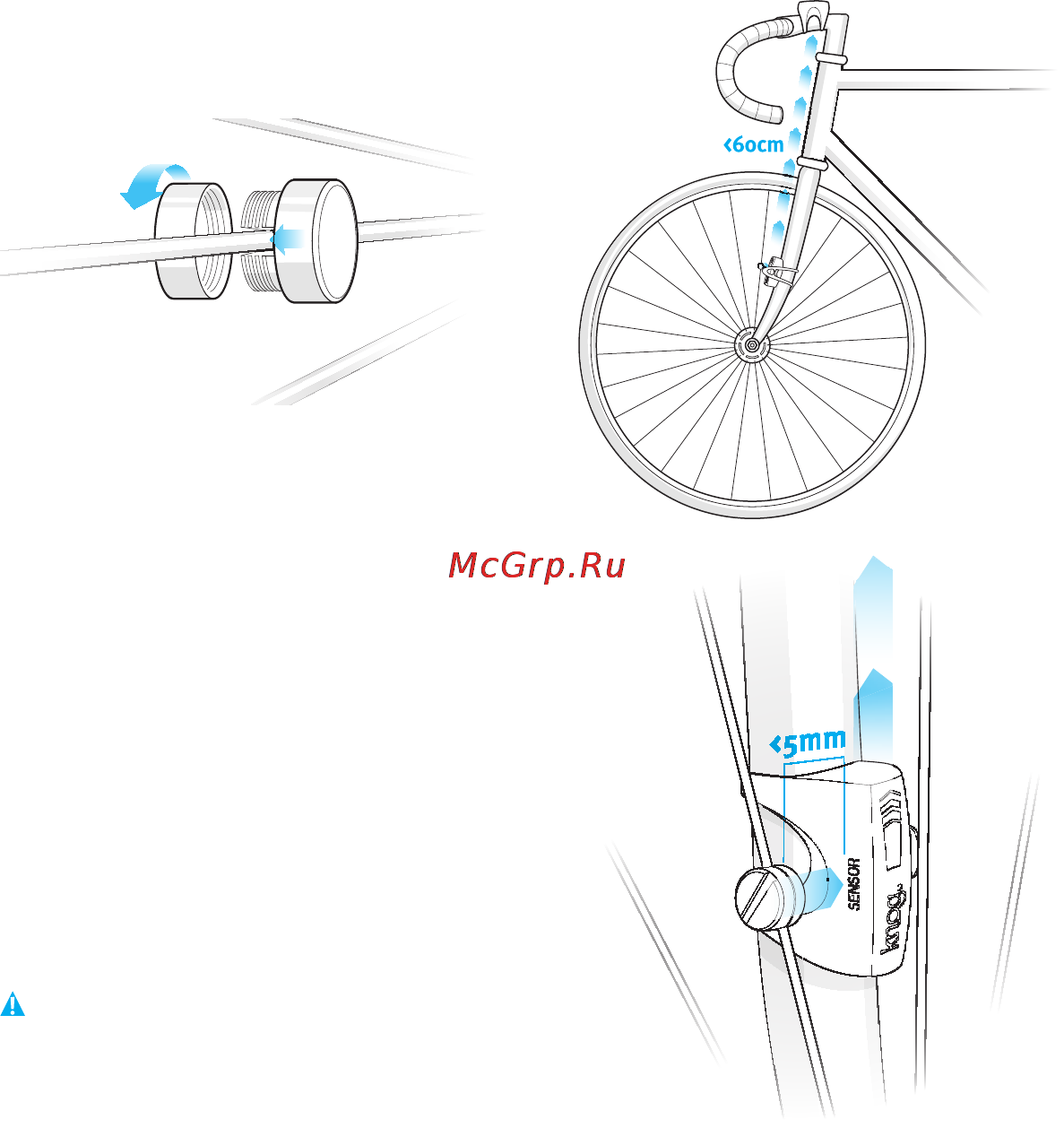

Fig 3.4

Fig 3.5

Fig 3.6

* = N.E.R.D Wireless 12 Function Cycle Computer only
