INSTALLATION
Installation steps:
1. Mount the base (4) on the wall.
2. Adjust the angle of the bracket according to the acoustic environment.
3. Push the Solid Slide (12) into the specific Slot of the monitor speakers.
The M series monitor speakers provide 3 slots for each unit, please choose the most reasonable one to install.
4. Use two screws (11, M3 10) to stop the Solid Slide at the proper position in the Slot.
5. Insert the se another screw (9, M6 1.0PH 10) toConnecting Lever (10) of the accessory into its Fixing Lever (8), then u
fasten them.
6. It is done, now, you have got the best installation.
Caution: While mounting the monitor speaker on the wall, please ensure the wall is strong enough to support it.
Consult the installation specialist or the dealer for further instruction.
Installation examples:
Since you have had your own monitor speakers, how to install them into your audio environment, place them on a
shelf, or mount them on the wall? The M series monitor speakers give you the versatile choices.
For wall mounting application, we strongly suggest you to use the optional wall mount kit manufactured by ALTO.

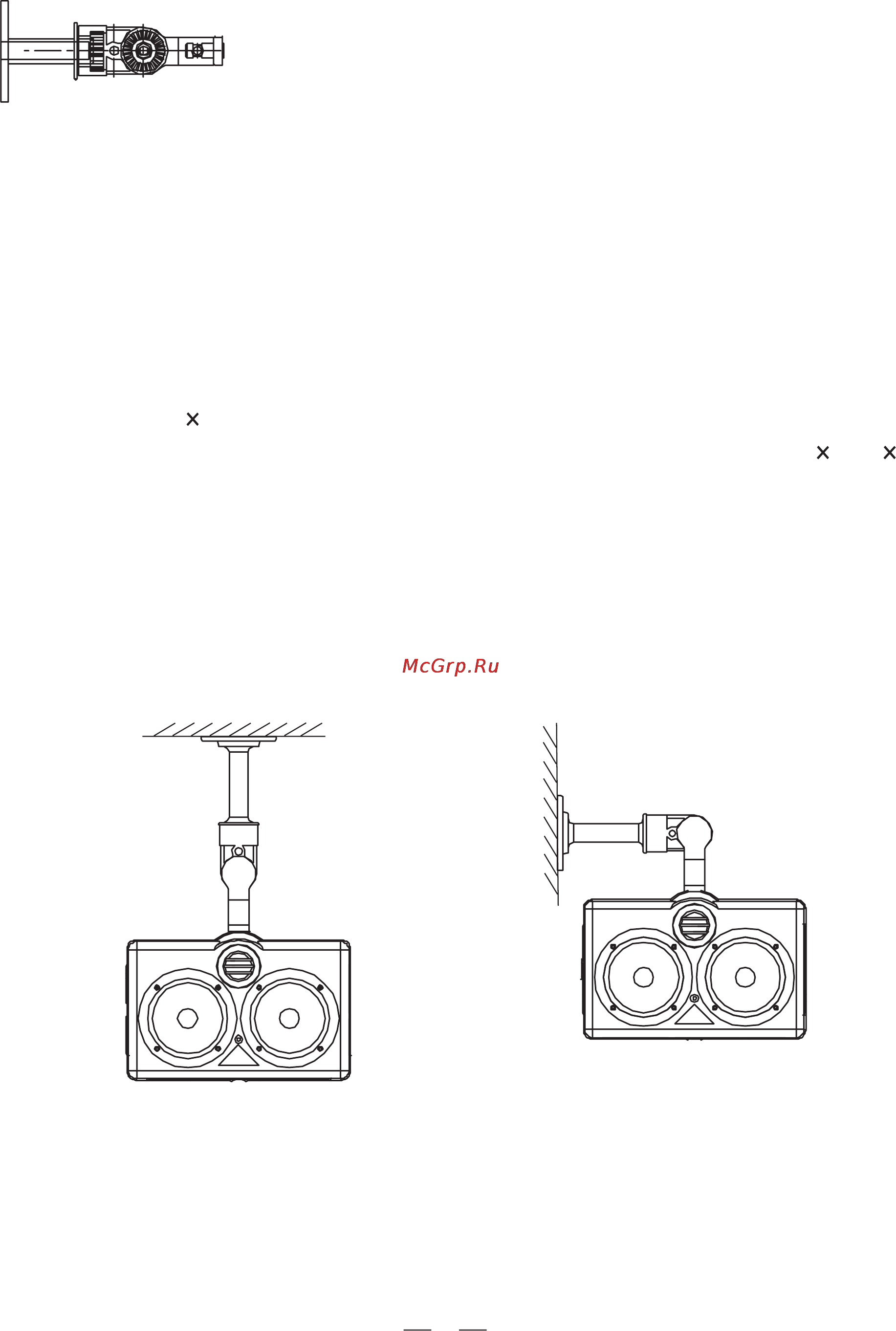

Side View
Accessory (optional): YS-60
Adjustable angle wall mount bracket
Detail information on how to install it, please refer to the appendix.
