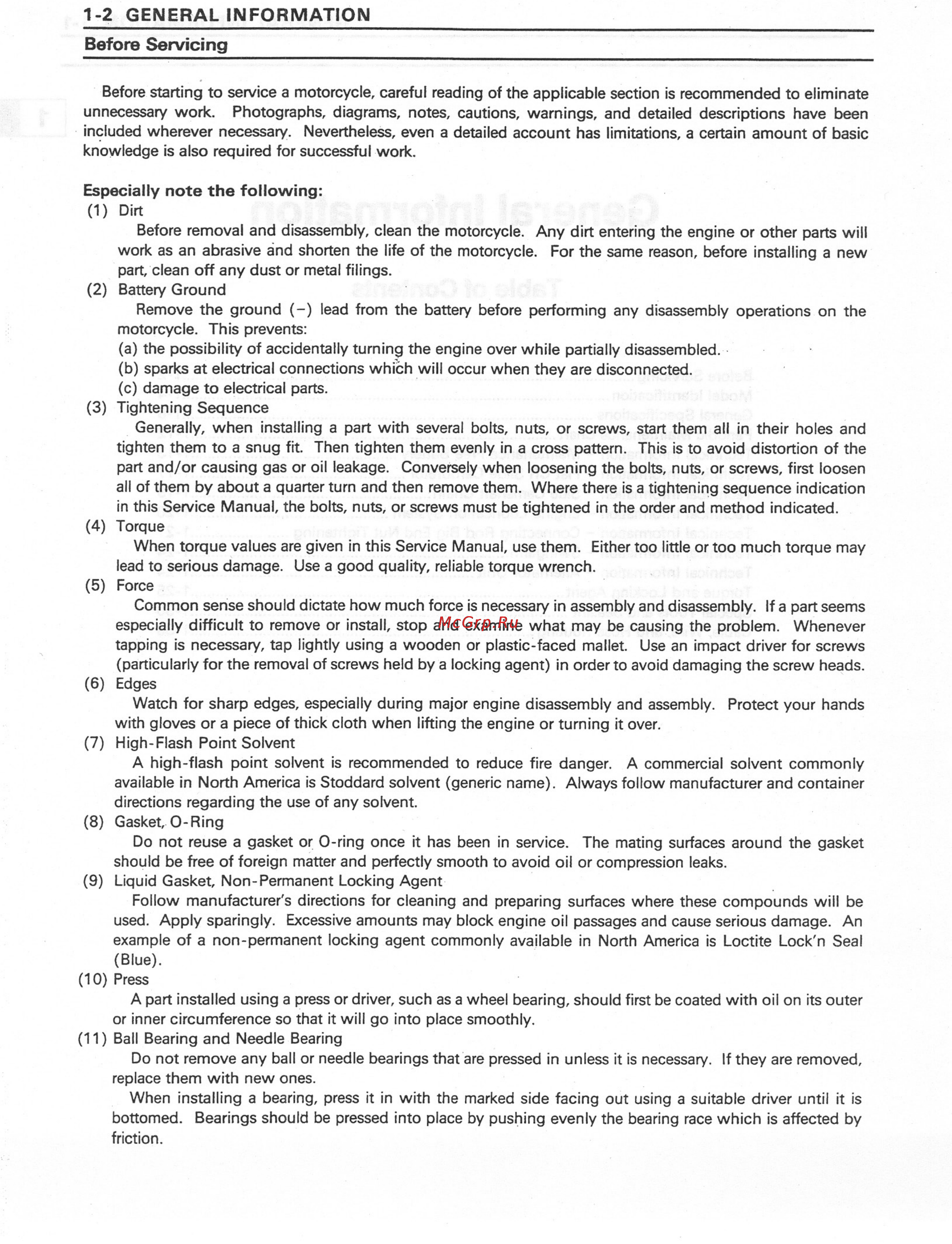

1 2 GENERAL INFORMATION Before Servicing Before starting to service a motorcycle careful reading of the applicable section is recommended to eliminate unnecessary work Photographs diagrams notes cautions warnings and detailed descriptions have been included wherever necessary Nevertheless even a detailed account has limitations a certain amount of basic knowledge is also required for successful work Especially note the following 1 Dirt Before removal and disassembly clean the motorcycle Any dirt entering the engine or other parts will work as an abrasive and shorten the life of the motorcycle For the same reason before installing a new part clean off any dust or metal filings 2 Battery Ground Remove the ground lead from the battery before performing any disassembly operations on the motorcycle This prevents a the possibility of accidentally turning the engine over while partially disassembled b sparks at electrical connections which will occur when they are disconnected c damage to electrical parts 3 Tightening Sequence Generally when installing a part with several bolts nuts or screws start them all in their holes and tighten them to a snug fit Then tighten them evenly in a cross pattern This is to avoid distortion of the part and or causing gas or oil leakage Conversely when loosening the bolts nuts or screws first loosen all of them by about a quarter turn and then remove them Where there is a tightening sequence indication in this Service Manual the bolts nuts or screws must be tightened in the order and method indicated 4 Torque When torque values are given in this Service Manual use them Either too little or too much torque may lead to serious damage Use a good quality reliable torque wrench 5 Force Common sense should dictate how much force is necessary in assembly and disassembly If a part seems especially difficult to remove or install stop and examine what may be causing the problem Whenever tapping is necessary tap lightly using a wooden or plastic faced mallet Use an impact driver for screws particularly for the removal of screws held by a locking agent in order to avoid damaging the screw heads 6 Edges Watch for sharp edges especially during major engine disassembly and assembly Protect your hands with gloves or a piece of thick cloth when lifting the engine or turning it over 7 High Flash Point Solvent A high flash point solvent is recommended to reduce fire danger A commercial solvent commonly available in North America is Stoddard solvent generic name Always follow manufacturer and container directions regarding the use of any solvent 8 Gasket O Ring Do not reuse a gasket or O ring once it has been in service The mating surfaces around the gasket should be free of foreign matter and perfectly smooth to avoid oil or compression leaks 9 Liquid Gasket Non Permanent Locking Agent Follow manufacturer s directions for cleaning and preparing surfaces where these compounds will be used Apply sparingly Excessive amounts may block engine oil passages and cause serious damage An example of a non permanent locking agent commonly available in North America is Loctite Lock n Seal Blue 10 Press A part installed using a press or driver such as a wheel bearing should first be coated with oil on its outer or inner circumference so that it will go into place smoothly 11 Ball Bearing and Needle Bearing Do not remove any ball or needle bearings that are pressed in unless it is necessary If they are removed replace them with new ones When installing a bearing press it in with the marked side facing out using a suitable driver until it is bottomed Bearings should be pressed into place by pushing evenly the bearing race which is affected by friction
