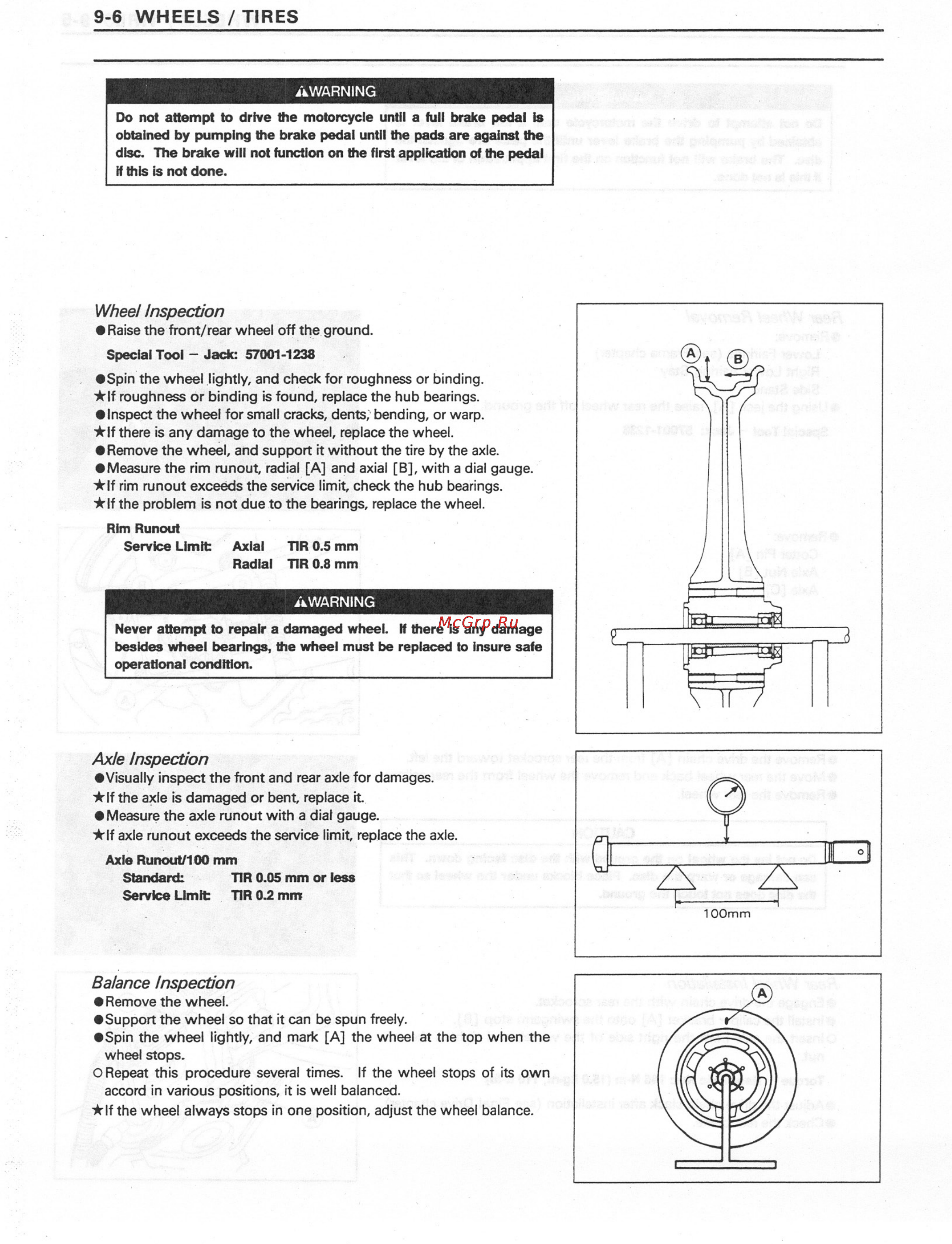

9 6 WHEELS TIRES AWARNING Do not attempt to drive the motorcycle until a full brake pedal is obtained by pumping the brake pedal until the pads are against the disc The brake will not function on the first application of the pedal if this is not done Wheel Inspection Raise the front rear wheel off the ground Special Tool Jack 57001 1238 Spin the wheel lightly and check for roughness or binding If roughness or binding is found replace the hub bearings Inspect the wheel for small cracks dents bending or warp If there is any damage to the wheel replace the wheel Remove the wheel and support it without the tire by the axle Measure the rim runout radial A and axial B with a dial gauge If rim runout exceeds the service limit check the hub bearings If the problem is not due to the bearings replace the wheel Rim Runout Service Limit Axial HR 0 5 mm Radial TIR 0 8 mm AWARNING Never attempt to repair a damaged wheel If there is any damage besides wheel bearings the wheel must be replaced to insure safe operational condition Axle Inspection Visually inspect the front and rear axle for damages If the axle is damaged or bent replace it Measure the axle runout with a dial gauge If axle runout exceeds the service limit replace the axle Axle Runout 100 mm Standard TIR 0 05 mm or less Service Limit TIR 0 2 mm Balance Inspection Remove the wheel Support the wheel so that it can be spun freely Spin the wheel lightly and mark A the wheel at the top when the wheel stops O Repeat this procedure several times If the wheel stops of its own accord in various positions it is well balanced If the wheel always stops in one position adjust the wheel balance
