Yamaha XJR1300 (L) (1999) [148/346] Clutch
![Yamaha XJR1300 (L) (1999) [148/346] Clutch](/views2/1121392/page148/bg94.png)
4-32
Order Job/Part Q’ty Remarks
1
2
3

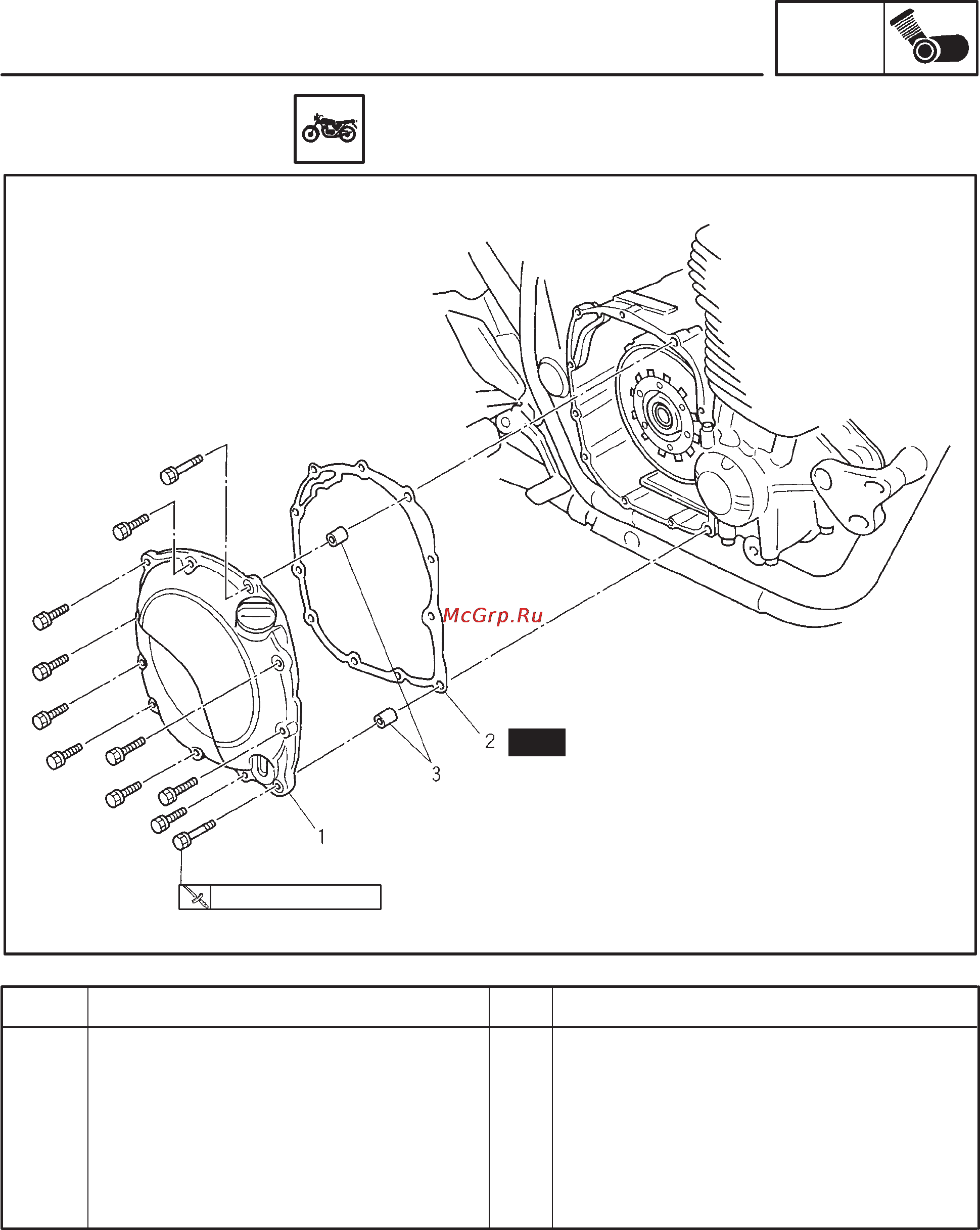

Removing the clutch cover.
Engine oil
Clutch cover
Gasket
Dowel pins
1
1
2
Remove the parts in the order listed.
Drain
For installation, reverse the removal
procedure.
10 Nm (1.0 mkg)
New
ENG
CLUTCH
EAS00273
CLUTCH
CLUTCH COVER
