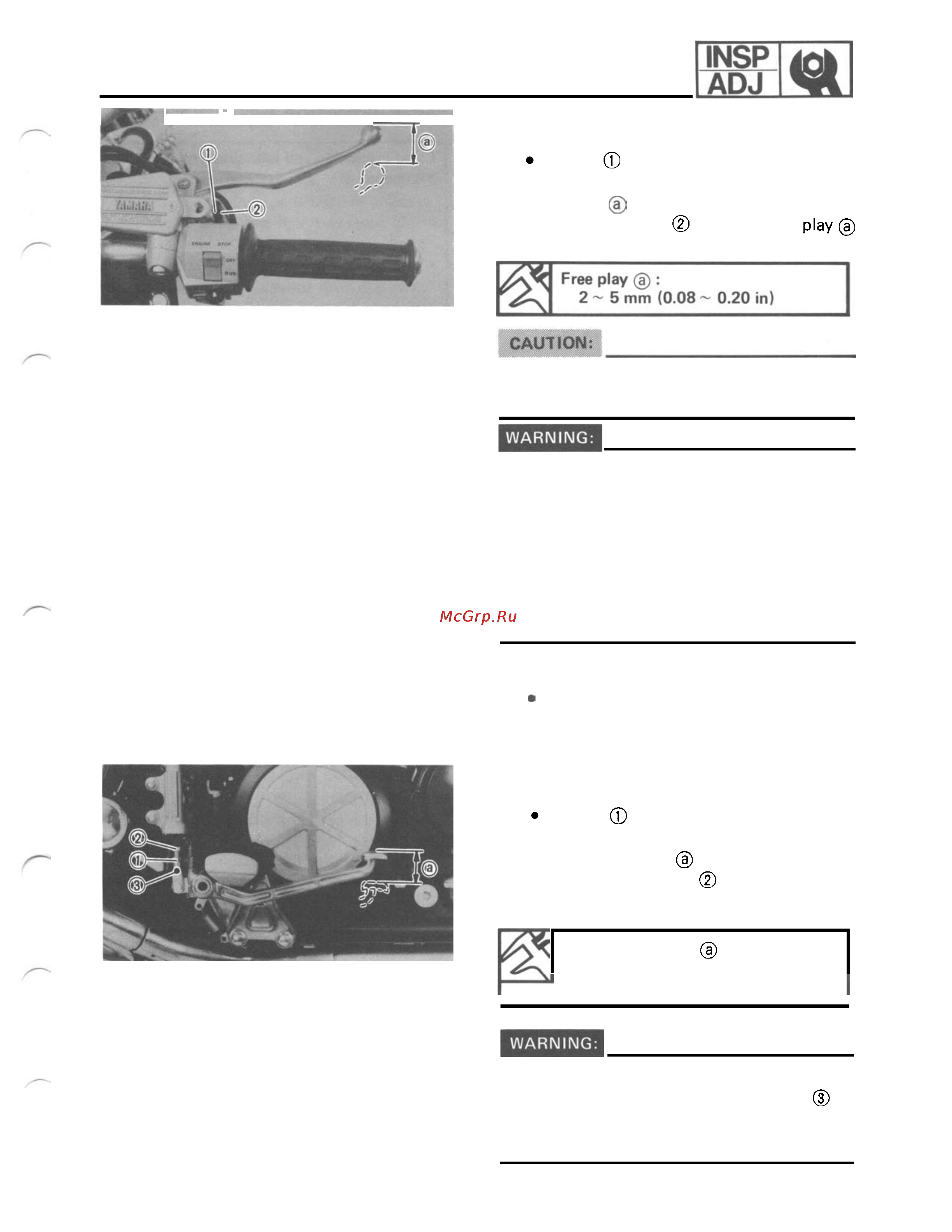

FRONT BRAKE ADJUSTMENT/REAR BRAKE ADJUSTMENT
FRONT BRAKE ADJUSTMENT
1.
Loosen:
2.
Adjust:
Lockunt
*Free play
Turn the adjuster until the free
is
within the specified limits.
Proper lever free play
is
essential to avoid
excessive brake drag.
A
soft
or spongy feeling in the brake lever
can indicate the presence of air in the brake
system. This air must be removed by bleeding
the brake system before the motorcycle
is
operated. Air in the system will cause greatly
diminished braking capability and can result in
loss
of control and an accident. Inspect and
bleed the system i f necessary.
3.
Tighten:
Locknut
REAR BRAKE ADJUSTMENT
1.
Loosen:
2.
Adjust:
Locknut
*Brake pedal height
Turn the adjuster until the brake
pedal position
is
at
the specified height.
Brake Pedal Height
:
20
mm
(0.8
in)
Below the Top of the Footrest
After adjusting the brake pedal height, visually
check the adjuster end through the hole
of
the joint holder. The adjuster end must appear
within this hole.
2
-
22
