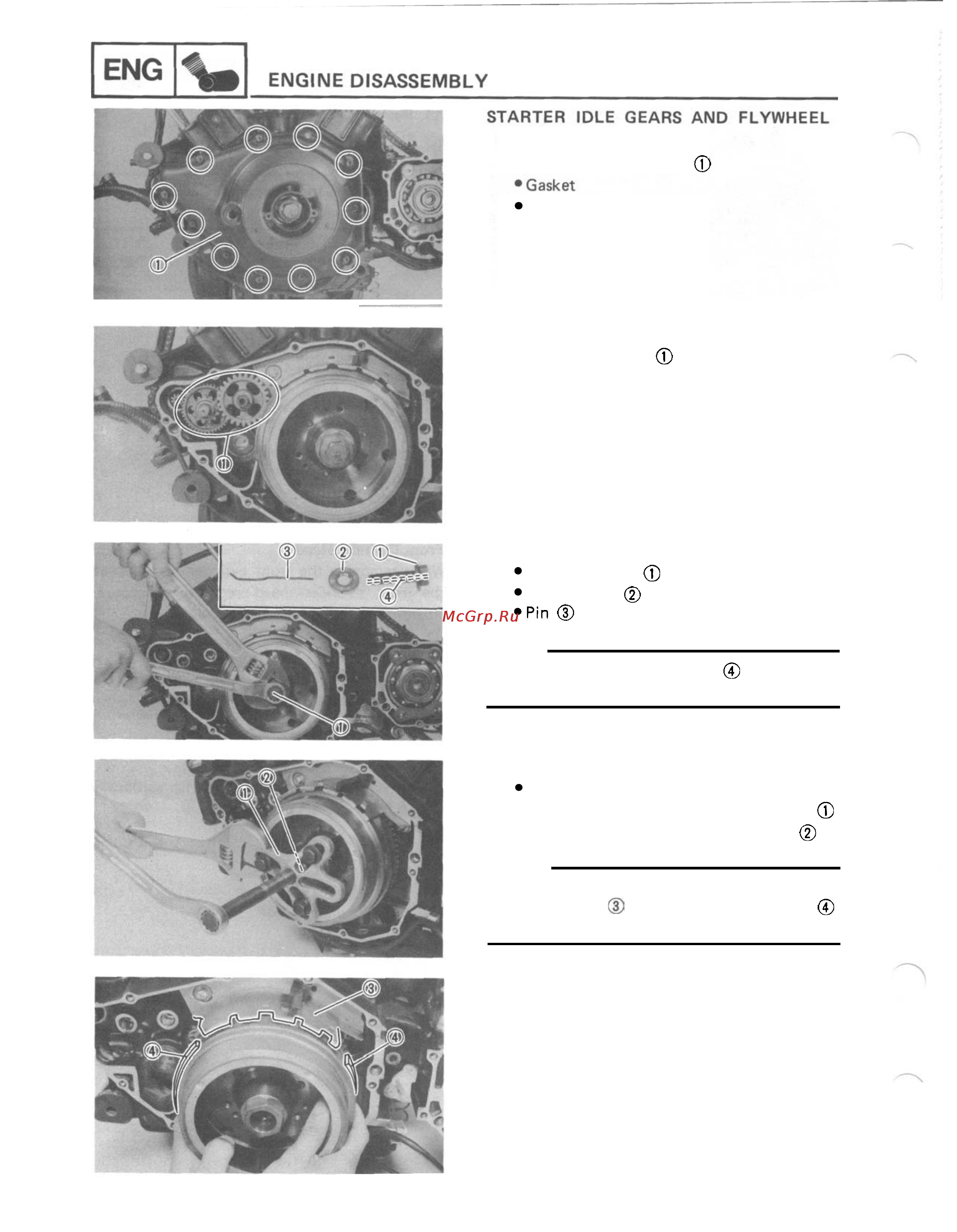

1.
Remove:
*Crankcase cover
(left)
Dowel pins
2. Remove:
*Starter idle
gears
3. Remove:
Bolt (flywheel)
Plain washer
NOTE:
Check for clog of oil passage in the bolt.
If
any, clean the oil passage.
4.
Remove:
Flywheel
Use the Flywheel Puller (YU-33270)
with the Puller Adapter (YM
-
33282)
.
NOTE:
When removing the flywheel, do not allow the
oil baffle plate
t o touch the projections
on the flywheel.
3
-
1
1
