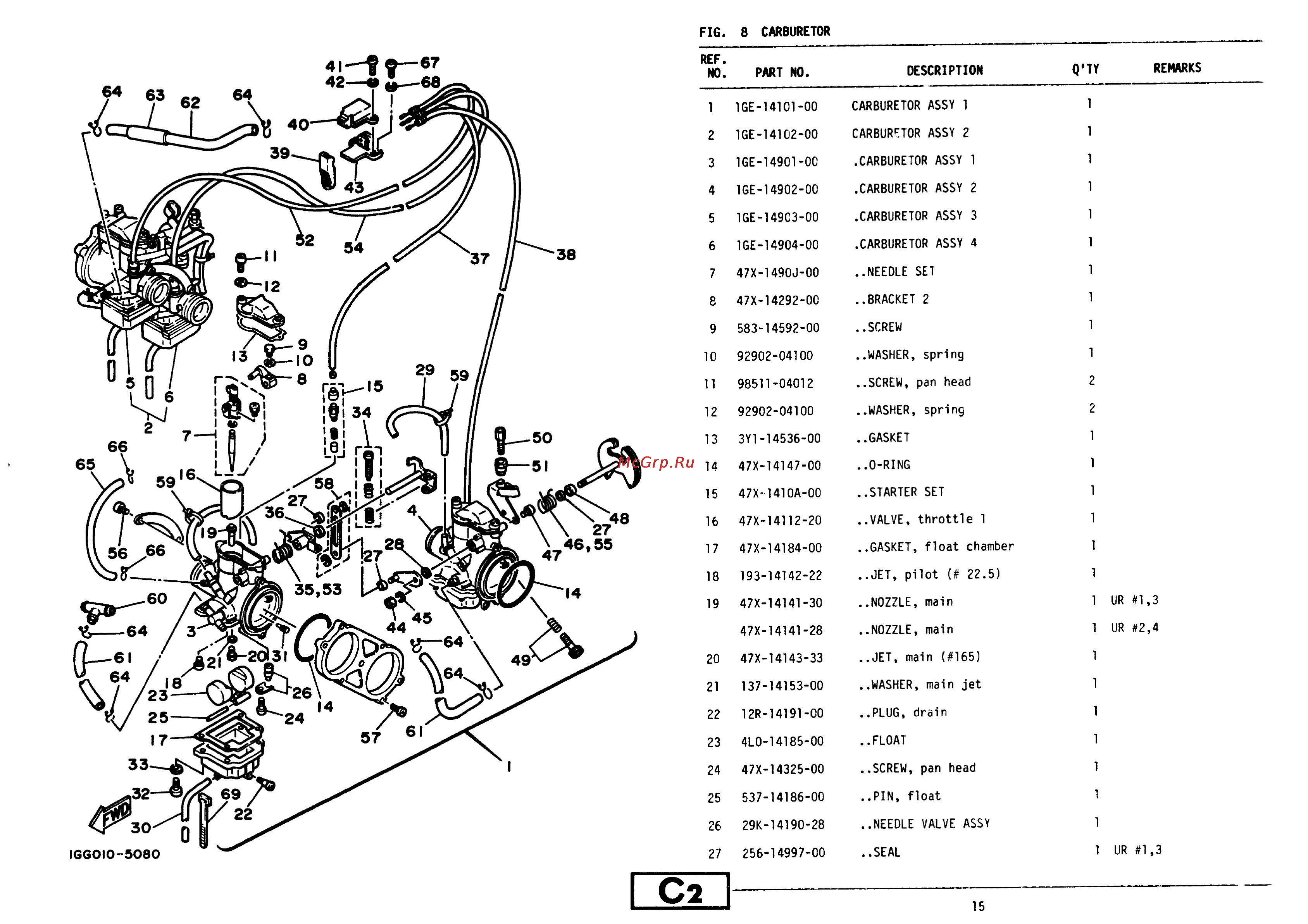

FIG 8 CARBURETOR C2 REF NO PART NO 1 1 GE 14101 00 CARBURETOR ASSY 1 1 2 IGE 14102 00 CARBURETOR ASSY 2 1 3 IGE 14901 00 CARBURETOR ASSY 1 1 4 IGE 14902 00 CARBURETOR ASSY 2 1 5 IGE 14903 00 CARBURETOR ASSY 3 1 6 IGE 14904 00 CARBURETOR ASSY 4 1 7 47X 1490J 00 NEEDLE SET 1 8 47X 14292 00 BRACKET 2 1 9 583 14592 00 SCREW 1 10 92902 04100 WASHER spring 1 11 98511 04012 SCREW pan head 2 12 92902 04100 WASHER spring 2 13 3Y1 14536 00 GASKET 1 14 47X 14147 00 O RING 1 15 47X 1410A 00 STARTER SET 1 16 47X 14112 20 VALVE throttle 1 1 17 47X 14184 00 GASKET float chamber 1 18 193 14142 22 JET pilot 22 5 1 19 47X 14141 30 NOZZLE main 1 UR 1 3 47X 14141 28 NOZZLE main 1 UR 2 4 20 47X 14143 33 JET main 165 1 21 137 14153 00 WASHER main jet 1 22 12R 14191 00 PLUG drain 1 23 4L0 14185 00 FLOAT 1 24 47X 14325 00 SCREW pan head 1 25 537 14186 00 PIN float 1 26 29K 14190 28 NEEDLE VALVE ASSY 1 27 256 14997 00 SEAL Q TY DESCRIPTION 1 UR 15 REMARKS 1 3
