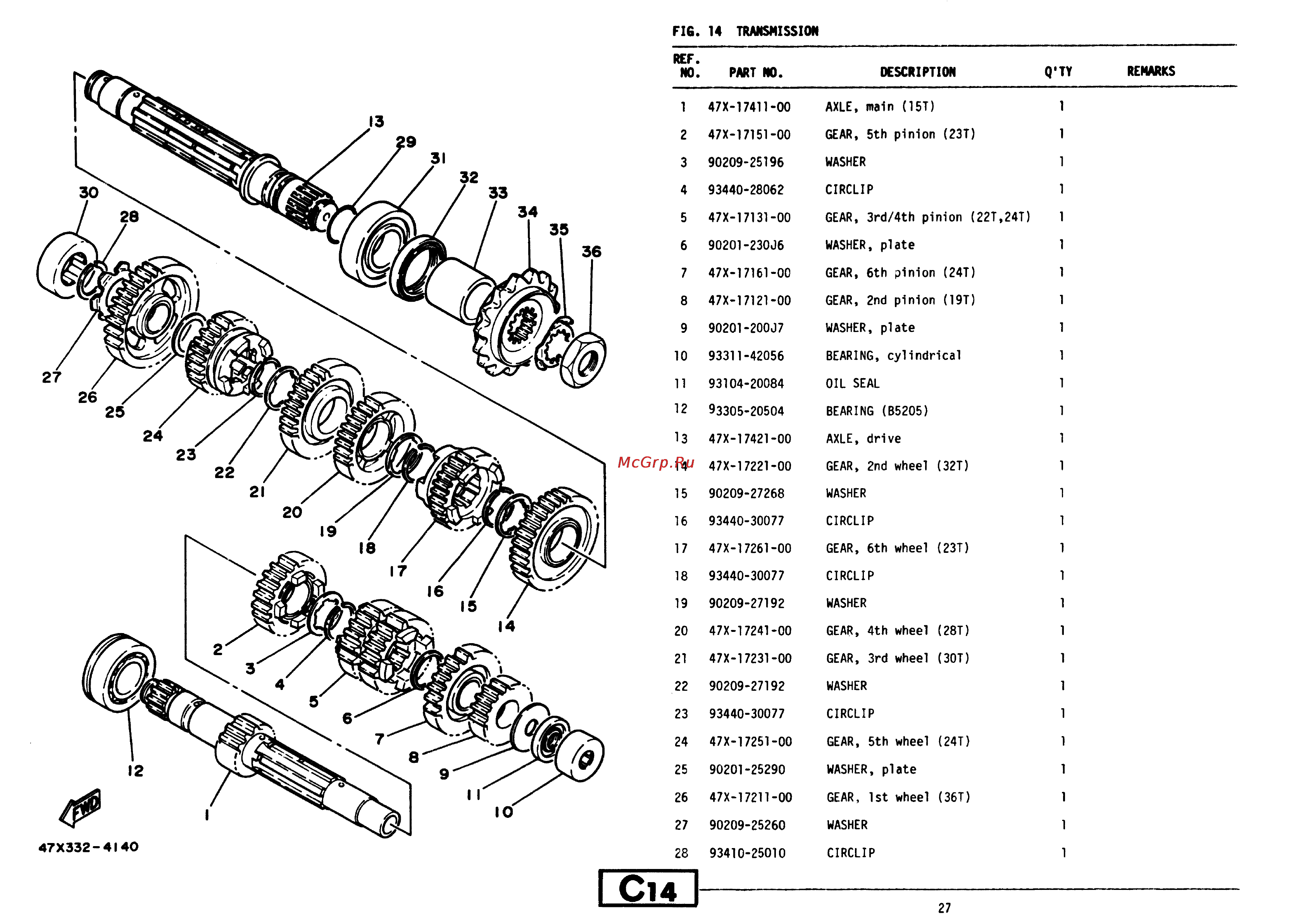

FIG 14 TRANSMISSION REF NO 47X332 4140 C14 DESCRIPTION PART NO Q TY 1 47X 17411 00 AXLE main 15T 1 2 47X 17151 OO GEAR 5th pinion 23T 1 3 90209 25196 WASHER 1 4 93440 28062 CIRCLIP 1 5 47X 17131 OO GEAR 3rd 4th pinion 22T 24T 1 6 90201 230J6 WASHER plate 1 7 47X 17161 00 GEAR 6th pinion 24T 1 8 47X 17121 OO GEAR 2nd pinion 19T 1 9 90201 200J7 WASHER plate 1 10 93311 42056 BEARING cylindrical 1 11 93104 20084 OIL SEAL 1 12 93305 20504 BEARING B5205 1 13 47X 17421 00 AXLE drive 1 14 47X 17221 00 GEAR 2nd wheel 32T 1 15 90209 27268 WASHER 1 16 93440 30077 CIRCLIP 1 17 47X 17261 00 GEAR 6th wheel 23T 1 18 93440 30077 CIRCLIP 1 19 90209 27192 WASHER 1 20 47X 17241 00 GEAR 4th wheel 28T 1 21 47X 17231 00 GEAR 3rd wheel 30T 1 22 90209 27192 WASHER 1 23 93440 30077 CIRCLIP 1 24 47X 17251 00 GEAR 5th wheel 24T 1 25 90201 25290 WASHER plate 1 26 47X 17211 00 GEAR 1st wheel 36T 1 27 90209 25260 WASHER 1 28 93410 25010 CIRCLIP 1 REMARKS
