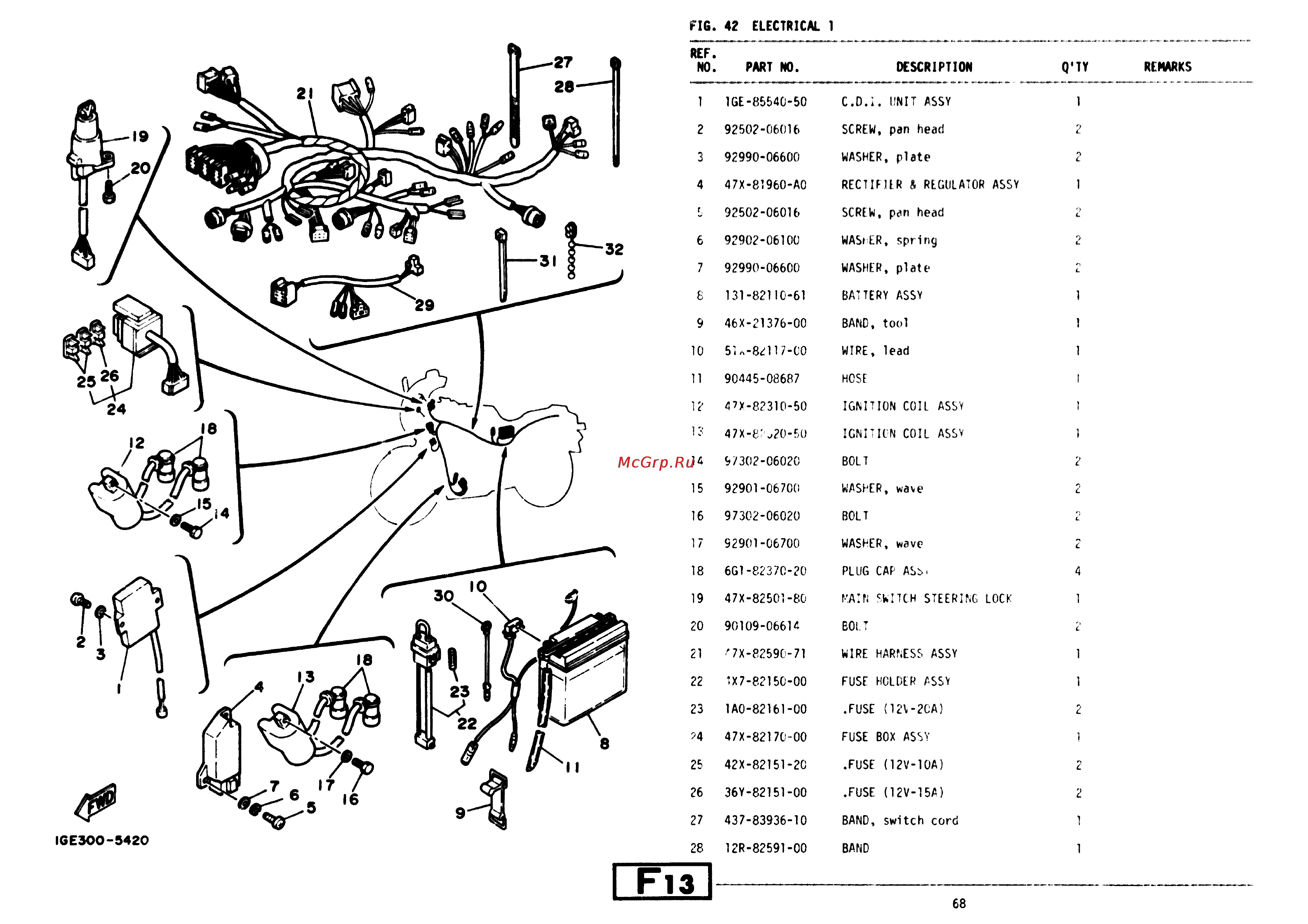

FIG 42 ELECTRICAL 1 REF NO IGE300 5420 F13 PART NO DESCRIPTION Q TY 1 1GE 85540 50 C D I UNIT ASSY 1 2 92502 06016 SCREW pan head 2 3 92990 06600 WASHER plate 2 4 47X 81960 A0 RECTIFIER REGULATORASSY 1 C 92502 06016 SCREW pan head 2 6 92902 06100 WASnER spring d 7 92990 06600 WASHER plate 4 8 131 82110 61 BATTERY ASSY 1 9 46X 21376 00 BAND tool 1 10 51A 82117 00 WIRE lead 1 11 90445 08687 HOSE 1 12 47X 82310 50 IGNITION COIL ASSY 1 13 47X 8 20 50 IGNITION COIL ASSY 1 14 97302 06020 BOLT 2 15 92901 06700 WASHER wave 2 16 97302 06020 BOLT 2 17 92901 06700 WASHER wave 2 18 6G1 82370 20 PLUG CAP ASi 4 19 47X 82501 80 KAIN SWITCH STEERINGLOCK 1 20 90109 06614 BOLT 4 21 7X 82590 71 WIRE HARNESS ASSY 1 22 1X7 82150 00 FUSE HOLDER ASSY 1 23 1 AO 82161 00 FUSE 12V 2CA 2 24 47X 82170 00 FUSE BOX ASSY 1 25 42X 82151 20 FUSE 12V 10A 2 26 36Y 82151 00 FUSE 12V 15A 2 27 437 83936 10 BAND switch cord i 28 12R 82591 00 BAND 1 68 REMARKS
