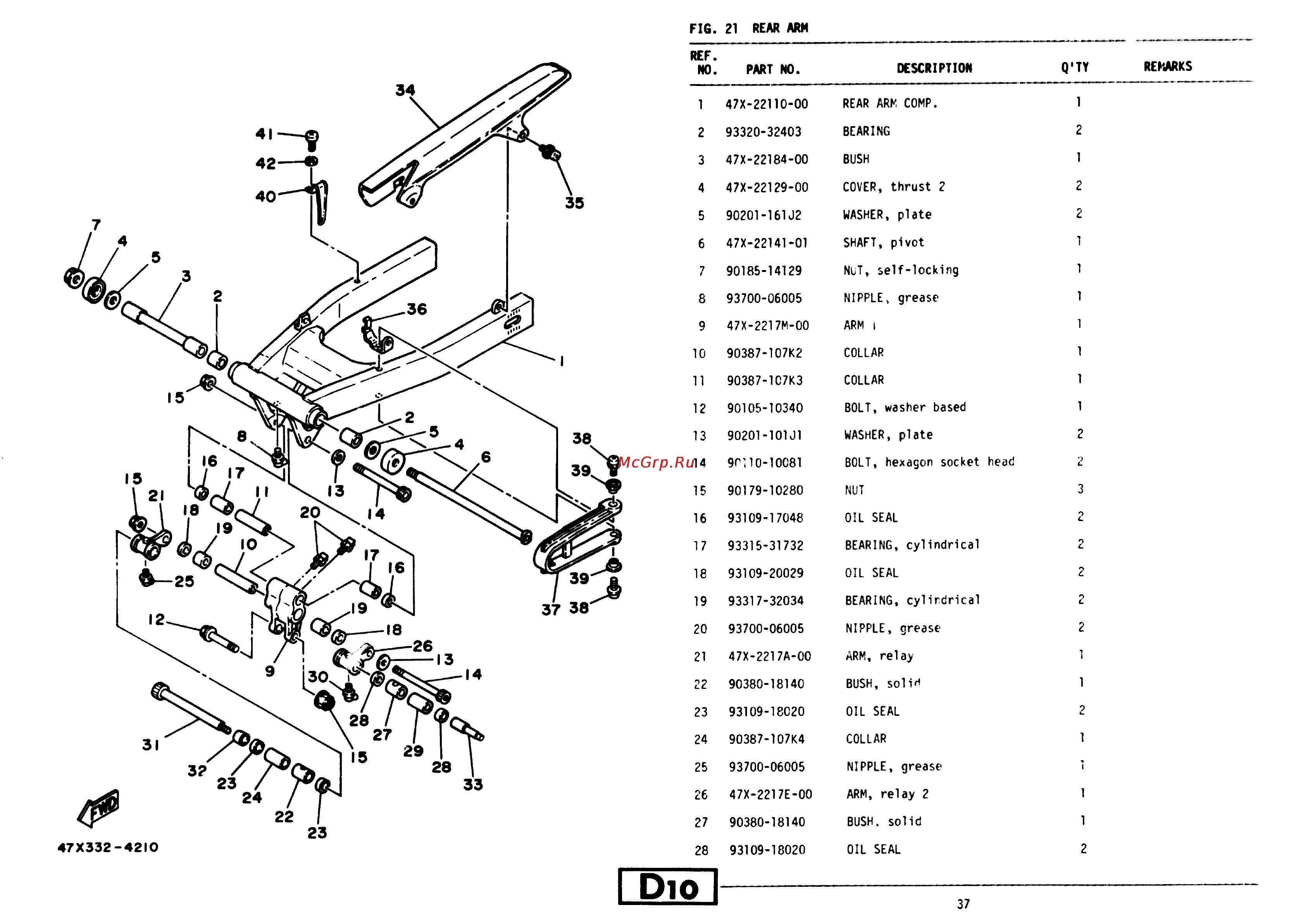

FIG 21 REAR ARM REF NO PART NO 47X332 4210 DESCRIPTION Q TY 1 47X 22110 00 REAR ARM COMP 1 2 93320 32403 BEARING 2 3 47X 22184 00 BUSH 1 4 47X 22129 00 COVER thrust 2 2 5 90201 161J2 WASHER plate 2 6 47X 22141 01 SHAFT pivot 1 7 90185 14129 NUT self locking 1 8 93700 06005 NIPPLE grease 1 9 47X 2217M OO ARM i 1 10 90387 107K2 COLLAR 1 11 90387 107K3 COLLAR 1 12 90105 10340 BOLT washer based 1 13 90201 101J1 WASHER plate 2 14 90110 10081 BOLT hexagon socket head 9 i 15 90179 10280 NUT 3 16 93109 17048 OIL SEAL 2 17 93315 31732 BEARING cylindrical 2 18 93109 20029 OIL SEAL 2 19 93317 32034 BEARING cylindrical 2 20 93700 06005 NIPPLE grease 2 21 47X 2217A 00 ARM relay 1 22 90380 18140 BUSH solid 1 23 93109 18020 OIL SEAL 2 24 90387 107K4 COLLAR 1 25 93700 06005 NIPPLE grease 1 26 47X 2217E 00 ARM relay 2 1 27 90380 18140 BUSH solid 1 28 93109 18020 OIL SEAL 2 Dio I 37 REMARKS
