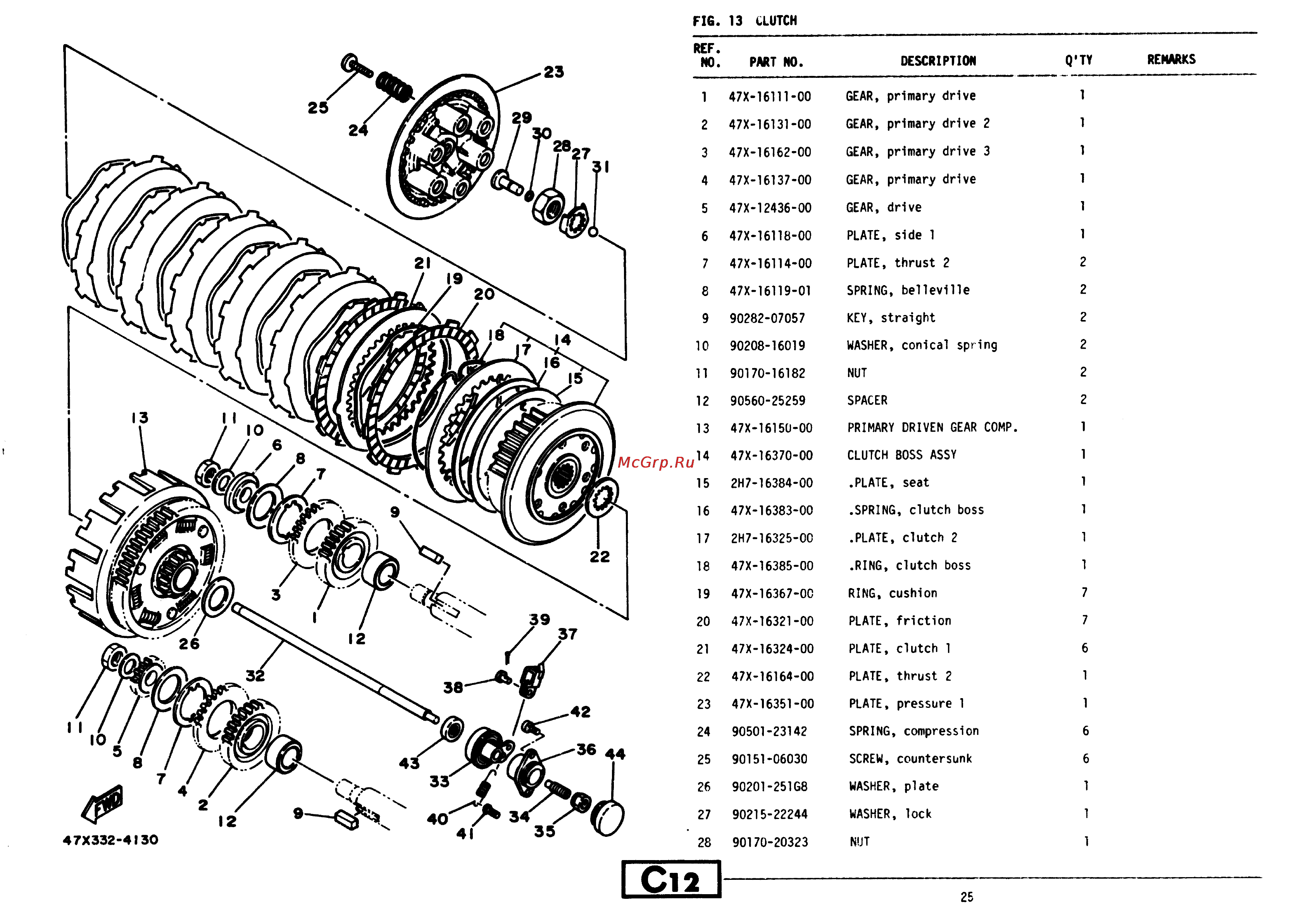

FIG 13 CLUTCH REF NO Cl 2 DESCRIPTION PART NO Q TY 1 47X 16111 00 GEAR primary drive 1 2 47X 16131 00 GEAR primary drive 2 1 3 47X 16162 00 GEAR primary drive 3 1 4 47X 16137 00 GEAR primary drive 1 5 47X 12436 00 GEAR drive 1 6 47X 16118 00 PLATE side 1 1 7 47X 16114 00 PLATE thrust 2 2 8 47X 16119 01 SPRING belleville 2 9 90282 07057 KEY straight 2 10 90208 16019 WASHER conical spring 2 11 90170 16182 NUT 2 12 90560 25259 SPACER 2 13 47X 1615Ü 00 PRIMARY DRIVEN GEAR COMP 1 14 47X 1637O OO CLUTCH BOSS ASSY 1 15 2H7 16384 00 PLATE seat 1 16 47X 16383 00 SPRING clutch boss 1 17 2H7 16325 00 PLATE clutch 2 1 18 47X 16385 00 RING clutch boss 1 19 47X 16367 00 RING cushion 7 20 47X 16321 OO PLATE friction 7 21 47X 16324 00 PLATE clutch 1 6 22 47X 16164 00 PLATE thrust 2 1 23 47X 16351 00 PLATE pressure 1 1 24 90501 23142 SPRING compression 6 25 90151 06030 SCREW countersunk 6 26 90201 251G8 WASHER plate 1 27 90215 22244 WASHER lock 1 28 90170 20323 NUT 1 25 REMARKS
