Konica Minolta bizhub 160f [251/302] Replacing the toner cartridge

When a message appears

bizhub 160f 8-7

Replacing the toner cartridge

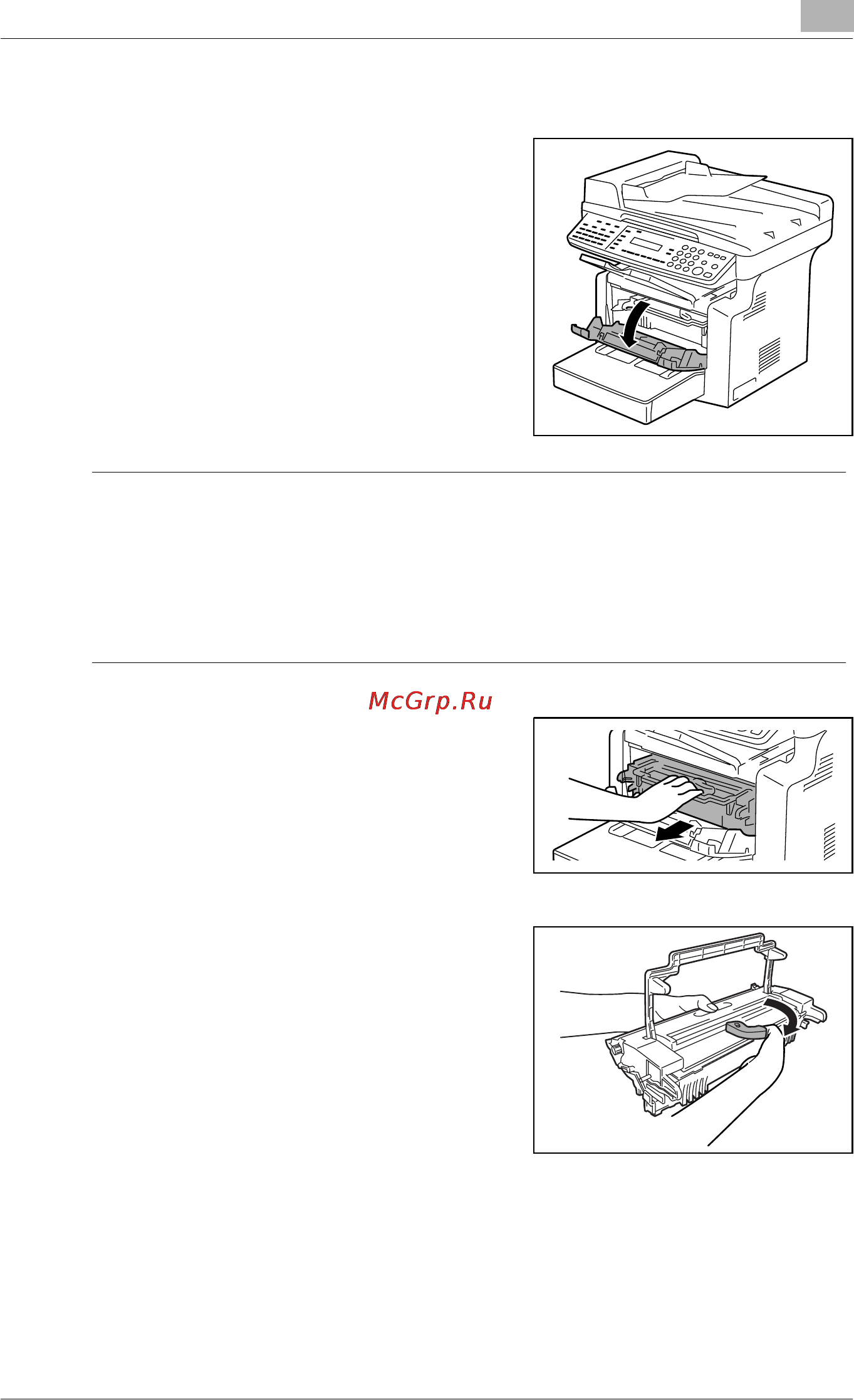

1 Open the front cover.

7 CAUTION

Decreased image quality.

% Since the imaging cartridge can easily be damaged by light, exposing

the cartridge to light for a long period of time will result in decreased

image quality.

2 Grab the handle of the imaging car-

tridge, and then pull it toward you to

remove the cartridge.

3 Move the lever in the direction of the

arrow to release the lock.
