Konica Minolta bizhub 160f [36/302] Laser safety label

Introduction

1-22 bizhub 160f

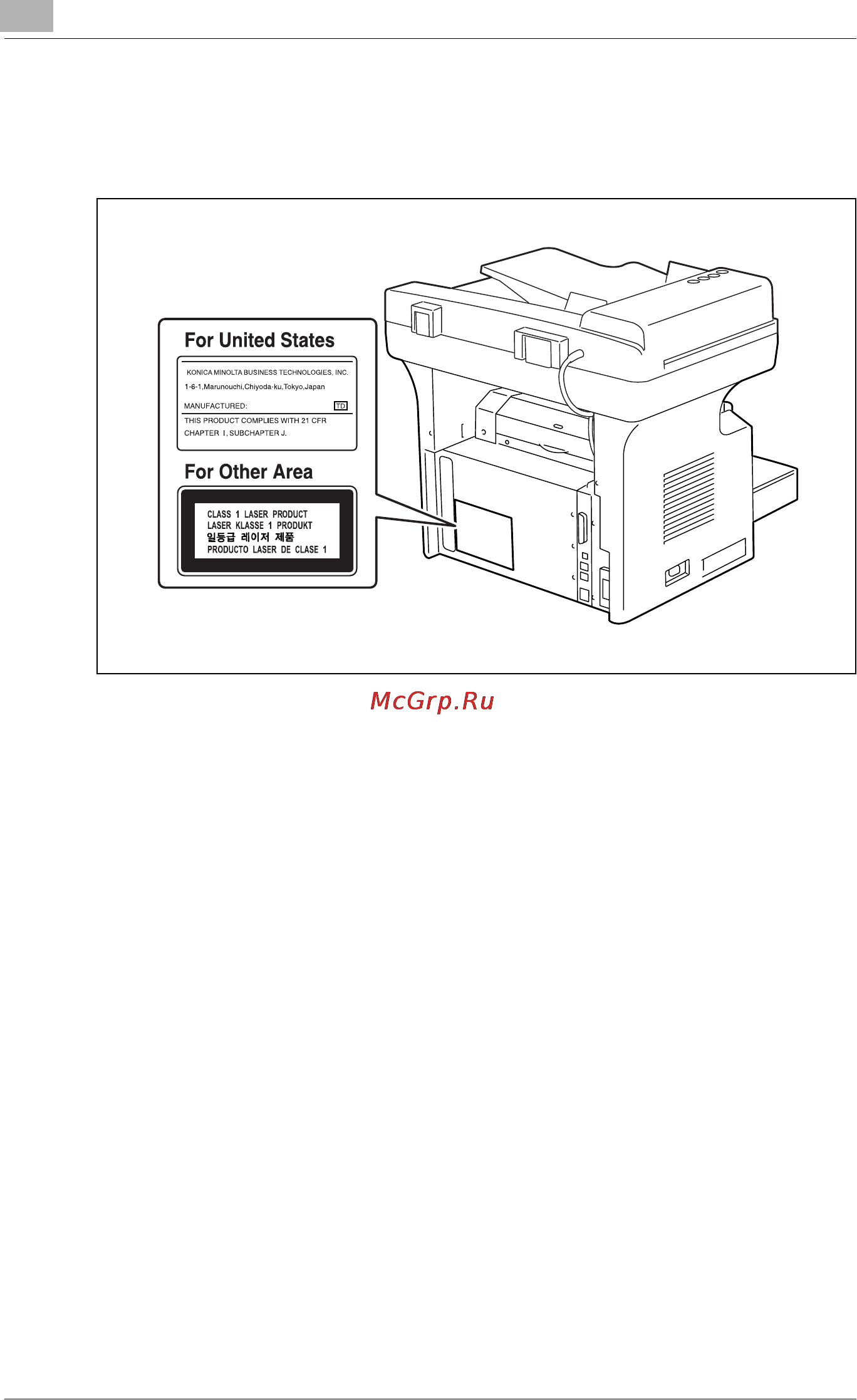

Laser safety label

A laser safety label is attached to the outside of the machine as shown be-

low.
